Customized 6 Surfaces Polished Beam Splitter With N-BK7 / H-K9L Material

Basic Information
Place of Origin: Wuhan,China
Brand Name: Wuhan Siwer Optics
Model Number: Beam Splitter
Minimum Order Quantity: 50 pieces
Price: 40-80 USD/piece
Packaging Details: 1.Tissue paper. 2.Plastic foam packaging film. 3.Hard carton box with quakeproof filler
Delivery Time: 4-6weeks
Payment Terms: T/T, Western Union
Supply Ability: 1000 pieces/month
Detail Information
Material: N-BK7 Or H-K9L Size Tolerance: +/-0.1mm
Chamfer: 0.2-0.5mm Surface Quality: 60/40
Surface Flatness: Lambda/2 In 25.4mm Angle Tolerance: 15 Arc Min
Standard Coating: Customized Size Range: 5-150mm
High Light:

optical glass triangular prism

,

optical wedge prism


Product Description

Customized 6 surfaces polished beam splitter

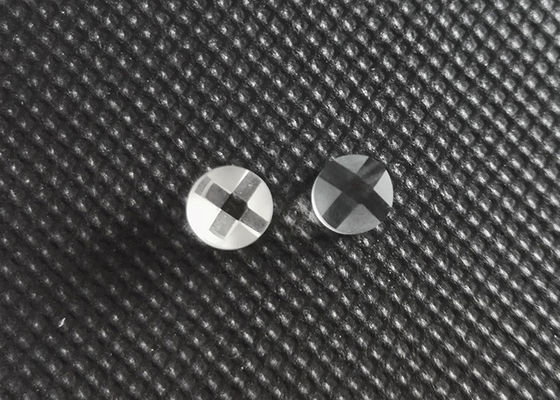

Customized 6 Surfaces Polished Beam Splitter With N-BK7 / H-K9L Material 0




Optical Properties of Beam Splitter

Material Optical glass
Diameter Tolerance +0.0/-0.1 mm
Surface Quality 40/20 Scratch-Dig
Surface Flatness
(Plano Side)
λ/2 at 633nm
Surface Irregularity
(Peak to Valley)
λ/4 at 633nm
Angle tolerance 3 arc min








Production Line

Customized 6 Surfaces Polished Beam Splitter With N-BK7 / H-K9L Material 1


Related Prisms

Customized 6 Surfaces Polished Beam Splitter With N-BK7 / H-K9L Material 2
