|Place of Origin:||Wuhan,China|
|Brand Name:||Wuhan Siwer Optics|
|Model Number:||Roof Prism|
|Minimum Order Quantity:||20 pieces|
|Packaging Details:||1.Tissue paper. 2.Plastic foam packaging film. 3.Hard carton box with quakeproof filler|
|Payment Terms:||T/T, Western Union|
|Supply Ability:||500 pieces/month|
|Material:||N-BK7 Or H-K9L||Size Tolerance:||+/-0.1mm|
|Surface Flatness:||Lambda/2 In 25.4mm||Roof Angle Tolerance:||5 Arc Seconds|
|Standard Coating:||Customized||Size Range:||5-150mm|
optical glass triangular prism,
optical wedge prism

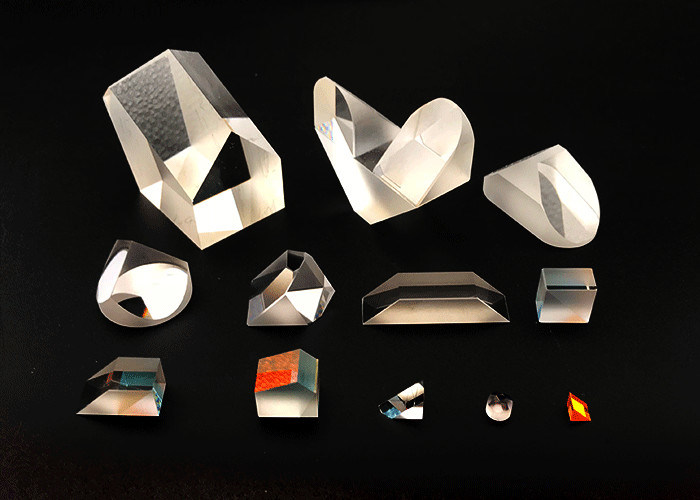

Roof prism usually requires a very high roof angle accuracy(generally 90 ° + / - 5 seconds), and the roof edge is not allowed to have cracks. When we process roof prism, we have very effective protection measures to ensure that there will be no cracks at the edge of the roof. Because of the high precision requirement of the roof angle, we will use a plane laser interferometer to measure the interference fringes produced by the reflected light of two roof surfaces, and calculate the roof angle according to the interference fringes and the refractive index of the material.
|Schmidt Roof Prism||Right Angle Roof Prism||Abbe Roof Prism|
|Material||Optical glass(N-BK7,Corning Glass,Fused Silica etc)|
|Dimension Tolerance||+0.0/-0.1 mm|
|Surface Quality||40/20 Scratch-Dig|
|λ/2 at 633nm|
(Peak to Valley)
|λ/4 at 633nm|
|Roof Angle tolerance||90deg+/-5 arc seconds|
|Perpendicularly||1 arc min|
What's the way of shipping?
We accept DHL, Fedex, TNT, UPS, SF, EMS etc. If you have your own express account, it's great.
How to pay?
(1) T/T, PayPal, West Union,etc
(2) Bank Fee: West Union-USD30.00(≤USD3000.00),
T/T-USD20.00+, PayPal-5%. Please consult the local bank.
What's the deliver time?
For inventory: the delivery time is around 5 workdays.
Customized products: the delivery time is 10 to 30 workdays. According to the quantity and precision.
Can I customize the products based on my need?
Yes, we can customize the material, specifications and optical coating for your optical components based on your needs. OEM is available.
