Caf2 Optica Viewport Windows Calcium Fluoride Crystal High Performance

Basic Information
Place of Origin: Wuhan,China
Brand Name: Wuhan Siwer Optics
Minimum Order Quantity: 5 pieces
Price: 5-98USD/piece
Packaging Details: 1.Tissue paper. 2.Plastic foam packaging film. 3.Hard carton box with quakeproof filler
Delivery Time: 3-5 weeks
Payment Terms: T/T, Western Union
Supply Ability: 1000 pieces/month
Detail Information
Material: Calcium Fluoride(CaF2) Size Tolerance: +/-0.1mm
Chamfer: 0.2-0.5mm Surface Quality: 60/40
Surface Flatness: Lambda/4 In 25.4mm Parallelism: 0.02mm
Standard Coating: Uncoated Or Customized Size Range: 3-120mm
Usage: UV And IR Optica Viewport Windows
High Light:

ir window

,

infrared system protectd window


Product Description

Calcium Fluoride Crystal High performance Caf2 optica viewport windows

Calcium fluoride shows good optical and thermo-mechanical properties. It is widely used as optical windows, lenses and prisms in 0.13μm~9.0μm. For its optical isotropy, low absorption and low refractive index. CaF2 has found unique advantages in high power laser and UV laser optics.



Calcium Fluoride crystal shows good optical and thermo-mechanical properties, can be used for optical windows, lenses, prisms within a wide range from 130nm to 9μm. It has optical properties of isotropy, low absorption and low refractive index, which made CaF2 gain the unique advantages in the application of high power lasers.

Scitlion is able to offer
CaF2 IR viewport Windows for Infrared Thermography at 8μm to 10μm
Various optics for IR & VUV application, using our CaF2 crystal materials
Good quality CaF2 crystal blank materials
OEM service for good quality CaF2 crystals
Orientation:<100>,<110>, <111>

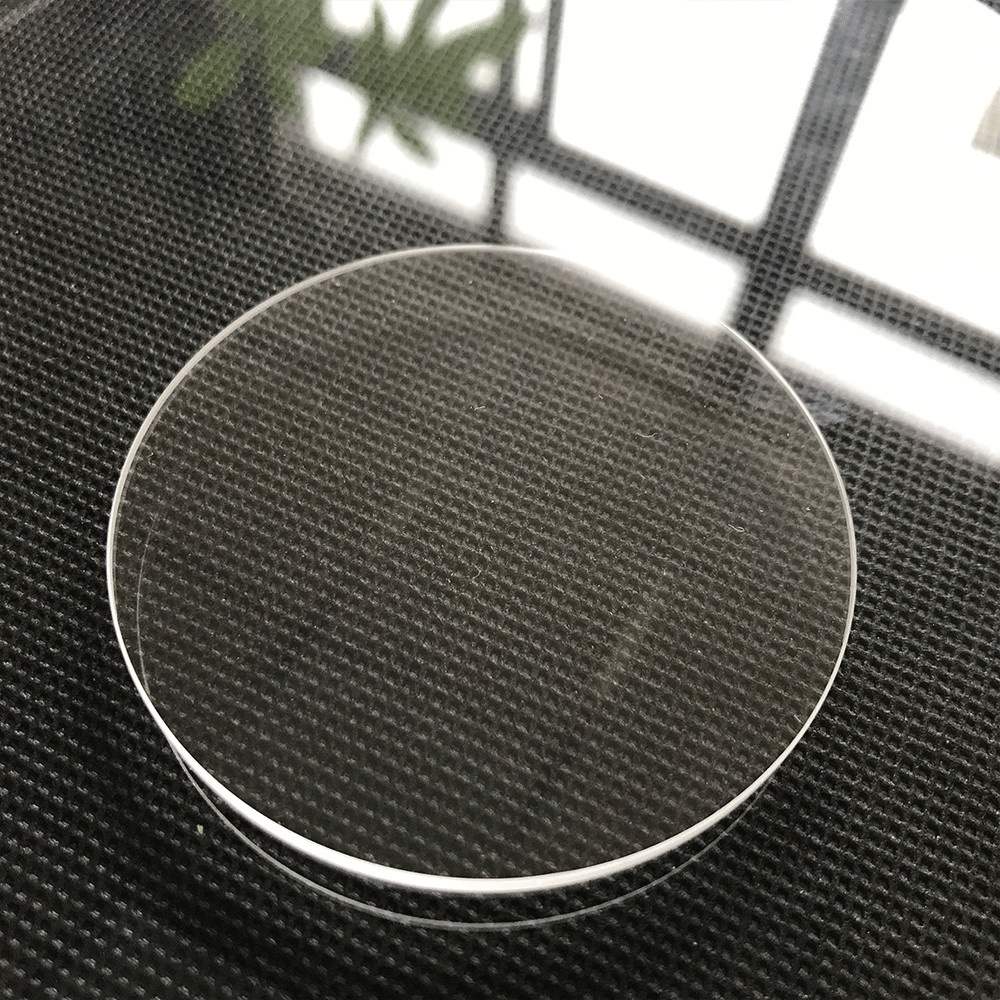

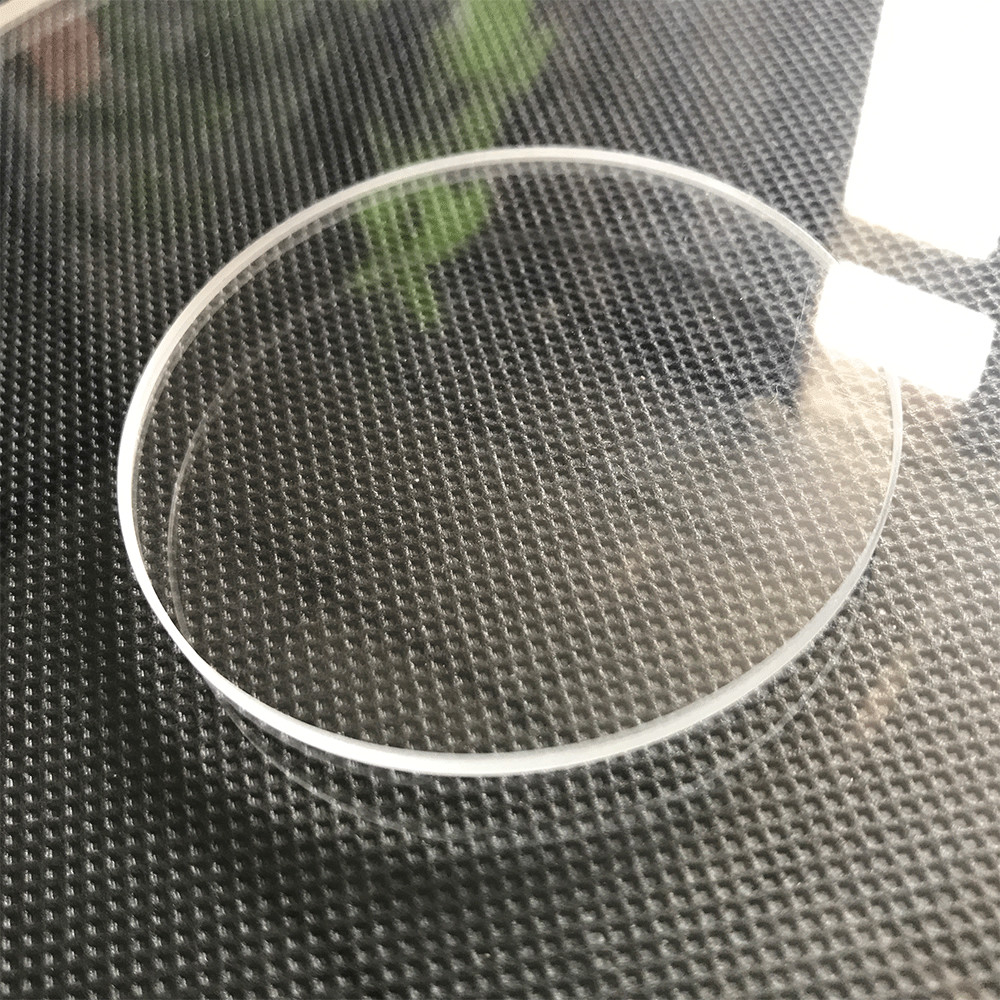

Caf2 Optica Viewport Windows Calcium Fluoride Crystal High Performance 0

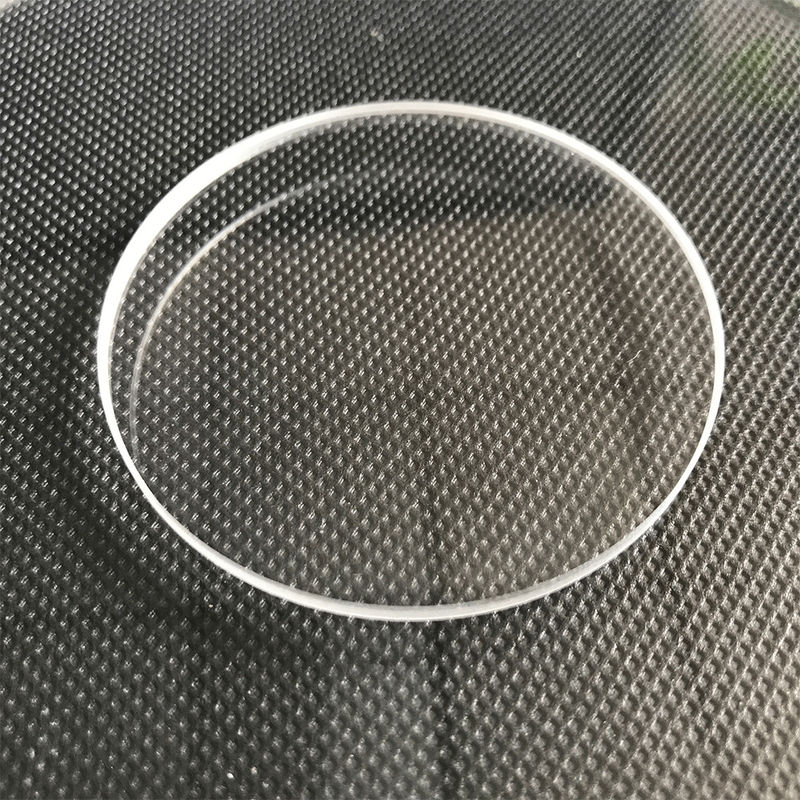

Caf2 Optica Viewport Windows Calcium Fluoride Crystal High Performance 1




Optical Properties of Sapphire Window

Material Calcium Fluoride
Diameter Tolerance +0.0/-0.1 mm
Thickness Tolerance ±0.1 mm
Parallelism 1 arc min
Surface Quality 60-40 Scratch-Dig
Surface Flatness
(Plano Side)
λ/2 at 633nm
Surface Irregularity
(Peak to Valley)
λ/2 at 633nm
Clear Aperture 90%




Calcium Fluoride properties

Chemical Formula CaF2
Crystal Class Cubic, cleaves [111] plane
Lattice Constant, Å 5.46
Density, g/cm3 (20 °C) 3.18
Molecular Weight 78.08
Reflection Loss 5.4% at 5 μm
Absorption Coefficient 7.8 x 10-4 cm-1 @ 2.7 μm
Dielectric Constant for 105 Hz 6.76
Melting Temperature, K 1630
Thermal Conductivity, W/(m K) at 273 K 10
Thermal Expansion, 1/K at 300 K 18.9 x 10-6
Specific Heat, cal/(g K) at 273 K 0.204
Debye Temperature, K 510
Young's Modulus, GPa 75.79
Rupture Modulus, GPa 0.0365
Shear Modulus, GPa 33.76
Bulk Modulus, GPa 83.03
Poisson's Ratio 0.28
Knoop Hardness, kg/mm2 178 [100], 160 [110]




Infrared Elements Selection Guide

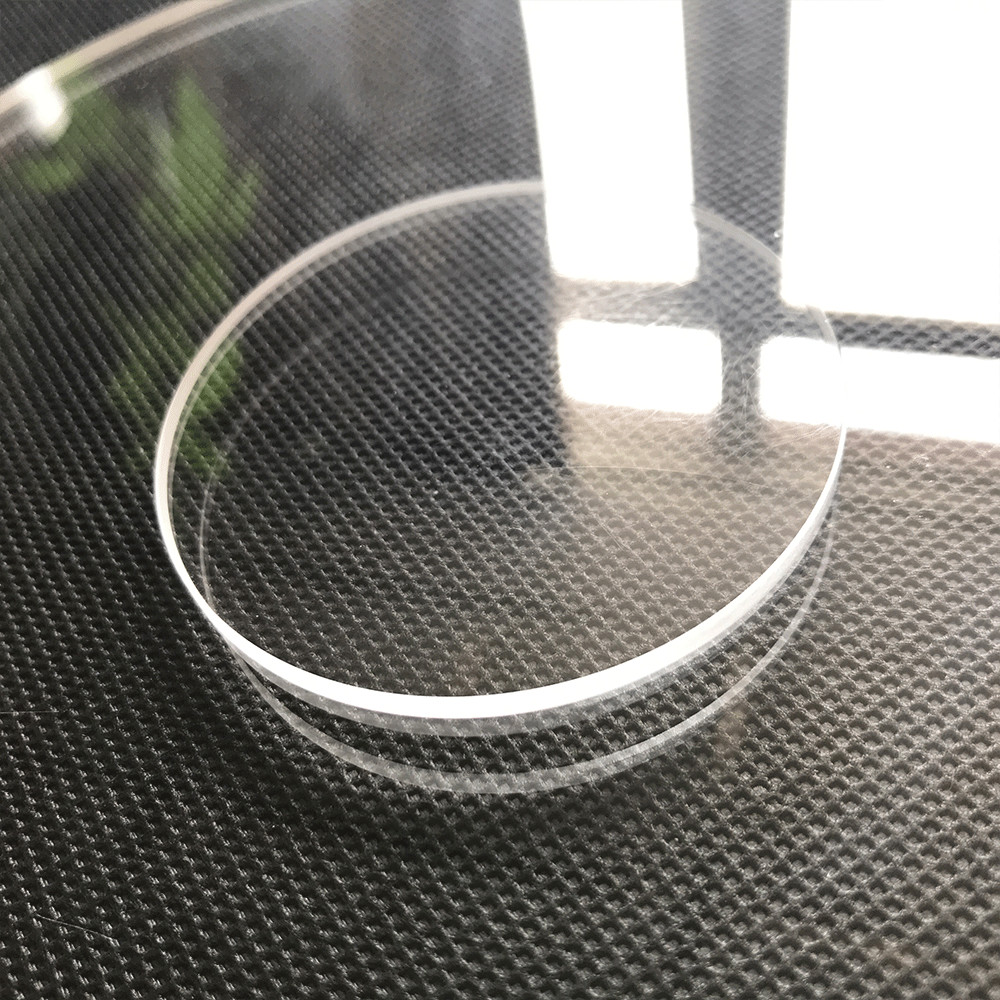

Caf2 Optica Viewport Windows Calcium Fluoride Crystal High Performance 2
Production process

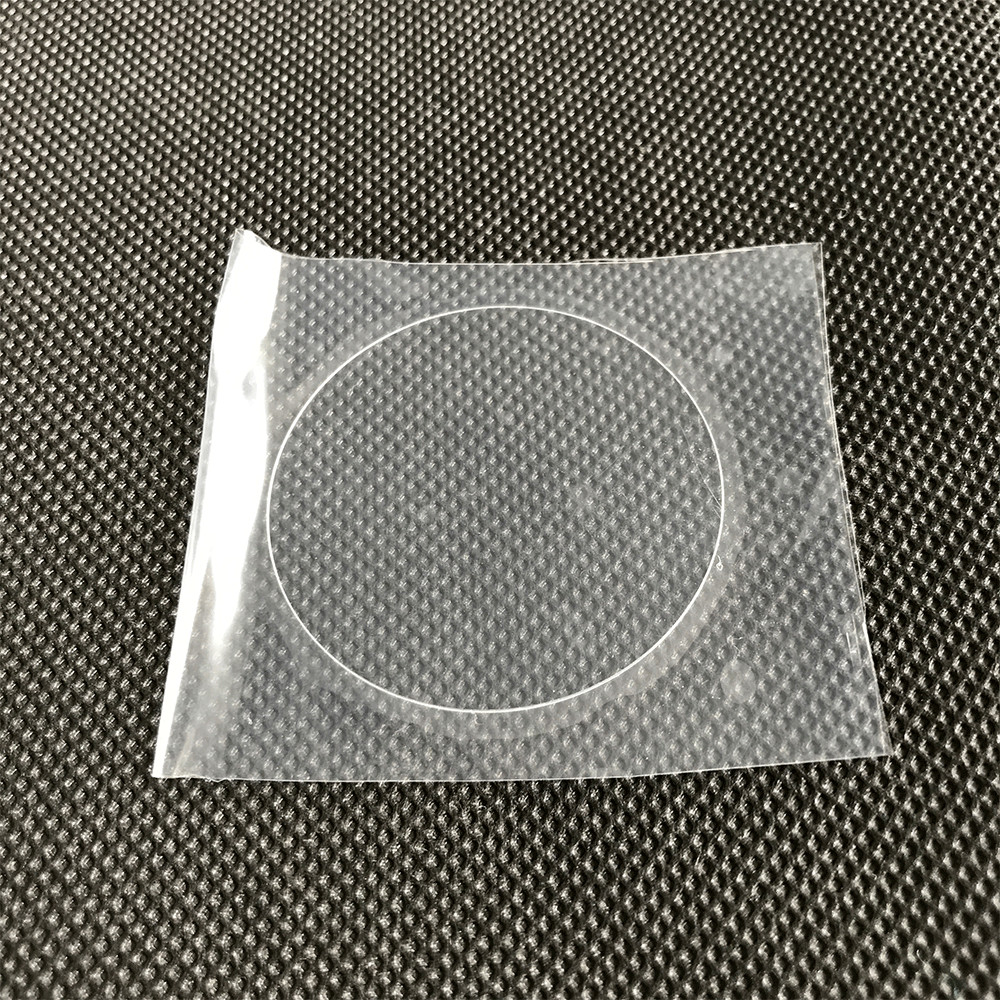

Caf2 Optica Viewport Windows Calcium Fluoride Crystal High Performance 3
