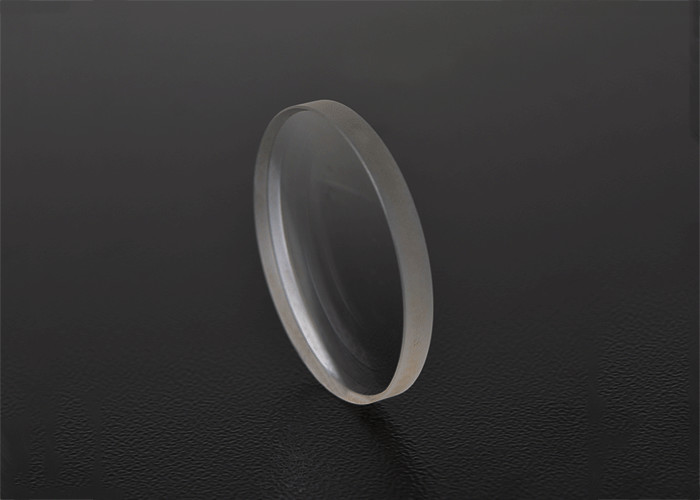

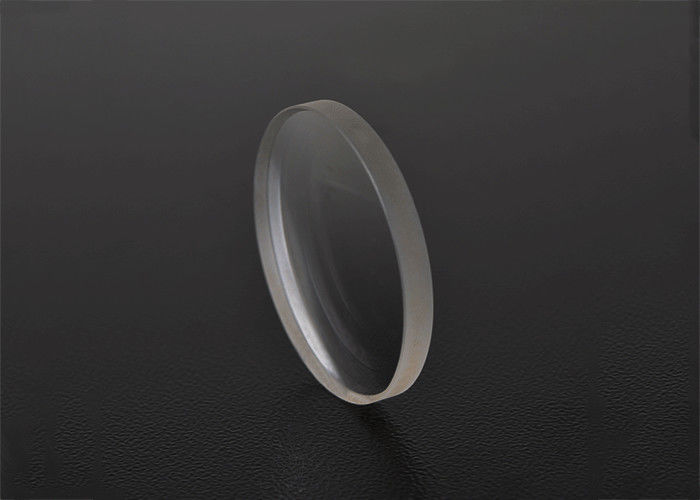

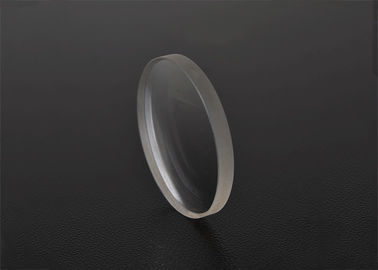

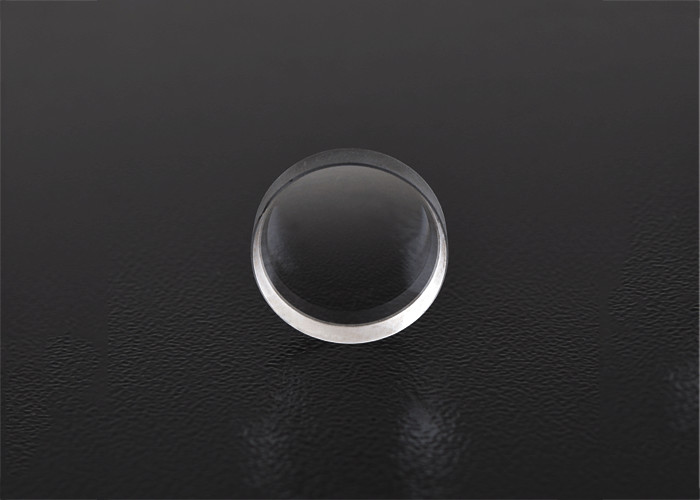

MgF2 Coated Plano-Concave (PCV) Lenses

Basic Information
Place of Origin: Wuhan,China
Brand Name: Wuhan Siwer Optics
Minimum Order Quantity: 10 pieces
Price: 1.8-20USD/piece
Packaging Details: 1.Tissue paper.plastic foam packaging film And hard carton box with quakeproof filler
Delivery Time: 4-5 weeks
Supply Ability: 5000 pieces/month
Detail Information
Material: Optical Glass,BK7,SF,etc. Type: Plano Concave
Diameter Range: 4-300mm Demension Tolerance: +/-0.1mm
Surface Quality: 40/20 Surface Accuracy: Lambda/4 In 25.4mm
Centration: 3 Arc Min Usage: Optical System
Coating: Single Layer MgF2
High Light:

pcv lens


concave meniscus lens

Product Description

MgF2 Coating


Damage threshold: 10J/cm2 532nm 10ns

MgF2 Coated Plano-Concave (PCV) Lenses 0




Production Line

MgF2 Coated Plano-Concave (PCV) Lenses 1

Optical Properties of Plano Concave Lens

Material Optical glass
AR Coating Range 400-1000nm or customized
Diameter Tolerance +0.0/-0.1 mm
Thickness Tolerance ±0.1 mm
Focal Length Tolerance ±2%
Surface Quality 40/20 Scratch-Dig
Surface Flatness
(Plano Side)
λ/2 at 633nm
Spherical Surface Powerc
(Convex Side)
1.5λ at 633nm
Surface Irregularity
(Peak to Valley)
λ/2 at 633nm
Centration <3 arcmin
Clear Aperture >Ø10.16 mm (Ø1/2" Lenses)
>Ø20.32 mm (Ø1" Lenses)
Design Wavelength 546nm
