| Place of Origin: | Wuhan,China |
|---|---|
| Brand Name: | Wuhan Siwer Optics |
| Minimum Order Quantity: | 2 pieces |
| Price: | 5-30USD/piece |
| Packaging Details: | 1.Tissue paper. 2.Plastic foam packaging film. 3.Hard carton box with quakeproof filler |
| Delivery Time: | 1-3 weeks |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 2000 pieces/month |
| Material: | Optical Glass | Size Tolerance: | +/-0.1mm |
|---|---|---|---|
| Chamfer: | 0.2-0.5mm | Surface Quality: | 60/40 |
| Surface Flatness: | Lambda/2 In 25.4mm | Parallelism: | 2 Arc Min |
| Size Range: | 2-70mm | Usage: | Optical System |
| High Light: | dichroic color filters,bandpass optical filter |
||

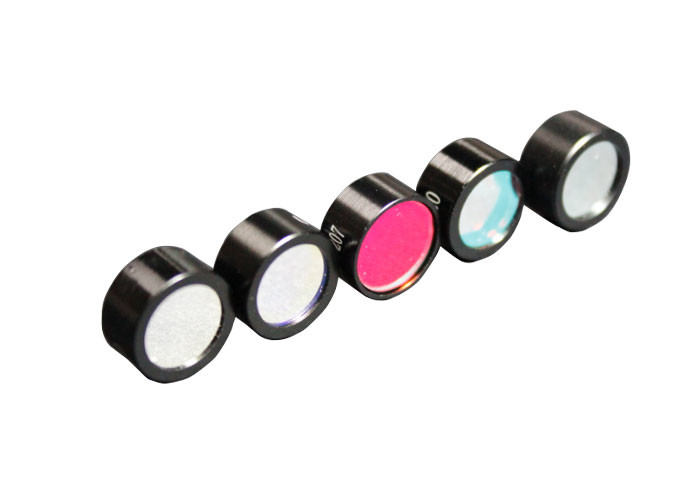

Flurescence filters are suitable for single and multiple microscopy application, including GFP FRET,photons,quantum dots,pinkel,contrast imaging and other technologies.
The high transmission of the fluorescence filters guarantees the brigh test possible images,while the deep blocking ensures no unwanted light gets to the detector. This ensures images will be brighter and will have much greater signal-to-noise.
Applications
Fluorescence microscopy
Fluorescence analyzer equipment
Biotechnology and analytical applications
Benefits
No wavelength shift
High transmission
Sharp slope
High contrast
Specifications
Diameter:12mm 8mm other sizes are available as request
Clear aperture>80%
Thickness:6mm(mounted)
Angle of incidence:0+/-5degree
Bloking:OD4-OD6(Customized)
Transmission of Fluorescence Band pass Filter
Partial stock filter list
| Item | Size(mm) | Unit price(USD) |
| 850nm Narrow band pass filter | Φ4.2*1.1 | 10 |
| Φ4.5*0.55 | 10 | |
| Φ6*2 | 10 | |
| Φ8*0.55 | 4 | |
| Φ8*1.1 | 4 | |
| Φ10.4*1 | 5 | |
| Φ14*1 | 10 | |
| Φ15*1.1 | 10 | |
| Φ17*0.7 | 14 | |
| Φ20*0.55 | 14 | |
| Φ23*1.1 | 21 | |
| Φ25*0.55 | 14 | |
| Φ27*1.2 | 26 | |
| Φ29*1.7 | 26 | |
| Φ34*1 | 51 | |
| Φ37.5*1.2 | 26 | |
| 4.5*4.5*0.55 | 3 | |
| 6.2*6.2*0.5 | 3 | |
| 7*2*1 | 10 | |
| 8.2*8.2*0.55 | 4 | |
| 8.5*2*1 | 10 | |
| 10*10*0.55 | 5 | |
| 10*7.5*0.55 | 8 | |
| 14*14*1.1 | 8 | |
| 14*7*1.1 | 8 | |
| 16.9*16.9*1 | 21 | |
| 17*17*0.55 | 21 | |
| 17.8*17.8*0.55 | 21 | |
| 15.5*8*1.1 | 21 | |
| 23.5*15.6*1.1 | 21 | |
| 27*20*0.6 | 26 | |
| 30.5*23*0.6 | 26 | |
| 35*2*1 | 21 | |
| 37*8.2*0.55 | 14 | |
| 57*9*1.8 | 21 | |
| 80*14*1 | 51 | |
| 86*86*0.55 | 103 | |
| 8.2*8.2*1 | 7 | |
| 14*14*1 | 14 | |
| Item | Size(mm) | Unit price(USD) |
| 450nm narrow band pass filter | Φ3.5*1 | 14 |
| Φ5*1.5 | 10 | |
| Φ6.5*1.7 | 14 | |
| Φ8*1.1 | 17 | |
| Φ11.5*1.5 | 21 | |
| Φ15*1.5 | 21 | |
| Φ25*1.5 | 21 | |
| Φ30*1.5 | 21 | |
| Φ35*1.4 | 48 | |
| Φ36*1.5 | 48 | |
| Φ39*1.6 | 69 | |
| Φ45*1 | 86 | |
| Φ50*1.8 | 103 | |
| Φ51*1.5 | 103 | |
| 10*5*1.65 | 17 | |
| 14*14*1.1 | 21 | |
| 14*7.5*1.1 | 21 | |
| 14*8.1*1.1 | 21 | |
| 16.5*16.5*1.1 | 21 | |
| 18*18*1.7 | 21 | |
| 19.5*16.8*1.5 | 21 | |
| 30*5*1.1 | 21 | |
| 38*20*1.1 | 34 | |
| 39*23*2.2 | 48 | |
| Item | Size(mm) | Unit price(USD) |
| 625-665nm band pass filter | 4.8*2.6*1 | 10 |
| 6*4.6*1 | 3 | |
| 5*5*1.2 | 10 | |
| 6.5*6.5*1 | 3 | |
| 9*9*1 | 3 | |
| 10*10*1 | 10 | |
| 6*6*1 | 3 | |
| 9*9*1 | 3 | |
| 16*16*1.7 | 14 | |
| 16.5*16.5*1.1 | 21 | |
| 25*14*1.1 | 21 | |
| 30*30*1.7 | 21 | |
| Φ6*1 | 3 | |
| Φ8*1 | 3 | |
| Φ12*1.1 | 12 | |
| Φ16*1.1 | 12 | |
| Φ20*1.1 | 12 | |
| Φ24*1 | 14 | |
| Φ25*1.1 | 14 | |
| Φ26*1.1 | 14 | |
| Φ29*1.2 | 14 | |
| Φ30*1.1 | 14 | |
| Φ39*1.1 | 34 | |
| 600-750nm band pass filter | Φ21.5*2.3mm | 21 |
| Φ27.5*2.3mm | 21 | |
| 600-480nm band pass filter | 7.65*7.65*0.7mm | 14 |
| 420nm-620nm&850nm band pass filter | Φ8*0.55mm | 3 |
| 10*10*0.55mm | 4 | |
| 30*30*1.1mm | 7 | |
| 697nm narrow band pass filter | Φ20*1.75mm | 26 |
| 400-950nm band pass filter | 40*10*1.1mm | 21 |
| 820-1100nm band pass filter | 40*10*1.6mm | 21 |
| 970nm narrow bandpass filter | Φ19*0.7mm | 21 |
| Item | Size(mm) | Unit price(USD) |
| 520nm narrow bandpass filter | Φ14*1.1mm | 21 |
| Φ16.5*1.6mm | 21 | |
| Φ24*1.1mm | 21 | |
| Φ25*1.7mm | 21 | |
| Φ30*1.1mm | 26 | |
| Φ39*1.1mm | 71 | |
| 8*8*1.1mm | 18 | |
| 20*20*1.2mm | 21 | |
| Item | Size(mm) | Unit price(USD) |
| 689-725nm bandpass filter | Φ39*1.8mm | 49 |
| 563nm narrow bandpass filter | 80*20*1mm | 49 |
| 680-760 bandpass filter | Φ29.5*2.2mm | 21 |
| Φ12*1.8mm | 18 | |
| Φ7*2.3mm | 14 | |
| 80*8.5*1.7mm | 26 | |
| Item | Size(mm) | Unit price(USD) |
| 760-850nm bandpass filter | Φ8*1.2mm | 14 |
| 14*14*1.1 | 21 | |
| Item | Size(mm) | Unit price(USD) |
| 940nm narrow bandpass filter | Φ8*0.7mm | 7 |
| Φ10*0.55mm | 14 | |
| Φ12*1.1mm | 14 | |
| Φ15*1mm | 21 | |
| Φ22*1.1mm | 21 | |
| Φ25*1.1mm | 26 | |
| Φ28*1.1mm | 26 | |
| Φ36*1.3mm | 71 | |
| Φ39*1.5mm | 71 | |
| 10*10*0.7mm | 7 | |
| 14*6*0.6mm | 18 | |
| 14*14*0.6mm | 21 | |
| 500-550nm bandpass filter | 4.8*2.6*0.7mm | 7 |
| 6*6*1.1mm | 14 | |
| 8*8*1.65mm | 14 | |
| 11.3*1.6*1.55mm | 14 | |
| 70*20*2.5mm | 35 | |
| Φ20*2mm | 21 | |
| Φ27*1.45mm | 21 | |
| Φ36*2.45mm | 26 | |
| 450-1100nm longpass filter | Φ25*1.1mm | 21 |
| Φ35*1.3mm | 49 | |
| 420-480nm bandpass filter | 6*6*1.7mm | 14 |
| 18*18*1.6mm | 18 | |
| Φ30*1.46mm | 21 | |
| 80*39*2.3mm | 71 | |
| 80*10*1.65mm | 18 | |
| Φ8*1.7mm | 14 | |
| 10*10*2mm | 18 | |
| Φ12.5*1.5mm | 18 | |
| Φ35*1.6mm | 35 |
