45 Degree Full Fan Angle Laser Line Generator Lens / Powell Lens For Alignment

Basic Information
Place of Origin: Wuhan,China
Brand Name: Wuhan Precision Optical Components Inc
Minimum Order Quantity: 5 pieces
Price: 20-35USD/piece
Packaging Details: 1.Tissue paper. 2.Plastic foam packaging film. 3.Hard carton box with quakeproof filler
Delivery Time: 4-6 weeks
Payment Terms: T/T, Western Union
Supply Ability: 20000 pieces/month
Detail Information
Material: Optical Glass Size Tolerance: +/-0.1mm
Chamfer: 0.2-0.5mm Surface Quality: 40/20
Surface Flatness: Lambda/4 In 25.4mm Standard Coating: Single Wavelength Antireflective Coating
Angle Range: 30-120deg Usage: Laser
High Light:

large plano convex lens

,

pcx lens


Product Description

Laser Line Generator Lens(Powell lens)

  • Ideal for Alignment and Machine Vision Applications
  • Multiple Fan Angles Available
  • Creates Uniform, Straight Line

Optimized for a 0.8mm diameter laser beam input, our Powell Lenses, also known as Laser Line Generator Lenses, convert laser beams into uniform, straight lines. Unlike cylindrical lenses, which generate Gaussian beam profiles with hot-spot center points and fading edges, Powell Lenses provide an even distribution of energy along the length of the entire line.

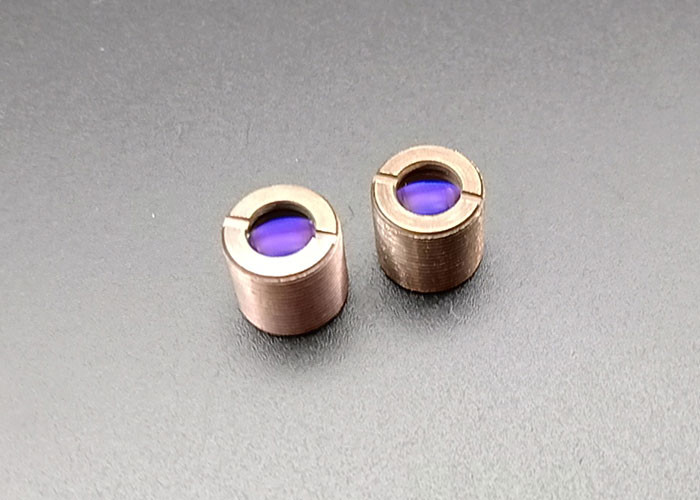

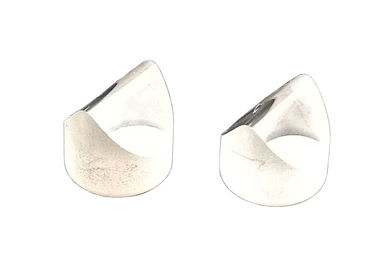

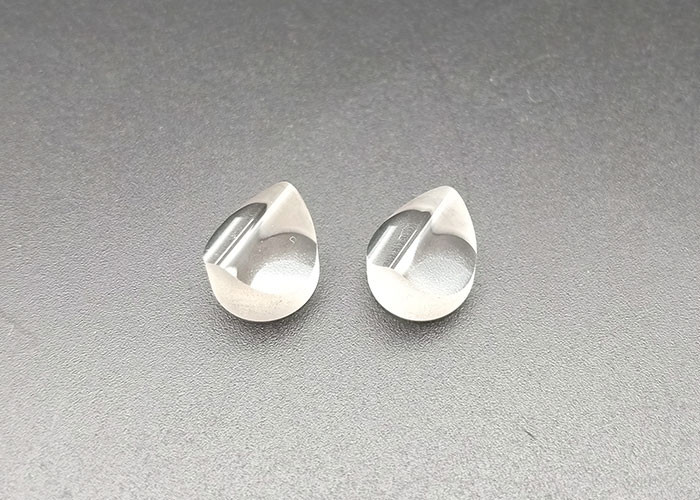

45 Degree Full Fan Angle Laser Line Generator Lens / Powell Lens For Alignment 0 45 Degree Full Fan Angle Laser Line Generator Lens / Powell Lens For Alignment 1 45 Degree Full Fan Angle Laser Line Generator Lens / Powell Lens For Alignment 2





Production Line

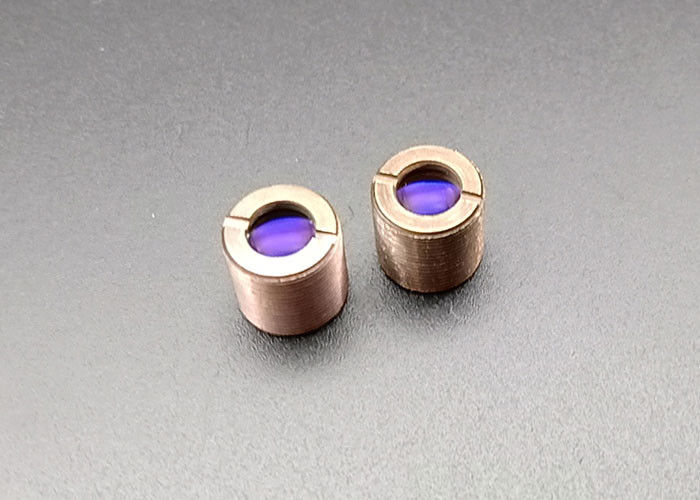

45 Degree Full Fan Angle Laser Line Generator Lens / Powell Lens For Alignment 3
