| Place of Origin: | Wuhan,China |
|---|---|
| Brand Name: | Wuhan Siwer Optics |
| Minimum Order Quantity: | 10 pieces |
| Price: | 2-100USD/piece |
| Packaging Details: | 1.Tissue paper. 2.Plastic foam packaging film. 3.Hard carton box with quakeproof filler |
| Delivery Time: | 4-6 weeks |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000 pieces/month |
| Material: | Optical Glass,BK7,SF,etc. | Size Tolerance: | +/-0.1mm |
|---|---|---|---|
| Chamfer: | 0.2-0.5mm | Surface Quality: | 40/20 |
| Surface Flatness: | Lambda/4 In 25.4mm | Centration: | 3 Arc Min |
| Standard Coating: | AR@400-700nm | Size Range: | 4-300mm |
| Usage: | Optical System | ||
| High Light: | custom optical lens,double convex mirror |
||

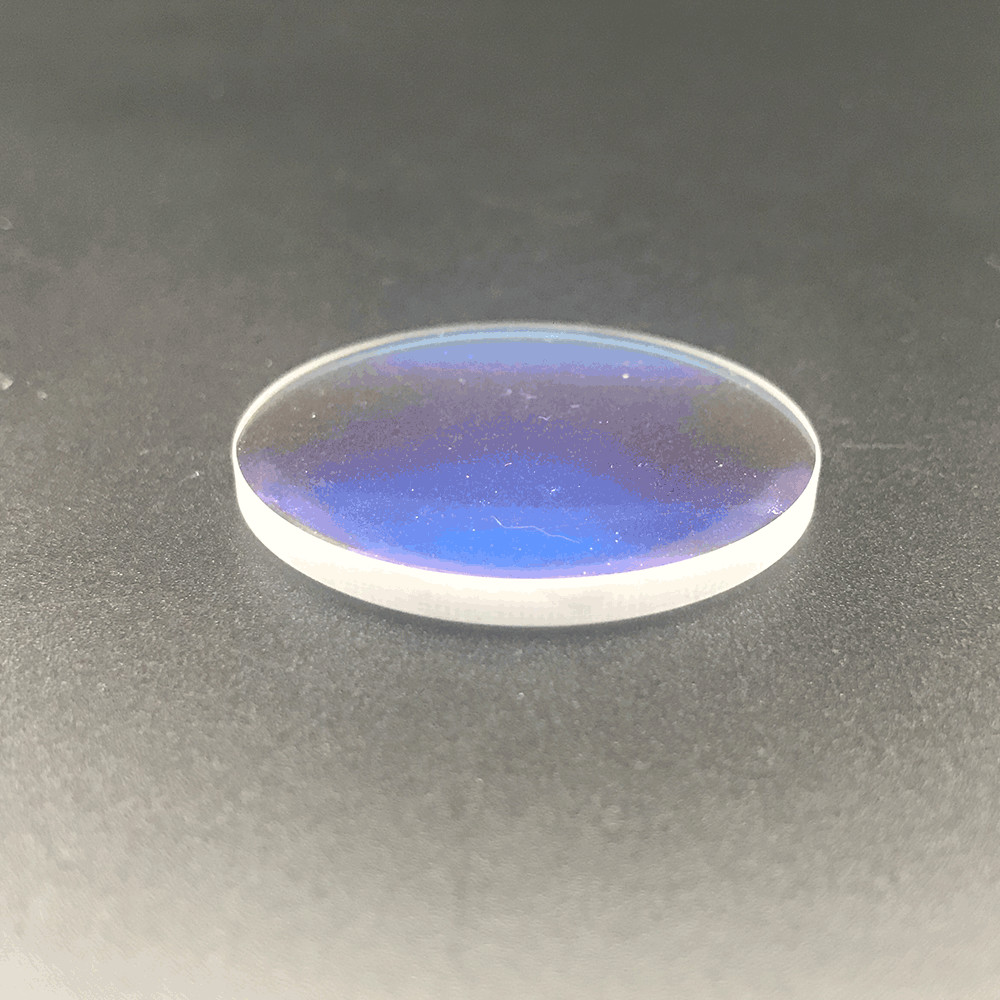

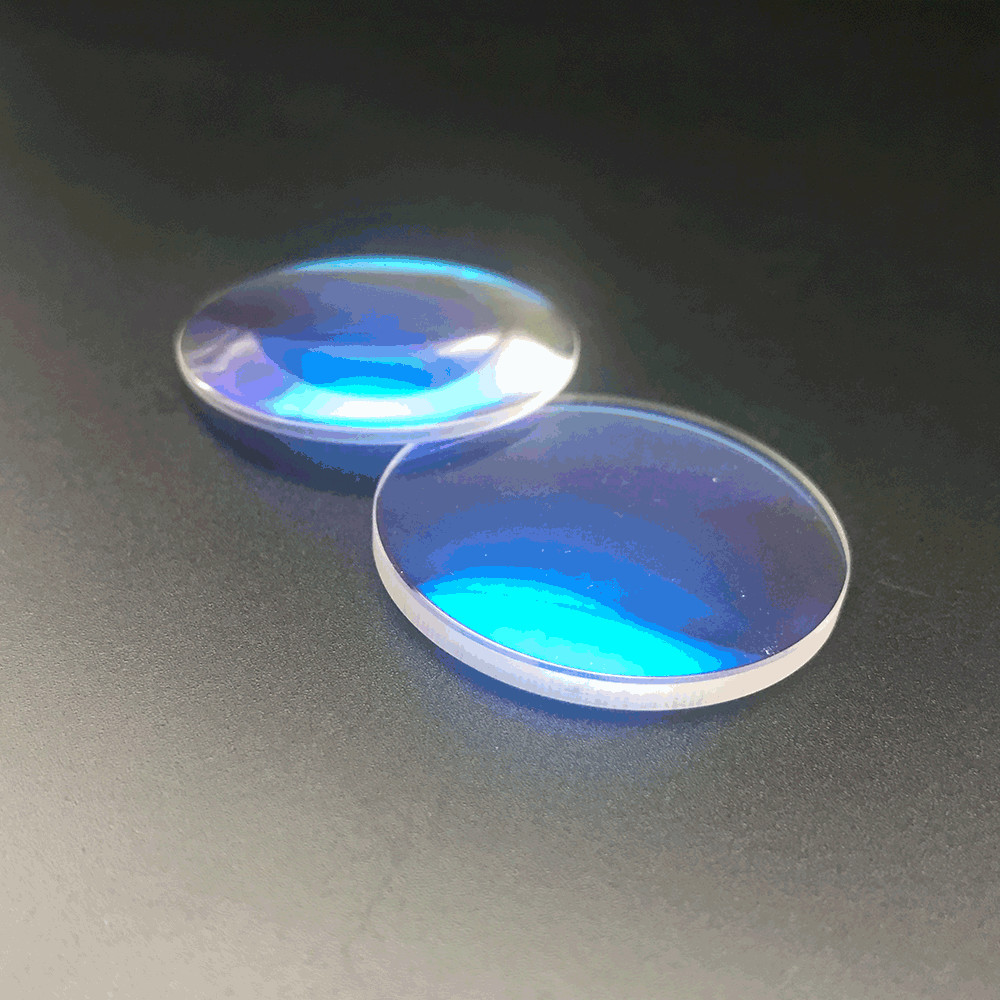

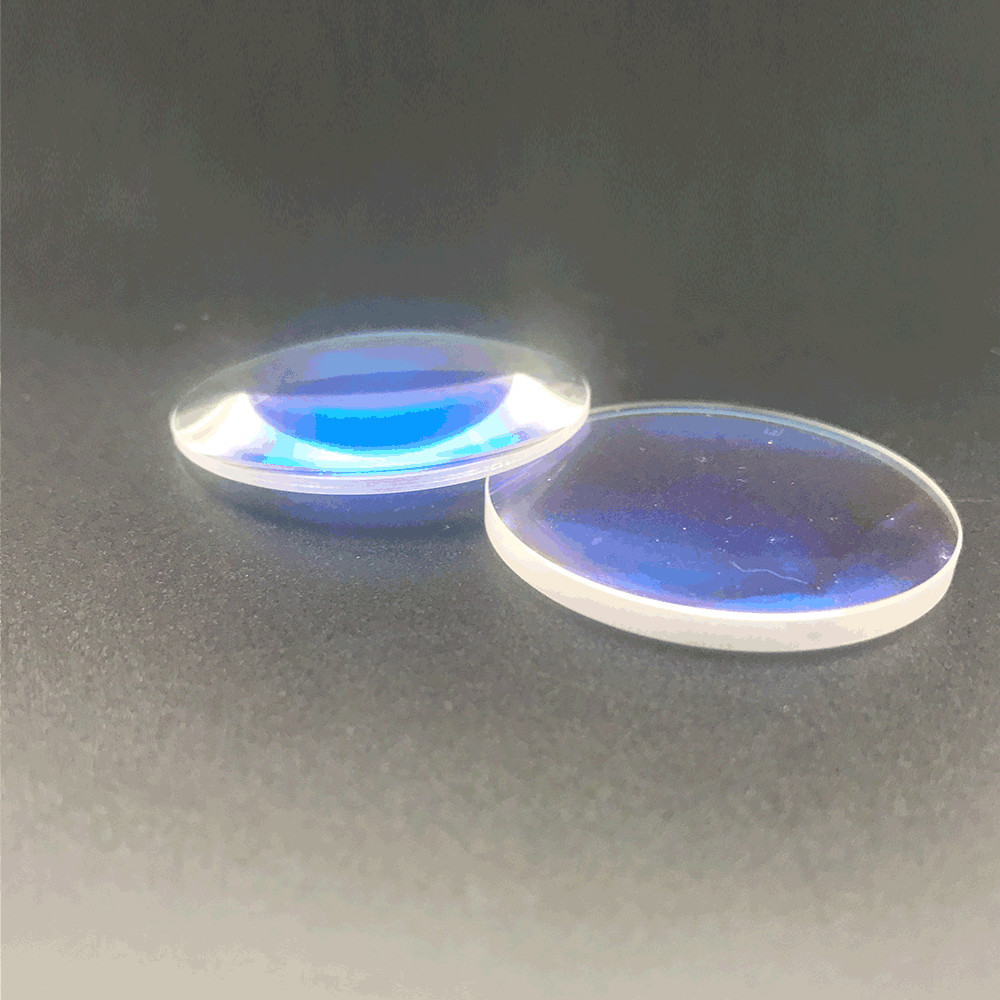

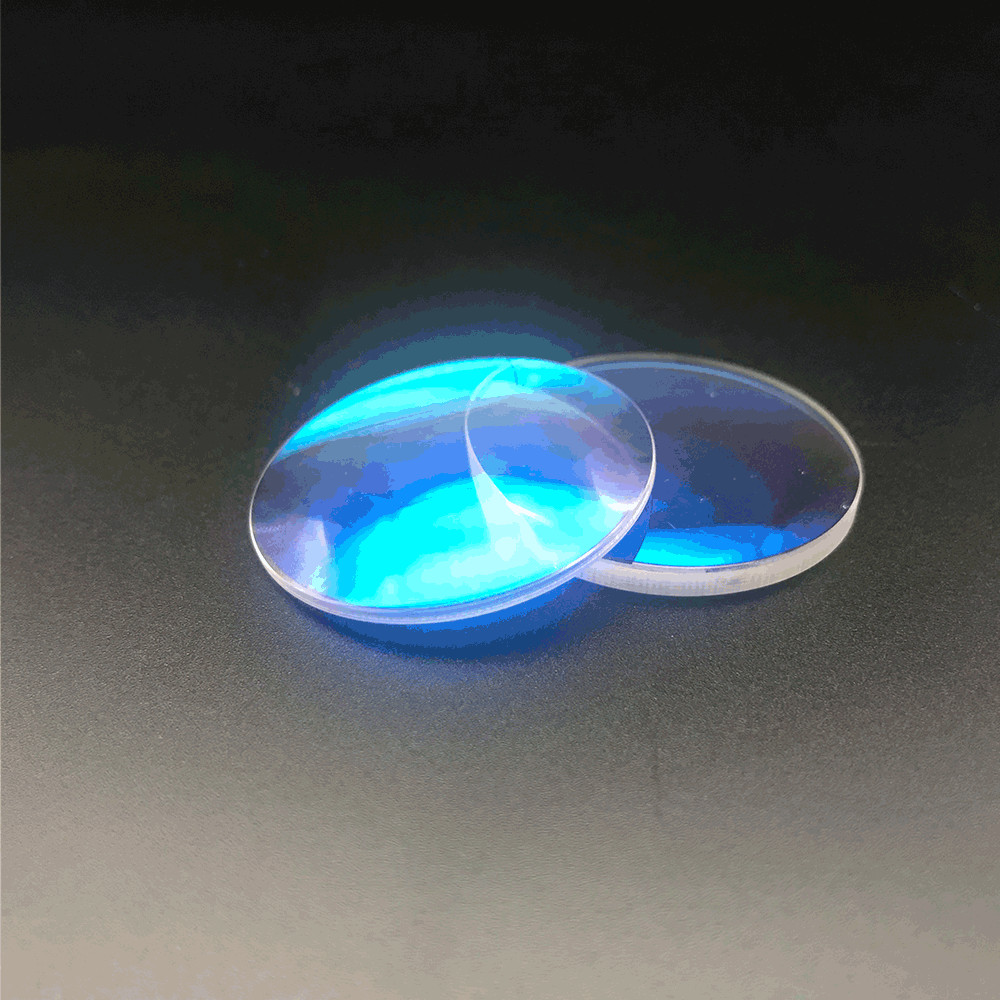

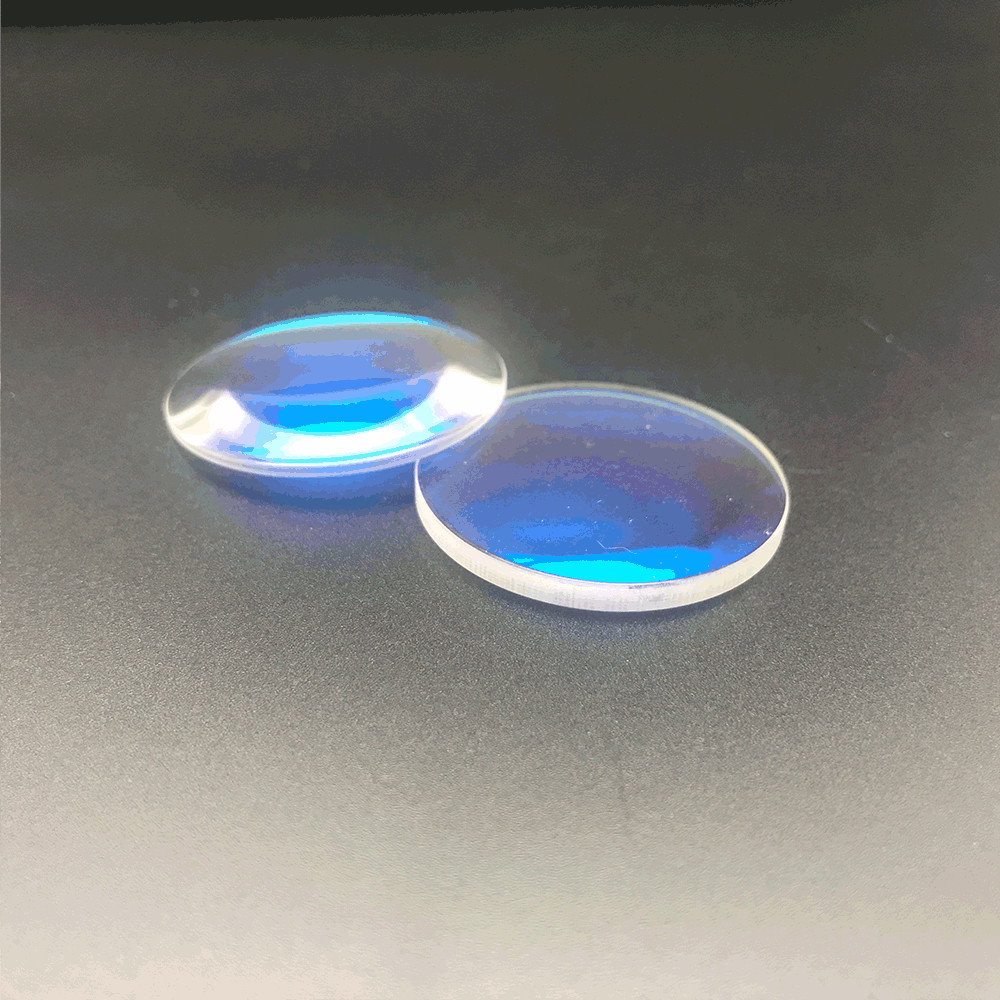

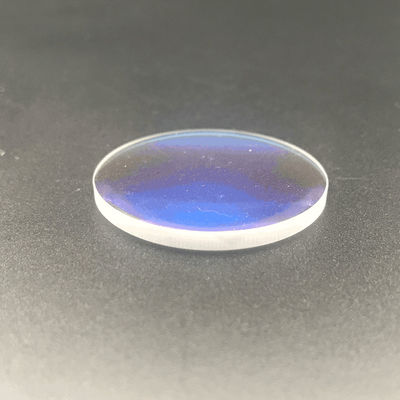

Double-Convex Lenses are used in image relay applications, or for imaging objects at close conjugates. Double-Convex Lenses have positive focal lengths, along with two convex surfaces with equal radii. Aberrations will increase as the conjugate ratios increase. DCX Lenses are used in a range of industries or applications.
Optical AR Coatings
a) Uncoated,The surface reflectivity of uncoated visible lenses(Refractive index＝1.5) is about 4%.
Click on the link to see how to calculate reflectivity
b) AR/AR@400-700nm,Tavg>99.4%
c) AR/AR@450-650nm,Tavg>99.6%
d) AR/AR@400-1000nm,Tavg>98.5%
e) We can also customize high damage threshold antireflective coatings
| Material | Optical glass |
| AR Coating Range | 400-700nm or customized |
| Reflectance over AR Coating Range @ 0° AOI |
Ravg<0.5% |
| Diameter Tolerance | +0.0/-0.1 mm |
| Thickness Tolerance | ±0.1 mm |
| Focal Length Tolerance | ±2% |
| Surface Quality | 40/20 Scratch-Dig |
| Surface Flatness (Plano Side) |
λ/2 at 633nm |
| Spherical Surface Powerc (Convex Side) |
1.5λ at 633nm |
| Surface Irregularity (Peak to Valley) |
λ/2 at 633nm |
| Centration | <3 arcmin |
| Clear Aperture | >Ø10.16 mm (Ø1/2" Lenses) >Ø20.32 mm (Ø1" Lenses) |
| Design Wavelength | 546nm |
What's the way of shipping?
We accept DHL, Fedex, TNT, UPS, SF, EMS etc. If you have your own express account, it's great.
How to pay?
(1) T/T, PayPal, West Union,etc
(2) Bank Fee: West Union-USD30.00(≤USD3000.00),
T/T-USD20.00+, PayPal-5%. Please consult the local bank.
What's the deliver time?
For inventory: the delivery time is around 5 workdays.
Customized products: the delivery time is 10 to 30 workdays. According to the quantity and precision.
Can I customize the products based on my need?
Yes, we can customize the material, specifications and optical coating for your optical components based on your needs. OEM is available.
