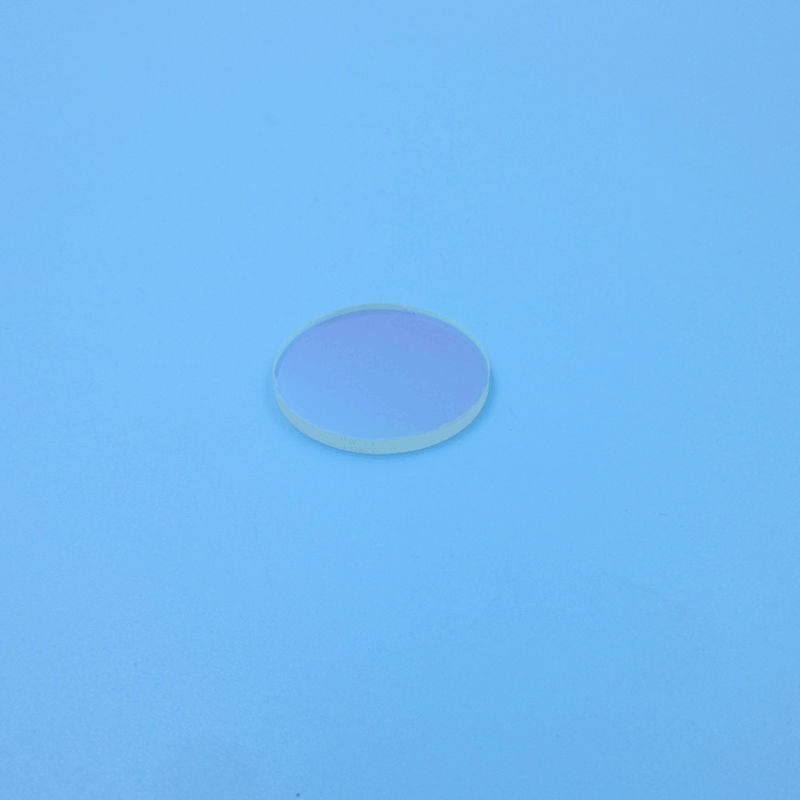

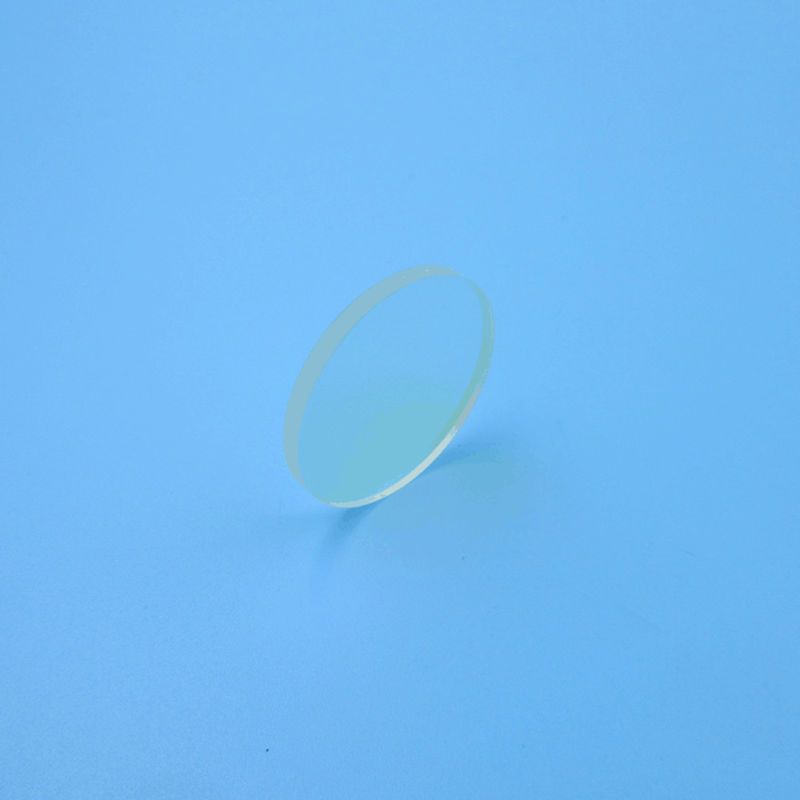

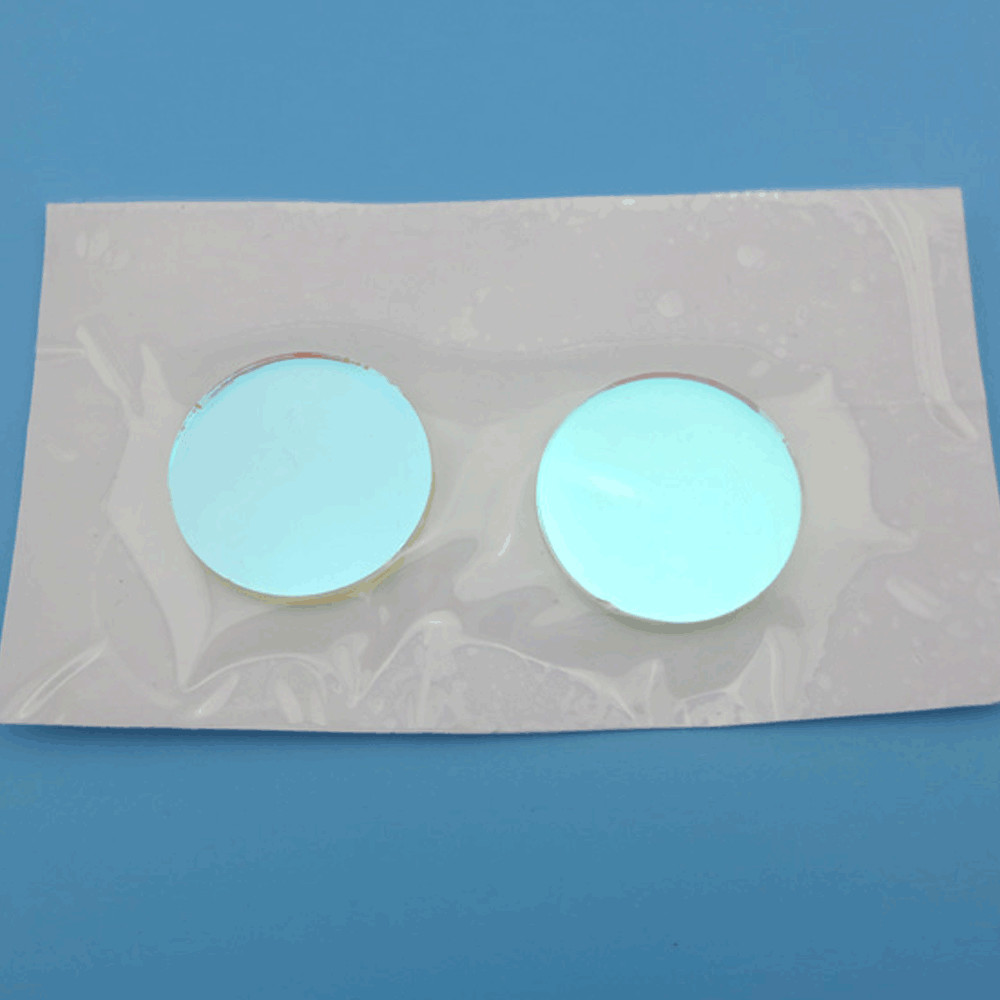

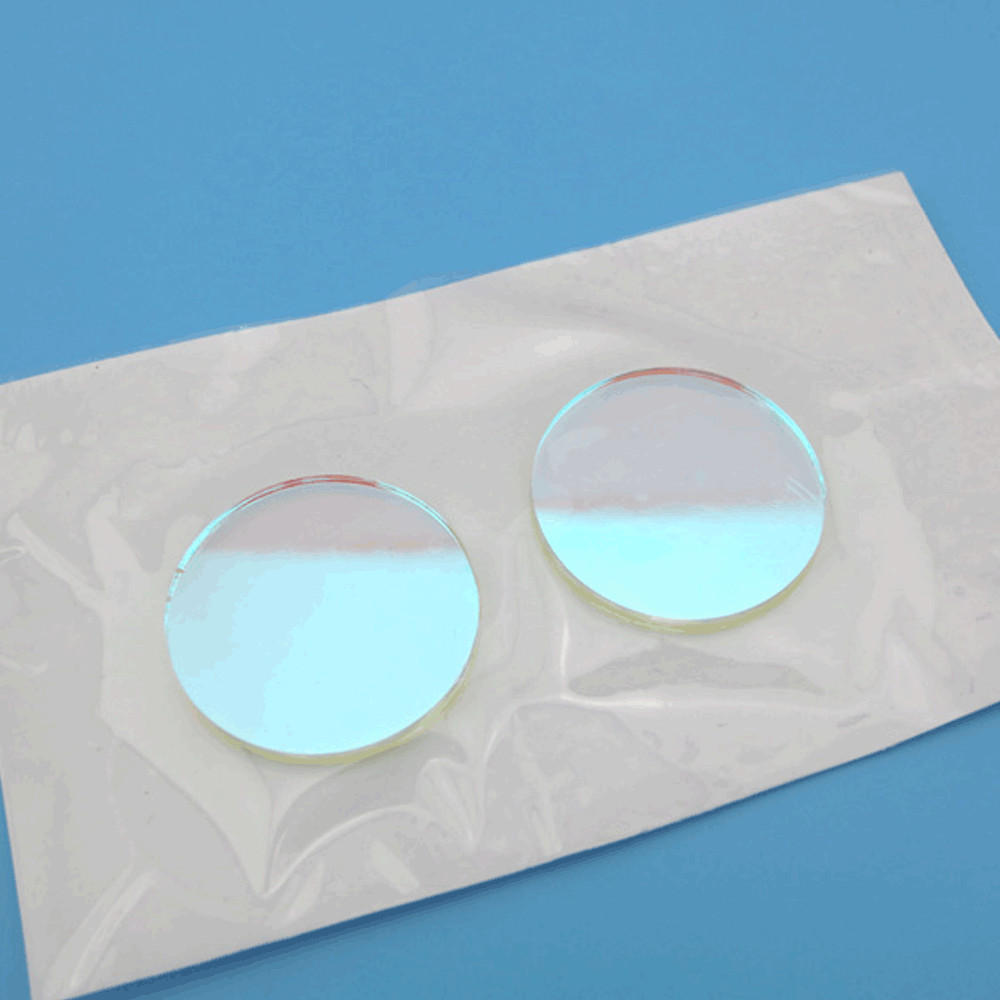

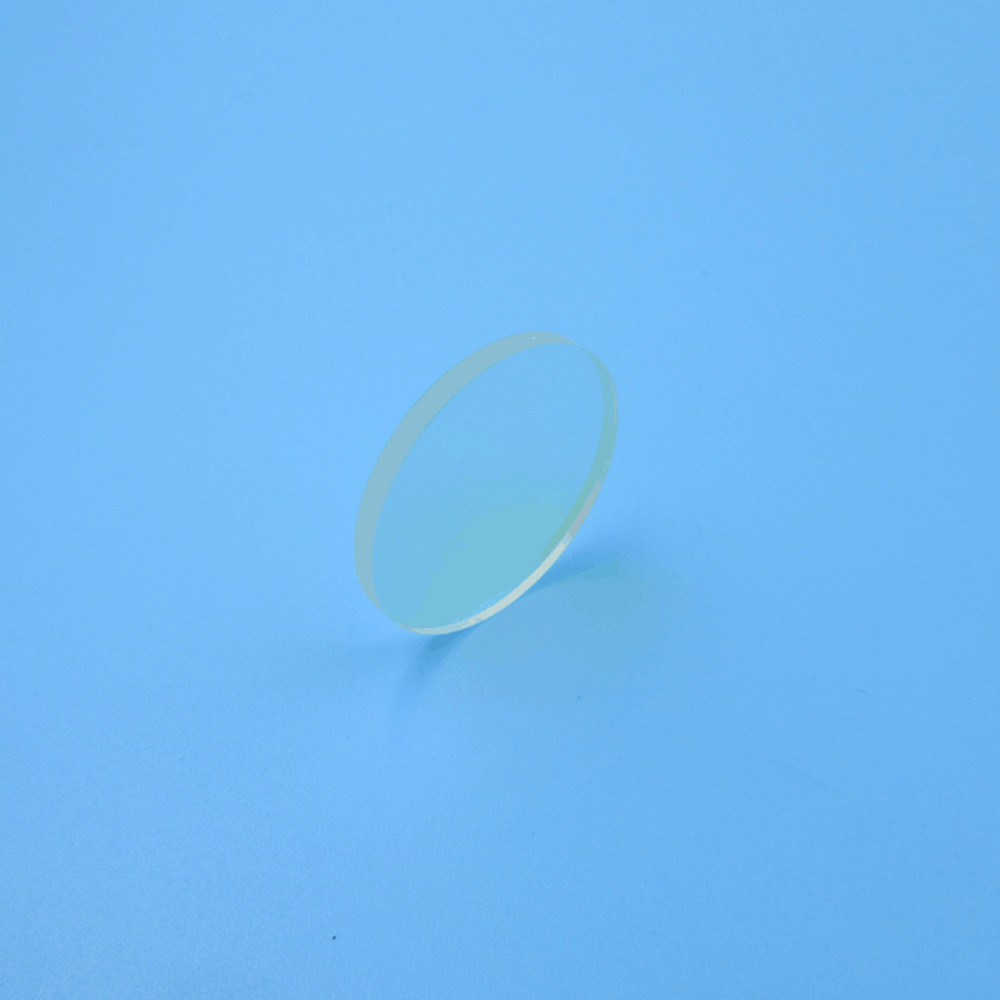

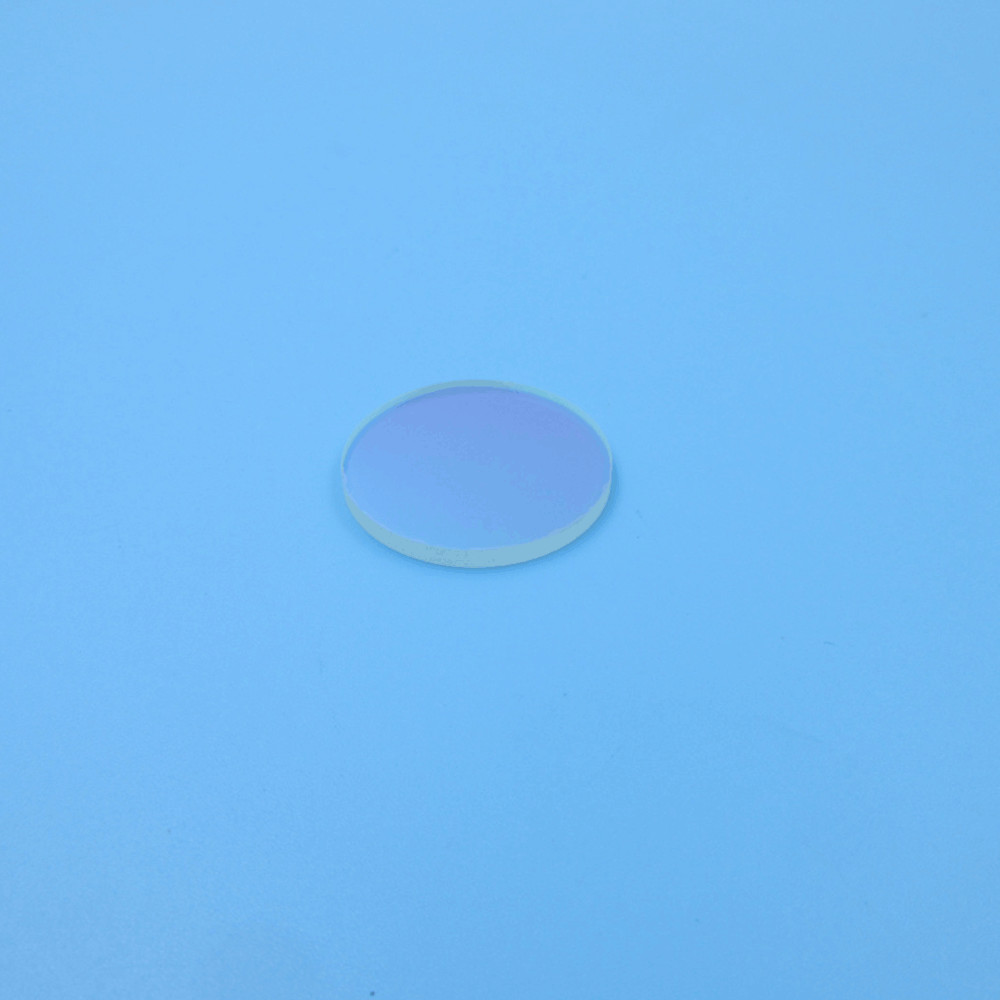

Digital Camera 750nm Bandpass Interference Filter

Basic Information
Place of Origin: Wuhan,China
Brand Name: Wuhan Siwer Optics
Minimum Order Quantity: 2 pieces
Price: 2-30USD/piece
Packaging Details: 1.Tissue paper. 2.Plastic foam packaging film. 3.Hard carton box with quakeproof filler
Delivery Time: 1-3 weeks
Payment Terms: T/T, Western Union
Supply Ability: 2000 pieces/month
Detail Information
Material: Fused Silica Or Other Optical Glass Size Tolerance: +/-0.1mm
Chamfer: 0.2-0.5mm Surface Quality: 40/20
Surface Flatness: Lambda/2 In 25.4mm Parallelism: 2 Arc Min
Size Range: 2-70mm Usage: Optical System
High Light:

narrow bandpass optical filter

,

narrow band interference filter


Product Description

600-750nm narrow-band pass filter

Bandpass filters are widely used in wireless transmitters and receivers. The main function of such a filter in a transmitter is to limit the bandwidth of the output signal to the band allocated for the transmission. This prevents the transmitter from interfering with other stations. In a receiver, a bandpass filter allows signals within a selected range of frequencies to be heard or decoded, while preventing signals at unwanted frequencies from getting through. Signals at frequencies outside the band which the receiver is tuned at, can either saturate or damage the receiver.

Additionally they can create unwanted mixing products that fall in band and interfere with the signal of interest. Wideband receivers are particularly susceptible to such interference. A bandpass filter also optimizes the signal-to-noise ratio and sensitivity of a receiver.
In both transmitting and receiving applications, well-designed bandpass filters, having the optimum bandwidth for the mode and speed of communication being used, maximize the number of signal transmitters that can exist in a system, while minimizing the interference or competition among signals.



This is the transmission curve of the 600-750nm narrow band pass filter:

Digital Camera 750nm Bandpass Interference Filter 0



We have filters in stock,here are the size and price.

These data will change, Please contact our sales representative for the latest data.

Size Unit price(USD)
Φ21.5*2.3mm 21
Φ27.5*2.3mm 25



Partial stock filter list

Item Size(mm) Unit price(USD)
850nm Narrow band pass filter Φ4.2*1.1 10
Φ4.5*0.55 10
Φ6*2 10
Φ8*0.55 4
Φ8*1.1 4
Φ10.4*1 5
Φ14*1 10
Φ15*1.1 10
Φ17*0.7 14
Φ20*0.55 14
Φ23*1.1 21
Φ25*0.55 14
Φ27*1.2 26
Φ29*1.7 26
Φ34*1 51
Φ37.5*1.2 26
4.5*4.5*0.55 3
6.2*6.2*0.5 3
7*2*1 10
8.2*8.2*0.55 4
8.5*2*1 10
10*10*0.55 5
10*7.5*0.55 8
14*14*1.1 8
14*7*1.1 8
16.9*16.9*1 21
17*17*0.55 21
17.8*17.8*0.55 21
15.5*8*1.1 21
23.5*15.6*1.1 21
27*20*0.6 26
30.5*23*0.6 26
35*2*1 21
37*8.2*0.55 14
57*9*1.8 21
80*14*1 51
86*86*0.55 103
8.2*8.2*1 7
14*14*1 14
Item Size(mm) Unit price(USD)
450nm narrow band pass filter Φ3.5*1 14
Φ5*1.5 10
Φ6.5*1.7 14
Φ8*1.1 17
Φ11.5*1.5 21
Φ15*1.5 21
Φ25*1.5 21
Φ30*1.5 21
Φ35*1.4 48
Φ36*1.5 48
Φ39*1.6 69
Φ45*1 86
Φ50*1.8 103
Φ51*1.5 103
10*5*1.65 17
14*14*1.1 21
14*7.5*1.1 21
14*8.1*1.1 21
16.5*16.5*1.1 21
18*18*1.7 21
19.5*16.8*1.5 21
30*5*1.1 21
38*20*1.1 34
39*23*2.2 48
Item Size(mm) Unit price(USD)
625-665nm band pass filter 4.8*2.6*1 10
6*4.6*1 3
5*5*1.2 10
6.5*6.5*1 3
9*9*1 3
10*10*1 10
6*6*1 3
9*9*1 3
16*16*1.7 14
16.5*16.5*1.1 21
25*14*1.1 21
30*30*1.7 21
Φ6*1 3
Φ8*1 3
Φ12*1.1 12
Φ16*1.1 12
Φ20*1.1 12
Φ24*1 14
Φ25*1.1 14
Φ26*1.1 14
Φ29*1.2 14
Φ30*1.1 14
Φ39*1.1 34
600-750nm band pass filter Φ21.5*2.3mm 21
Φ27.5*2.3mm 21
600-480nm band pass filter 7.65*7.65*0.7mm 14
420nm-620nm&850nm band pass filter Φ8*0.55mm 3
10*10*0.55mm 4
30*30*1.1mm 7
697nm narrow band pass filter Φ20*1.75mm 26
400-950nm band pass filter 40*10*1.1mm 21
820-1100nm band pass filter 40*10*1.6mm 21
970nm narrow bandpass filter Φ19*0.7mm 21
Item Size(mm) Unit price(USD)
520nm narrow bandpass filter Φ14*1.1mm 21
Φ16.5*1.6mm 21
Φ24*1.1mm 21
Φ25*1.7mm 21
Φ30*1.1mm 26
Φ39*1.1mm 71
8*8*1.1mm 18
20*20*1.2mm 21
Item Size(mm) Unit price(USD)
689-725nm bandpass filter Φ39*1.8mm 49
563nm narrow bandpass filter 80*20*1mm 49
680-760 bandpass filter Φ29.5*2.2mm 21
Φ12*1.8mm 18
Φ7*2.3mm 14
80*8.5*1.7mm 26
Item Size(mm) Unit price(USD)
760-850nm bandpass filter Φ8*1.2mm 14
14*14*1.1 21
Item Size(mm) Unit price(USD)
940nm narrow bandpass filter Φ8*0.7mm 7
Φ10*0.55mm 14
Φ12*1.1mm 14
Φ15*1mm 21
Φ22*1.1mm 21
Φ25*1.1mm 26
Φ28*1.1mm 26
Φ36*1.3mm 71
Φ39*1.5mm 71
10*10*0.7mm 7
14*6*0.6mm 18
14*14*0.6mm 21
500-550nm bandpass filter 4.8*2.6*0.7mm 7
6*6*1.1mm 14
8*8*1.65mm 14
11.3*1.6*1.55mm 14
70*20*2.5mm 35
Φ20*2mm 21
Φ27*1.45mm 21
Φ36*2.45mm 26
450-1100nm longpass filter Φ25*1.1mm 21
Φ35*1.3mm 49
420-480nm bandpass filter 6*6*1.7mm 14
18*18*1.6mm 18
Φ30*1.46mm 21
80*39*2.3mm 71
80*10*1.65mm 18
Φ8*1.7mm 14
10*10*2mm 18
Φ12.5*1.5mm 18
Φ35*1.6mm 35





We can also customize specific filters according to your requirements.

We can also provide the filter holder. Here is the schematic diagram of our standard holder:

Digital Camera 750nm Bandpass Interference Filter 1









 Digital Camera 750nm Bandpass Interference Filter 2

Digital Camera 750nm Bandpass Interference Filter 3






Production Line

Digital Camera 750nm Bandpass Interference Filter 4

What's the way of shipping?
We accept DHL, Fedex, TNT, UPS, SF, EMS etc. If you have your own express account, it's great.



How to pay?

(1) T/T, PayPal, West Union,etc

(2) Bank Fee: West Union-USD30.00(≤USD3000.00),

T/T-USD20.00+, PayPal-5%. Please consult the local bank.


What's the deliver time?
For inventory: the delivery time is around 5 workdays.

Customized products: the delivery time is 10 to 30 workdays. According to the quantity and precision.

Can I customize the products based on my need?
Yes, we can customize the material, specifications and optical coating for your optical components based on your needs. OEM is available.
