Intelligent Recognition System 850nm Biometric Bandpass Interference Filter

Basic Information
Place of Origin: Wuhan,China
Brand Name: Wuhan Siwer Optics
Minimum Order Quantity: 2 pieces
Price: 2-30USD/piece
Packaging Details: 1.Tissue paper. 2.Plastic foam packaging film. 3.Hard carton box with quakeproof filler
Delivery Time: 1-3 weeks
Payment Terms: T/T, Western Union
Supply Ability: 2000 pieces/month
Detail Information
Material: H-K9L Or Other Optical Glass Size Tolerance: +/-0.1mm
Chamfer: Less Than 0.2mm Surface Quality: 40/20
Surface Flatness: Lambda/2 In 25.4mm Parallelism: 2 Arc Min
Size: Customized Usage: Optical System
High Light:

Biometric Bandpass Interference Filter

,

850nm Bandpass Interference Filter

,

Intelligent Recognition System Bandpass Filter


Product Description

Intelligent Recognition System 850nm Face Recognition Biometric Bandpass Filter





An optical bandpass filter is used to isolate a band of wavelengths from the total spectrum by providing a band of high transmission and bands of high rejection of spectral energy on both the long and short wavelength sides of the transmission band.



Product Index



Center wavelength 850+/-5nm
FWHM 30+/-5nm
Top transmittance >90%
Blocking range 350-1100nm
Angle of incidence 0deg
Surface quality 60/40
Cut off depth OD2-OD6
Meterial BK7,K9,B270,Fused Silica etc
Size Customized






Transmission Curve

Intelligent Recognition System 850nm Biometric Bandpass Interference Filter 0



Partial stock filter list



Item

Size(mm)

Unit price(USD)

850nm Narrow band pass filter

Φ4.2*1.1

10

Φ4.5*0.55

10

Φ6*2

10

Φ8*0.55

4

Φ8*1.1

4

Φ10.4*1

5

Φ14*1

10

Φ15*1.1

10

Φ17*0.7

14

Φ20*0.55

14

Φ23*1.1

21

Φ25*0.55

14

Φ27*1.2

26

Φ29*1.7

26

Φ34*1

51

Φ37.5*1.2

26

4.5*4.5*0.55

3

6.2*6.2*0.5

3

7*2*1

10

8.2*8.2*0.55

4

8.5*2*1

10

10*10*0.55

5

10*7.5*0.55

8

14*14*1.1

8

14*7*1.1

8

16.9*16.9*1

21

17*17*0.55

21

17.8*17.8*0.55

21

15.5*8*1.1

21

23.5*15.6*1.1

21

27*20*0.6

26

30.5*23*0.6

26

35*2*1

21

37*8.2*0.55

14

57*9*1.8

21

80*14*1

51

86*86*0.55

103

8.2*8.2*1

7

14*14*1

14

Item

Size(mm)

Unit price(USD)

450nm narrow band pass filter

Φ3.5*1

14

Φ5*1.5

10

Φ6.5*1.7

14

Φ8*1.1

17

Φ11.5*1.5

21

Φ15*1.5

21

Φ25*1.5

21

Φ30*1.5

21

Φ35*1.4

48

Φ36*1.5

48

Φ39*1.6

69

Φ45*1

86

Φ50*1.8

103

Φ51*1.5

103

10*5*1.65

17

14*14*1.1

21

14*7.5*1.1

21

14*8.1*1.1

21

16.5*16.5*1.1

21

18*18*1.7

21

19.5*16.8*1.5

21

30*5*1.1

21

38*20*1.1

34

39*23*2.2

48

Item

Size(mm)

Unit price(USD)

625-665nm band pass filter

4.8*2.6*1

10

6*4.6*1

3

5*5*1.2

10

6.5*6.5*1

3

9*9*1

3

10*10*1

10

6*6*1

3

9*9*1

3

16*16*1.7

14

16.5*16.5*1.1

21

25*14*1.1

21

30*30*1.7

21

Φ6*1

3

Φ8*1

3

Φ12*1.1

12

Φ16*1.1

12

Φ20*1.1

12

Φ24*1

14

Φ25*1.1

14

Φ26*1.1

14

Φ29*1.2

14

Φ30*1.1

14

Φ39*1.1

34

600-750nm band pass filter

Φ21.5*2.3mm

21

Φ27.5*2.3mm

21

600-480nm band pass filter

7.65*7.65*0.7mm

14

420nm-620nm&850nm band pass filter

Φ8*0.55mm

3

10*10*0.55mm

4

30*30*1.1mm

7

697nm narrow band pass filter

Φ20*1.75mm

26

400-950nm band pass filter

40*10*1.1mm

21

820-1100nm band pass filter

40*10*1.6mm

21

970nm narrow bandpass filter

Φ19*0.7mm

21

Item

Size(mm)

Unit price(USD)

520nm narrow bandpass filter

Φ14*1.1mm

21

Φ16.5*1.6mm

21

Φ24*1.1mm

21

Φ25*1.7mm

21

Φ30*1.1mm

26

Φ39*1.1mm

71

8*8*1.1mm

18

20*20*1.2mm

21

Item

Size(mm)

Unit price(USD)

689-725nm bandpass filter

Φ39*1.8mm

49

563nm narrow bandpass filter

80*20*1mm

49

680-760 bandpass filter

Φ29.5*2.2mm

21

Φ12*1.8mm

18

Φ7*2.3mm

14

80*8.5*1.7mm

26

Item

Size(mm)

Unit price(USD)

760-850nm bandpass filter

Φ8*1.2mm

14

14*14*1.1

21

Item

Size(mm)

Unit price(USD)

940nm narrow bandpass filter

Φ8*0.7mm

7

Φ10*0.55mm

14

Φ12*1.1mm

14

Φ15*1mm

21

Φ22*1.1mm

21

Φ25*1.1mm

26

Φ28*1.1mm

26

Φ36*1.3mm

71

Φ39*1.5mm

71

10*10*0.7mm

7

14*6*0.6mm

18

14*14*0.6mm

21

500-550nm bandpass filter

4.8*2.6*0.7mm

7

6*6*1.1mm

14

8*8*1.65mm

14

11.3*1.6*1.55mm

14

70*20*2.5mm

35

Φ20*2mm

21

Φ27*1.45mm

21

Φ36*2.45mm

26

450-1100nm longpass filter

Φ25*1.1mm

21

Φ35*1.3mm

49

420-480nm bandpass filter

6*6*1.7mm

14

18*18*1.6mm

18

Φ30*1.46mm

21

80*39*2.3mm

71

80*10*1.65mm

18

Φ8*1.7mm

14

10*10*2mm

18

Φ12.5*1.5mm

18

Φ35*1.6mm

35

We can also customize specific filters according to your requirements.

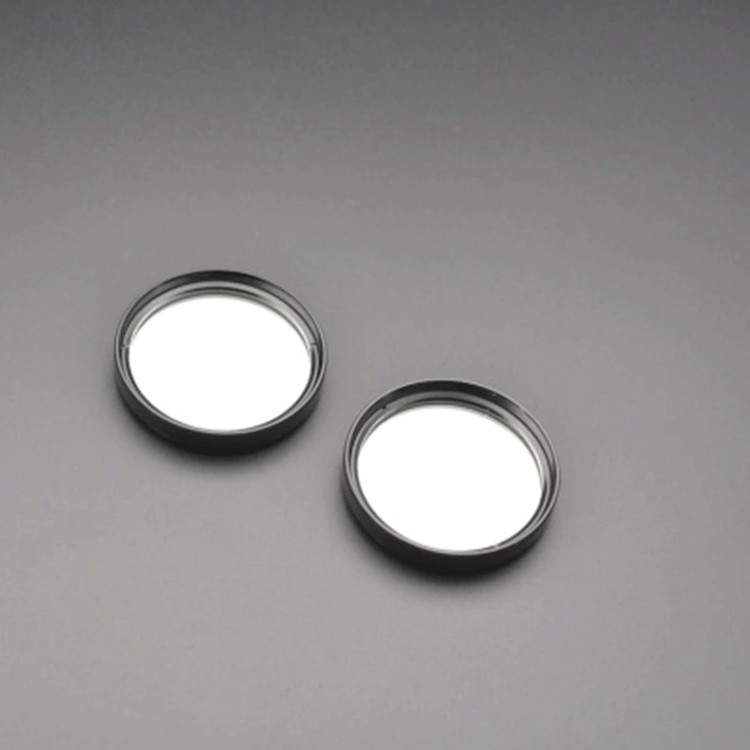

We can also provide the filter holder. Here is the schematic diagram of our standard holder:

Intelligent Recognition System 850nm Biometric Bandpass Interference Filter 1









 Intelligent Recognition System 850nm Biometric Bandpass Interference Filter 2

Intelligent Recognition System 850nm Biometric Bandpass Interference Filter 3






Production Line

Intelligent Recognition System 850nm Biometric Bandpass Interference Filter 4

What's the way of shipping?
We accept DHL, Fedex, TNT, UPS, SF, EMS etc. If you have your own express account, it's great.



How to pay?

(1) T/T, PayPal, West Union,etc

(2) Bank Fee: West Union-USD30.00(≤USD3000.00),

T/T-USD20.00+, PayPal-5%. Please consult the local bank.


What's the deliver time?
For inventory: the delivery time is around 5 workdays.

Customized products: the delivery time is 10 to 30 workdays. According to the quantity and precision.

Can I customize the products based on my need?
Yes, we can customize the material, specifications and optical coating for your optical components based on your needs. OEM is available.
