Optical Glass Plano Concave Lens +/-0.1mm Dimension Tolerance

Basic Information
Place of Origin: Wuhan,China
Brand Name: Wuhan Siwer Optics
Minimum Order Quantity: 10 pieces
Packaging Details: 1.Tissue paper.plastic foam packaging film And hard carton box with quakeproof filler
Delivery Time: 4-5 weeks
Supply Ability: 20000 pieces/month
Detail Information
Material: Optical Glass Type: Plano Concave
Diameter Range: 4-300mm Demension Tolerance: +/-0.1mm
Surface Quality: 40/20 Surface Accuracy: Lambda/4 In 25.4mm
Centration: 3 Arc Min Standard Coating: AR@400-700nm
Usage: Optical System
High Light:

plano concave mirror

,

concave meniscus lens


Product Description

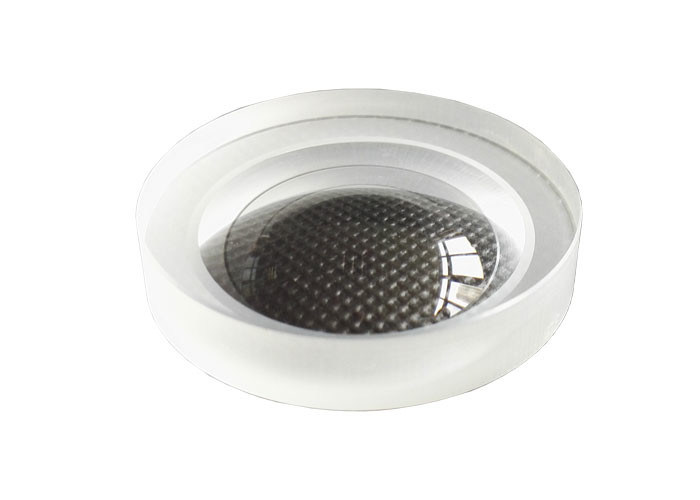

Optical Plano Concave Lens

Plano-Concave Lenses are ideal for beam expansion, light projection, or for expanding an optical system’s focal length. Plano-Concave Lenses, which have one concave surface, are Optical Lenses with negative focal lengths. PCV Lenses should be oriented with the plano, or flat, surface towards the desired focal plane. PCV Lenses are ideal for use in a range of applications or industries.

  • Wavelength Range of 350-2200nm
  • Precision Diameter and Centration Tolerances Allow for Easy OEM Integration
  • Wide Variety of Diameters, Focal Lengths, and Coatings
  • Anti-Reflection Coating Options: MgF2, VIS 0°, VIS-NIR, NIR I, and NIR II

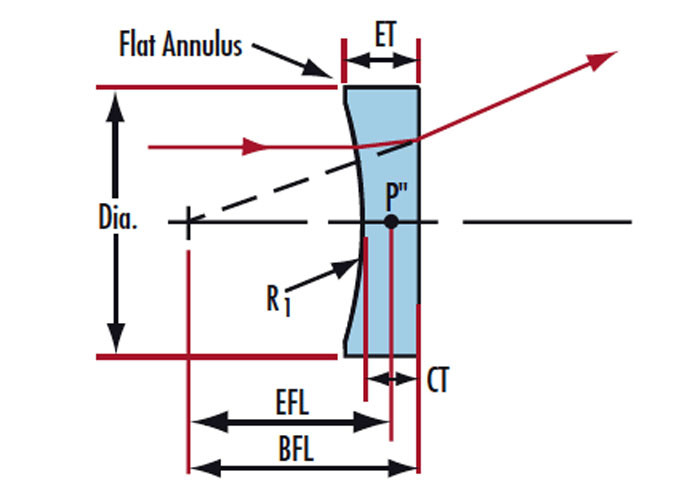

Plano-Concave (PCV) lenses have one flat and one inward curved surface. PCV lenses have a negative focal length and are used for image reduction or to spread light.



Optical AR Coatings

a) Uncoated,The surface reflectivity of uncoated visible lenses(Refractive index=1.5) is about 4%.

Click on the link to see how to calculate reflectivity

b) AR/AR@400-700nm,Tavg>99.4%

c) AR/AR@450-650nm,Tavg>99.6%

d) AR/AR@400-1000nm,Tavg>98.5%

e) We can also customize high damage threshold antireflective coatings



Optical Glass Plano Concave Lens +/-0.1mm Dimension Tolerance 0 Optical Glass Plano Concave Lens +/-0.1mm Dimension Tolerance 1 Optical Glass Plano Concave Lens +/-0.1mm Dimension Tolerance 2



Production Line

Optical Glass Plano Concave Lens +/-0.1mm Dimension Tolerance 3


Optical Properties of Plano Concave Lens

Material Optical glass
AR Coating Range 400-700nm or customized
Reflectance over
AR Coating Range @ 0° AOI
Ravg<0.5%
Diameter Tolerance +0.0/-0.1 mm
Thickness Tolerance ±0.1 mm
Focal Length Tolerance ±2%
Surface Quality 40/20 Scratch-Dig
Surface Flatness
(Plano Side)
λ/2 at 633nm
Spherical Surface Powerc
(Convex Side)
1.5λ at 633nm
Surface Irregularity
(Peak to Valley)
λ/2 at 633nm
Centration <3 arcmin
Clear Aperture >Ø10.16 mm (Ø1/2" Lenses)
>Ø20.32 mm (Ø1" Lenses)
Design Wavelength 546nm





What's the way of shipping?
We accept DHL, Fedex, TNT, UPS, SF, EMS etc. If you have your own express account, it's great.



How to pay?

(1) T/T, PayPal, West Union,etc

(2) Bank Fee: West Union-USD30.00(≤USD3000.00),

T/T-USD20.00+, PayPal-5%. Please consult the local bank.


What's the deliver time?
For inventory: the delivery time is around 5 workdays.

Customized products: the delivery time is 10 to 30 workdays. According to the quantity and precision.

Can I customize the products based on my need?
Yes, we can customize the material, specifications and optical coating for your optical components based on your needs. OEM is available.



Contact Details
Jason
