| Place of Origin: | Wuhan,China |
|---|---|
| Brand Name: | Wuhan Siwer Optics |
| Minimum Order Quantity: | 20 pieces |
| Price: | 2.5-230USD/piece |
| Packaging Details: | 1.Tissue paper. 2.Plastic foam packaging film. 3.Hard carton box with quakeproof filler |
| Delivery Time: | 4-6 weeks |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 2000 pieces/month |
| Material: | BK7 | Diameter: | 2-300mm+0/-0.1mm |
|---|---|---|---|
| Surface Quality: | 40/20 | Surface Flatness: | Lambda/2 In 25.4mm |
| Centration: | 3 Arc Min | Standard Coating: | Customized |
| Usage: | Optical System | ||
| High Light: | pcx lens,half ball lens |
||

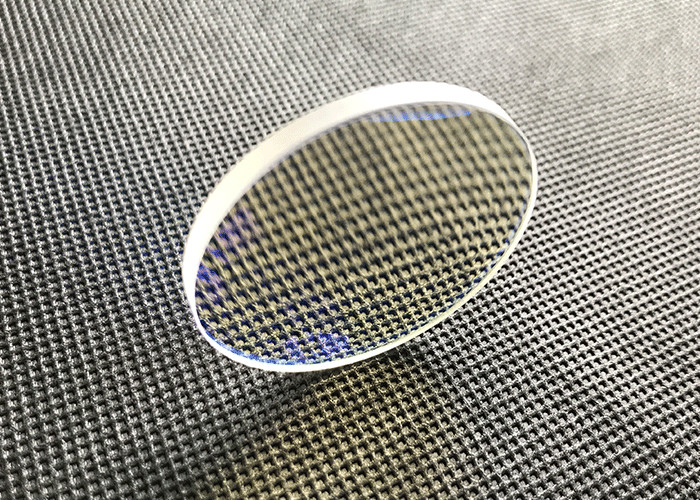

Plano-Convex Lenses are Optical Lenses with a positive focal length. Plano-Convex Lenses are ideal for light collimation or for focusing applications utilizing monochromatic illumination, in a range of industries including industrial, pharmaceutical, robotics, or defense. PCX Lenses have one convex surface. For maximum efficiency, the second, plano (flat) surface should face the desired focal plane. Plano-Convex lenses are commonly used in a wide range of applications or industries.

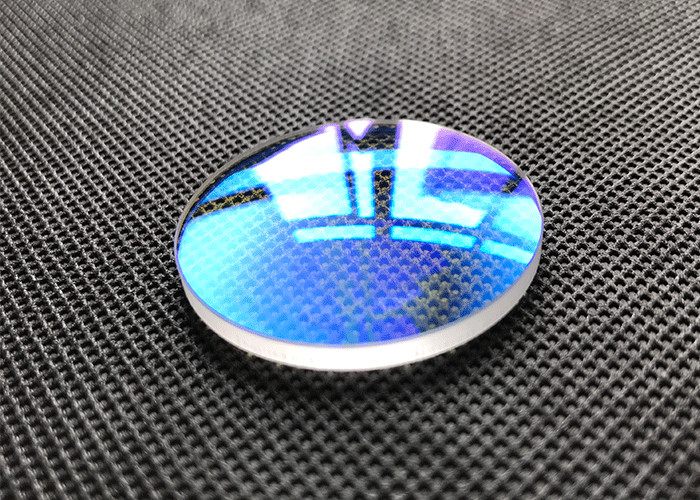

In some single wavelength laser optical systems, the lens only needs to have a high transmittance for a certain wavelength of light. We can customize the lens of specified wavelength according to the requirements of customers.
| Material | Optical glass |
| AR Coating Range | 400-700nm or customized |
| Reflectance over AR Coating Range @ 0° AOI |
Ravg<0.5% |
| Diameter Tolerance | +0.0/-0.1 mm |
| Thickness Tolerance | ±0.1 mm |
| Focal Length Tolerance | ±2% |
| Surface Quality | 40/20 Scratch-Dig |
| Surface Flatness (Plano Side) |
λ/2 at 633nm |
| Spherical Surface Powerc (Convex Side) |
1.5λ at 633nm |
| Surface Irregularity (Peak to Valley) |
λ/2 at 633nm |
| Centration | <3 arcmin |
| Clear Aperture | >Ø10.16 mm (Ø1/2" Lenses) >Ø20.32 mm (Ø1" Lenses) |
| Design Wavelength | 546nm |
