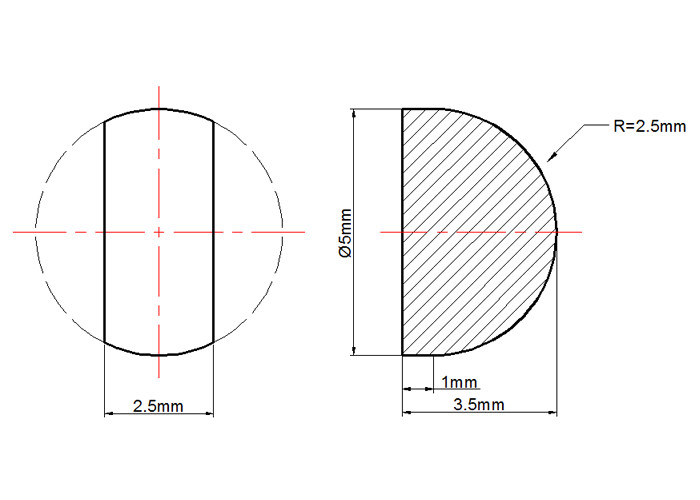

Customizable Optical Glass Half Ball Lens BK7 Material For Light Collimation

Basic Information
Place of Origin: Wuhan,China
Brand Name: Wuhan Siwer Optics
Minimum Order Quantity: 20 pieces
Price: 2.5-30USD/piece
Packaging Details: 1.Tissue paper. 2.Plastic foam packaging film. 3.Hard carton box with quakeproof filler
Delivery Time: 4-6 weeks
Payment Terms: T/T, Western Union
Supply Ability: 2000 pieces/month
Detail Information
Material: BK7 Diameter: 5+0/-0.1mm
Thickness: 2.5+/-0.1mm Surface Quality: 40/20
Surface Flatness: Lambda/2 In 25.4mm Centration: 3 Arc Min
Standard Coating: Customized Usage: Optical System
Highlight:

pcx lens

,

half ball lens


Product Description

Optical Plano Convex Lens

Plano-Convex Lenses are Optical Lenses with a positive focal length. Plano-Convex Lenses are ideal for light collimation or for focusing applications utilizing monochromatic illumination, in a range of industries including industrial, pharmaceutical, robotics, or defense. PCX Lenses have one convex surface. For maximum efficiency, the second, plano (flat) surface should face the desired focal plane. Plano-Convex lenses are commonly used in a wide range of applications or industries.





 Customizable Optical Glass Half Ball Lens BK7 Material For Light Collimation 0



Optical AR Coatings

a) Uncoated,The surface reflectivity of uncoated visible lenses(Refractive index=1.5) is about 4%.

Click on the link to see how to calculate reflectivity

b) AR/AR@400-700nm,Tavg>99.4%

c) AR/AR@450-650nm,Tavg>99.6%

d) AR/AR@400-1000nm,Tavg>98.5%

e) We can also customize high damage threshold antireflective coatings

Customizable Optical Glass Half Ball Lens BK7 Material For Light Collimation 1








Production Line

Customizable Optical Glass Half Ball Lens BK7 Material For Light Collimation 2




Optical Properties of Optical Lens

Material Optical glass
AR Coating Range 400-700nm or customized
Reflectance over
AR Coating Range @ 0° AOI

Ravg<0.5%

Diameter Tolerance +0.0/-0.1 mm
Thickness Tolerance ±0.1 mm
Focal Length Tolerance ±2%
Surface Quality 40/20 Scratch-Dig
Surface Flatness
(Plano Side)
λ/2 at 633nm
Spherical Surface Powerc
(Convex Side)
1.5λ at 633nm
Surface Irregularity
(Peak to Valley)
λ/2 at 633nm
Centration <3 arcmin
Clear Aperture >Ø10.16 mm (Ø1/2" Lenses)
>Ø20.32 mm (Ø1" Lenses)
Design Wavelength 546nm
