| Place of Origin: | Wuhan,China |
|---|---|
| Brand Name: | Wuhan Siwer Optics |
| Minimum Order Quantity: | 4 pieces |
| Price: | 50-300USD/piece |
| Packaging Details: | 1.Tissue paper. 2.Plastic foam packaging film. 3.Hard carton box with quakeproof filler |
| Delivery Time: | 4-6 weeks |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 3000 pieces/month |
| Material: | Single Crystal Germanium | Size Tolerance: | +/-0.1mm |
|---|---|---|---|
| Chamfer: | 0.2-0.5mm | Surface Quality: | 40/20 |
| Surface Flatness: | Lambda/4 In 25.4mm | Parallelism: | 0.01mm |
| Standard Coating: | AR/AR@8-14um Or Customized | Size Range: | 5-300mm |
| Usage: | Infared System | ||
| High Light: | optical wedge prism,ir prism |
||

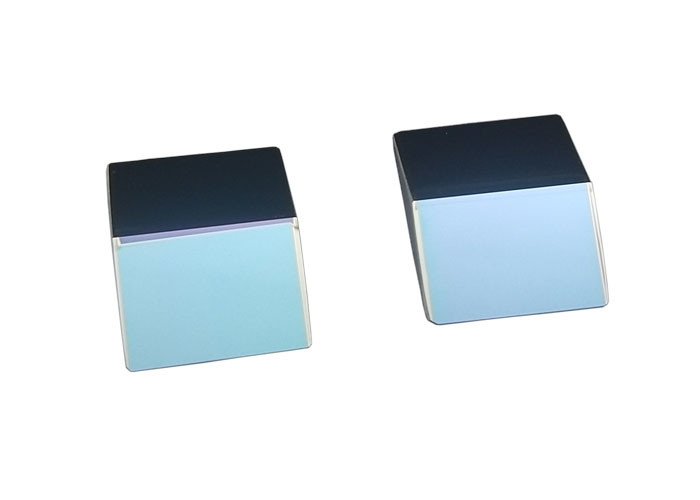

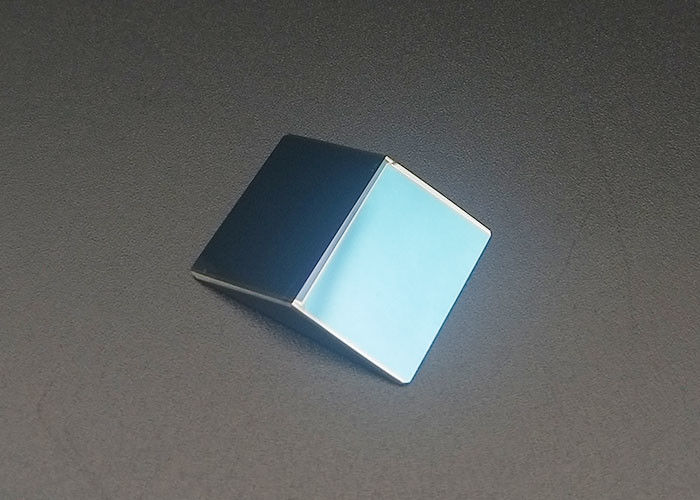

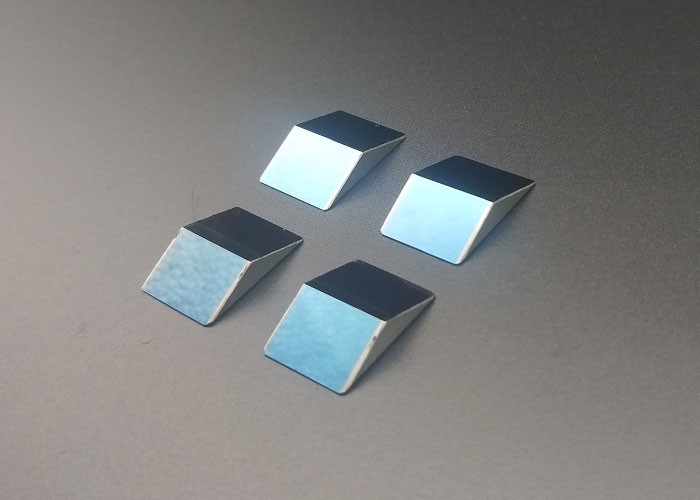

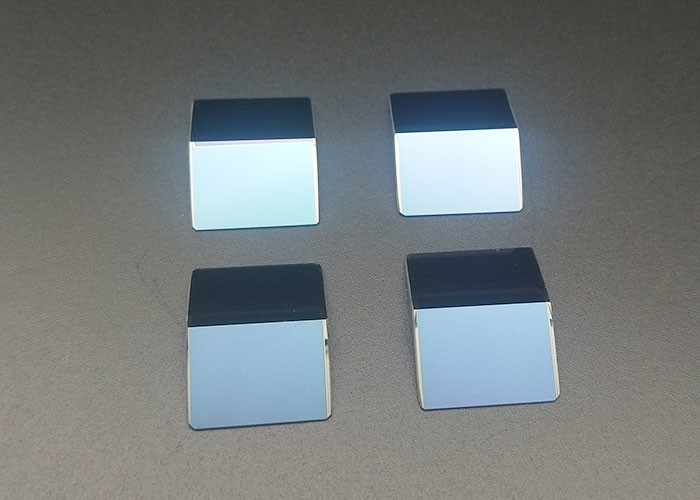

Germanium material is softer than other optical materials, and there are many surfaces should be polished,so the surface quality of germanium prism is easier to be destroyed in the processing.
Because germanium material does not penetrate the visible light, it can not use the self-collimation method to measure the angular accuracy as other materials'prisms.
These factors lead to high production cost of germanium prism.
In infrared system, it is sometimes necessary to deflect the infrared light (especially the light with 8-14um wavelength) at a certain angle, and germanium prism is very suitable for it.
Since the Refractive index of single crystal germanium is 4.0, its critical angle is only 14.5 degrees, it is very conducive to the propagation of light beam in the prism.
We have customized various germanium prisms for many university laboratories and other similar research departments. We have many years of experience in this field.
We can customize germanium prisms for you.Or you just need to tell us what you need to achieve,Our engineers can recommend or design suitable prisms for you.
More details please contact us.
| Material | Single Crystal Germanium |
| AR Coating Range | 3-5um,8-12um,3-11um |
| Reflectance over AR Coating Range @ 0° AOI |
Ravg < 2%,3-5um or 8-12um Ravg<5%,3-11um |
| Transmission over AR Coating Range @ 0° AOI |
Tavg > 94%,3-5um or 8-12um |
| Diameter Tolerance | +0.0/-0.1 mm |
| Thickness Tolerance | ±0.1 mm |
| Focal Length Tolerance | ±2% |
| Surface Quality | 60-40 Scratch-Dig |
| Surface Flatness (Plano Side) |
λ/2 at 633nm |
| Spherical Surface Powerc (Convex Side) |
1.5λ at 633nm |
| Surface Irregularity (Peak to Valley) |
λ/2 at 633nm |
| Centration | <3 arcmin |
| Clear Aperture | >Ø10.16 mm (Ø1/2" Lenses) >Ø20.32 mm (Ø1" Lenses) |
| Design Wavelength | 10.6 μm |
| Chemical Formula | Ge |
| Crystal Form | Poly or Single Crystal |
| Crystal Class | Cubic |
| Resistivity, Ohm*cm | 0.01-40 |
| Lattice Constant, Å | 5.66 |
| Molecular Weight | 72.6 |
| Density, g/cm3 at 300 K | 5.33 |
| Dielectric Constant for 9.37 x 109 Hz at 300 K | 16.6 |
| Melting Temperature, K | 1210 |
| Thermal Conductivity, W/(m K) at 293 K | 59 |
| Thermal Expansion, 1/K at 298 K | 6.1 x 10-6 |
| Specific Heat, cal/(g K) at 273-373 K | 0.074 |
| Debye Temperature, K | 370 |
| Bandgap, eV | 0.67 |
| Solubility in water | None |
| Knoop Hardness, kg/mm2 | 800 |
| Mohs Hardness | 6.3 |
| Young's Modulus, GPa | 102.66 |
| Shear Modulus, GPa | 67.04 |
| Bulk Modulus, GPa | 77.86 |
| Poisson's Ratio | 0.278 |
What's the way of shipping?
We accept DHL, Fedex, TNT, UPS, SF, EMS etc. If you have your own express account, it's great.
How to pay?
(1) T/T, PayPal, West Union,etc
(2) Bank Fee: West Union-USD30.00(≤USD3000.00),
T/T-USD20.00+, PayPal-5%. Please consult the local bank.
What's the deliver time?
For inventory: the delivery time is around 5 workdays.
Customized products: the delivery time is 10 to 30 workdays. According to the quantity and precision.
Can I customize the products based on my need?
Yes, we can customize the material, specifications and optical coating for your optical components based on your needs. OEM is available.
