| Place of Origin: | Wuhan,China |
|---|---|
| Brand Name: | Wuhan Precision Optical Components Inc |
| Minimum Order Quantity: | 5 pieces |
| Price: | 9-100USD/piece |
| Packaging Details: | 1.Tissue paper. 2.Plastic foam packaging film. 3.Hard carton box with quakeproof filler |
| Delivery Time: | 3-6 weeks |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 20000 pieces/month |
| Material: | H-K9L Or Fused Silica | Diameter: | 50.8+0/-0.1mm |
|---|---|---|---|
| Thickness: | 10+/-0.1mm | Surface Quality: | 60/40 |
| Coating: | HR1512nm And HR635nm | Centration: | 2 Arc Min |
| Chamfer: | 0.5mm | Type: | Plano Convex Mirror |
| Focal Length: | 200mm | ||
| High Light: | beam splitter mirror,metallic coated mirror |
||

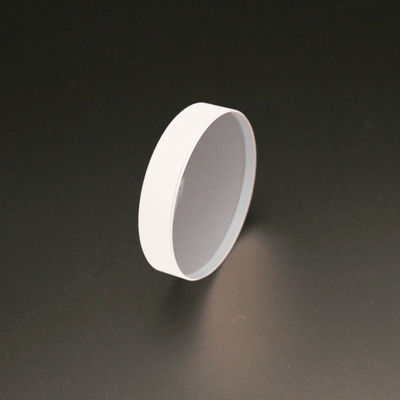

A gas chamber which can reflect infrared light multiple times is usually needed in the on-line analysis system of laser ammonia escape, and there is a concave mirror at the two ends of the gas chamber.
Because the measured gas usually has a high temperature of more than 200 ℃, the dielectric reflective coating selected for the reflector will have a longer service life.
Our infrared reflectors can well meet the requirements of analysis system of laser ammonia escape, and provide you with high cost-effective solutions
