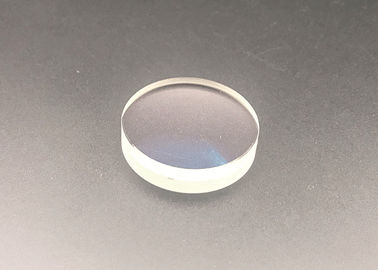

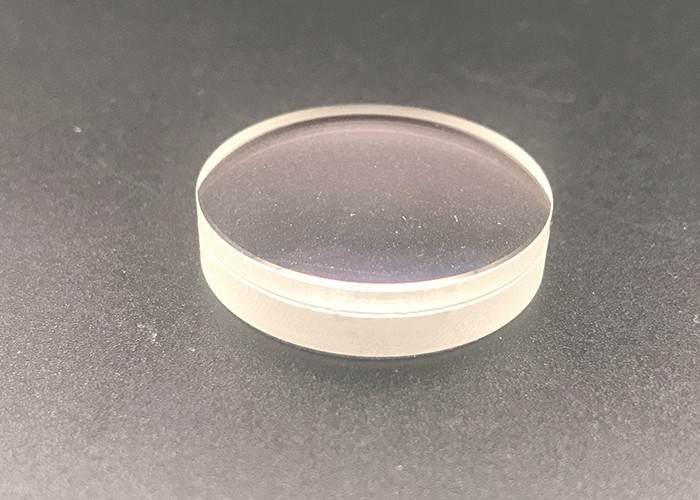

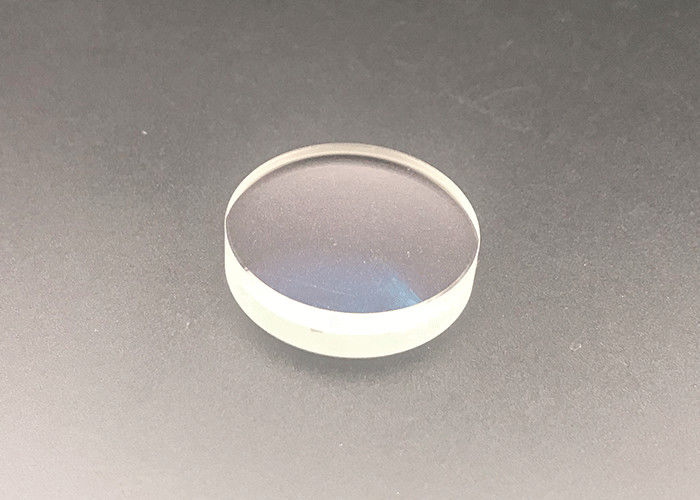

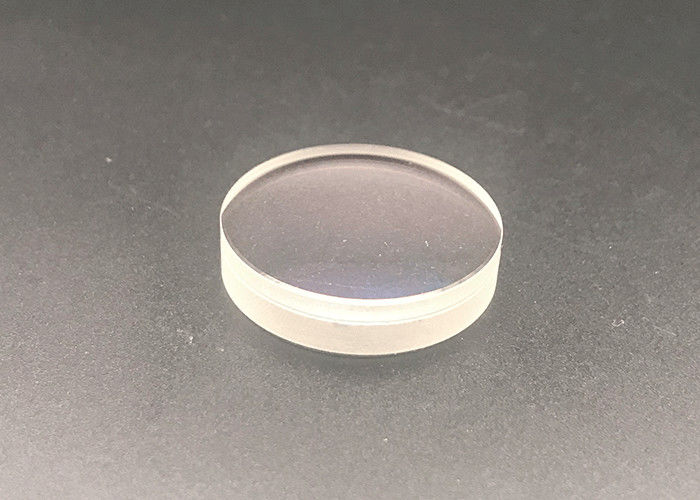

N-BK7 And N-SF2 Material Achromatic Doublet Lens For Custom Producing

Basic Information
Place of Origin: Wuhan,China
Brand Name: Wuhan Siwer Optics
Minimum Order Quantity: 10 pieces
Price: 80-300USD/piece
Packaging Details: 1.Tissue paper. 2.Plastic foam packaging film. 3.Hard carton box with quakeproof filler
Delivery Time: 4-6 weeks
Payment Terms: T/T, Western Union
Supply Ability: 2000 pieces/month
Detail Information
Material: N-BK7 And N-SF2 Size Tolerance: +/-0.1mm
Chamfer: 0.2-0.5mm Surface Quality: 40/20
Surface Flatness: Lambda/4 In 25.4mm Centration: 3 Arc Min
Standard Coating: AR@400-700nm Or Customized Size Range: 4-300mm
Usage: Optical System
High Light:

achromatic lens

,

achromatic cylindrical lens


Product Description

Acromatic Lens

  • Designed for 0° Angle of Incidence
  • Less Than 1.75% Reflectance Per Surface @ 400 - 700nm
  • VIS 0° and VIS-NIR Coated Achromats Also Available

Achromatic doublet lenses consist of two optical components cemented together to form an achromatic doublet which is computer optimized to correct for on-axis spherical and chromatic aberrations. Our achromatic doublets are available with a single layer MgF2 coating or a broadband multi-layer coating for the visible spectrum. NIR achromatic doublets and edge blackened achromatic doublets are also available.

Achromatic doublet lenses are far superior to simple lenses for multi-color ("white light") imaging. The two elements composing an achromatic doublet lens (literally, "a lens with no color") are paired together for their ability to correct the color separation inherent in glass. Having eliminated the problematic chromatic aberrations, achromatic doublet lenses become the most cost-efficient means for good polychromatic illumination and imaging.



N-BK7 And N-SF2 Material Achromatic Doublet Lens For Custom Producing 0



Optical AR Coatings

a) Uncoated,The surface reflectivity of uncoated visible lenses(Refractive index=1.5) is about 4%.

Click on the link to see how to calculate reflectivity

b) AR/AR@400-700nm,Tavg>99.4%

c) AR/AR@450-650nm,Tavg>99.6%

d) AR/AR@400-1000nm,Tavg>98.5%

e) We can also customize high damage threshold antireflective coatings

N-BK7 And N-SF2 Material Achromatic Doublet Lens For Custom Producing 1








Production Line

N-BK7 And N-SF2 Material Achromatic Doublet Lens For Custom Producing 2




Optical Properties of acromatic lens

Material Optical glass
AR Coating Range 400-700nm or customized
Reflectance over
AR Coating Range @ 0° AOI

Ravg<0.5%

Diameter Tolerance +0.0/-0.1 mm
Thickness Tolerance ±0.1 mm
Focal Length Tolerance ±2%
Surface Quality 40/20 Scratch-Dig
Surface Flatness
(Plano Side)
λ/2 at 633nm
Spherical Surface Powerc
(Convex Side)
1.5λ at 633nm
Surface Irregularity
(Peak to Valley)
λ/2 at 633nm
Centration <3 arcmin
Clear Aperture >Ø10.16 mm (Ø1/2" Lenses)
>Ø20.32 mm (Ø1" Lenses)
Design Wavelength 546nm
