Optical Dielectric Coating Short Pass Filter 700nm With Customized Size

Basic Information
Place of Origin: Wuhan,China
Brand Name: Wuhan Siwer Optics
Minimum Order Quantity: 5 pieces
Price: 1-99USD/piece
Packaging Details: 1.Tissue paper. 2.Plastic foam packaging film. 3.Hard carton box with quakeproof filler
Delivery Time: 1-3 weeks
Payment Terms: T/T, Western Union
Supply Ability: 2000 pieces/month
Detail Information
Material: Fused Silica Size Tolerance: +/-0.1mm
Thickness Tolerance: +/-0.05mm Surface Quality: 40/20
Transmitted Wavefront,: Lambda/4 In 25.4mm Parallelism: 1 Arc Min
Size Range: 2-70mm Usage: Biomedical Cosmetology,fingerprint Identification And Digital Image
High Light:

short pass optical filter

,

short wave pass filter


Product Description

Dichroic Shortpass Filters

Dichroic Shortpass Filters are designed for a 45° or 0° angle of incidence. The rejected light is reflected at 90° or 0°, making these filters ideal for use in fluorescence applications or as spectral beamsplitters. The filters feature low polarization dependence, broad spectral ranges, and a precision fused silica substrate.

Short pass filters can effectively cut off the near-infrared band of light. They are widely used in various cold light sources, optical fiber lighting, LED lighting, metal halide lamp insulation, and infrared cut-off filters for optical imaging schemes: optical engines, filters for digital cameras to eliminate near-infrared interference from CCD and CMOS, to ensure the normal operation of photoelectric instruments and equipment.

Angle of Incidence(°): 0 or 45
Coating: Hard Coated
Substrate: Fused Silica or other optical glass
Reflection(%): >91% Average Polarization
Surface Quality: 40/20
Thickness Tolerance(mm): +/-0.05
Transmitted Wavefront: Lambda/4
Cut-Off Tolerance(%): +/-2
Cut-off depth: >OD3-OD6 UV-NIR

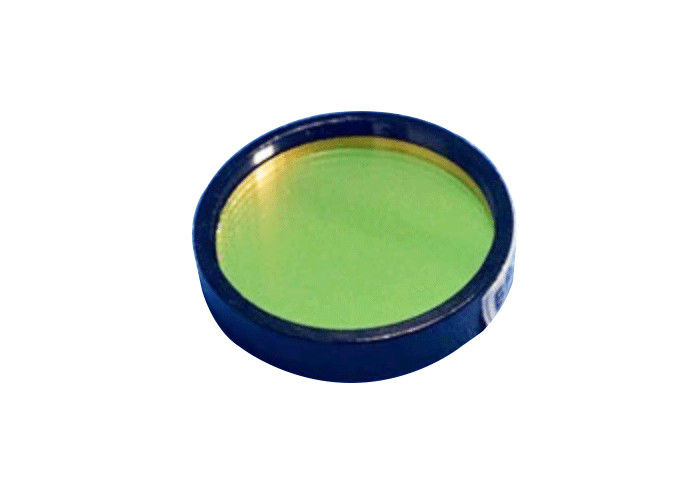

Optical Dielectric Coating Short Pass Filter 700nm With Customized Size 0

Optical Dielectric Coating Short Pass Filter 700nm With Customized Size 1






Production Line

Optical Dielectric Coating Short Pass Filter 700nm With Customized Size 2
