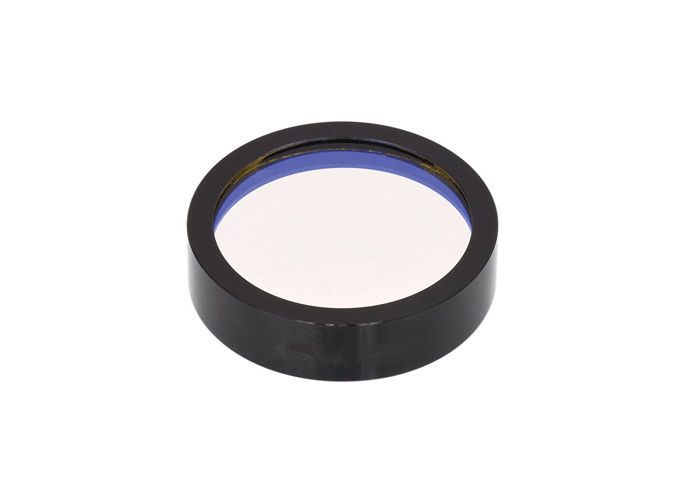

710nm Dichroic Short Pass Filters Customized Size For Biomedical Cosmetology

Basic Information
Place of Origin: Wuhan,China
Brand Name: Wuhan Siwer Optics
Minimum Order Quantity: 5 pieces
Price: 1-99USD/piece
Packaging Details: 1.Tissue paper. 2.Plastic foam packaging film. 3.Hard carton box with quakeproof filler
Delivery Time: 1-3 weeks
Payment Terms: T/T, Western Union
Supply Ability: 2000 pieces/month
Contact Now
Detail Information
Material: Fused Silica Size Tolerance: +/-0.1mm
Thickness Tolerance: +/-0.05mm Surface Quality: 40/20
Transmitted Wavefront,: Lambda/4 In 25.4mm Parallelism: 1 Arc Min
Size Range: 2-70mm Usage: Biomedical Cosmetology,fingerprint Identification And Digital Image

Product Description

710nm Dichroic Shortpass Filters for Biomedical Cosmetology,fingerprint identification and Digital Image

Dichroic Shortpass Filters

Dichroic Shortpass Filters are designed for a 45° or 0° angle of incidence. The rejected light is reflected at 90° or 0°, making these filters ideal for use in fluorescence applications or as spectral beamsplitters. The filters feature low polarization dependence, broad spectral ranges, and a precision fused silica substrate.

Short pass filters can effectively cut off the near-infrared band of light. They are widely used in various cold light sources, optical fiber lighting, LED lighting, metal halide lamp insulation, and infrared cut-off filters for optical imaging schemes: optical engines, filters for digital cameras to eliminate near-infrared interference from CCD and CMOS, to ensure the normal operation of photoelectric instruments and equipment.



710nm Dichroic Short Pass Filters Customized Size For Biomedical Cosmetology

Center wavelength: 710 + / - 5nm
Transmission band: 300-700nm
Block:720-1100nm
Peak transmittance: > 90%
Product size: Customized
Cut off depth:OD3-OD6
Product material: optical grade glass (K9, BK7, B270, d263t, JGS1, color glass, float glass, etc.)
Surface quality: 60/40






Production Line

710nm Dichroic Short Pass Filters Customized Size For Biomedical Cosmetology
