Crystal Optical Calcium Fluoride Ir Window Used In Infrared Flame Detector

Basic Information
Place of Origin: Wuhan,China
Brand Name: Wuhan Siwer Optics
Model Number: Plano surface window
Minimum Order Quantity: 5 pieces
Price: 5-98USD/piece
Packaging Details: 1.Tissue paper. 2.Plastic foam packaging film. 3.Hard carton box with quakeproof filler
Delivery Time: 3-5 weeks
Payment Terms: T/T, Western Union
Supply Ability: 1000 pieces/month
Detail Information
Material: Calcium Fluoride(CaF2) Size Tolerance: +/-0.1mm
Chamfer: 0.2-0.5mm Surface Quality: 60/40
Surface Flatness: Lambda/4 In 25.4mm Parallelism: 0.02mm
Standard Coating: Uncoated Or Customized Size Range: 3-120mm
Usage: UV And IR Optica Viewport Windows
High Light:

ir window


infrared system protectd window

Product Description

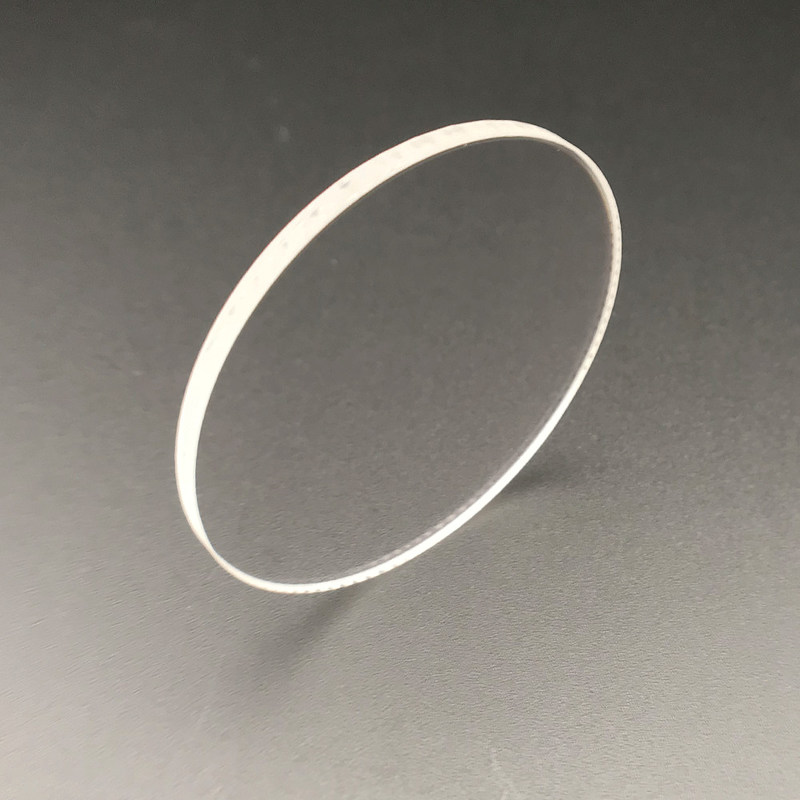

Single Crystal CaF2 Window


Calcium Fluoride is used for optical windows, drilled discs, lenses and prisms in transmision range 0.15-9µm. Degradation due to to moisture in the atmosphere is minimal, and polished surfaces of the CaF2 windows may be expected to withstand several years exposure to normal atmospheric conditions.

Since they are nonaxial, CaF2 crystals do not require consideration of axial direction. Because of CaF2 low refractive index, Calcium Fluoride windows can be used without an anti-reflection coating.

Typical applications: VUV - UV - IR imaging systems, excimer laser windows, CaF2 viewport, Spectroscopic windows and lenses.We produce CaF2 windows and mirrors for European manufacturers of gas detectors and gas analyzers.


Optical Properties of CaF2 Window

Material Calcium Fluoride
Diameter Tolerance +0.0/-0.1 mm
Thickness Tolerance ±0.1 mm
Parallelism 1 arc min
Surface Quality 60-40 Scratch-Dig
Surface Flatness
(Plano Side)
λ/2 at 633nm
Surface Irregularity
(Peak to Valley)
λ/2 at 633nm
Clear Aperture 90%


Calcium Fluoride properties

Chemical Formula CaF2
Crystal Class Cubic, cleaves [111] plane
Lattice Constant, Å 5.46
Density, g/cm3 (20 °C) 3.18
Molecular Weight 78.08
Reflection Loss 5.4% at 5 μm
Absorption Coefficient 7.8 x 10-4 cm-1 @ 2.7 μm
Dielectric Constant for 105 Hz 6.76
Melting Temperature, K 1630
Thermal Conductivity, W/(m K) at 273 K 10
Thermal Expansion, 1/K at 300 K 18.9 x 10-6
Specific Heat, cal/(g K) at 273 K 0.204
Debye Temperature, K 510
Young's Modulus, GPa 75.79
Rupture Modulus, GPa 0.0365
Shear Modulus, GPa 33.76
Bulk Modulus, GPa 83.03
Poisson's Ratio 0.28
Knoop Hardness, kg/mm2 178 [100], 160 [110]
