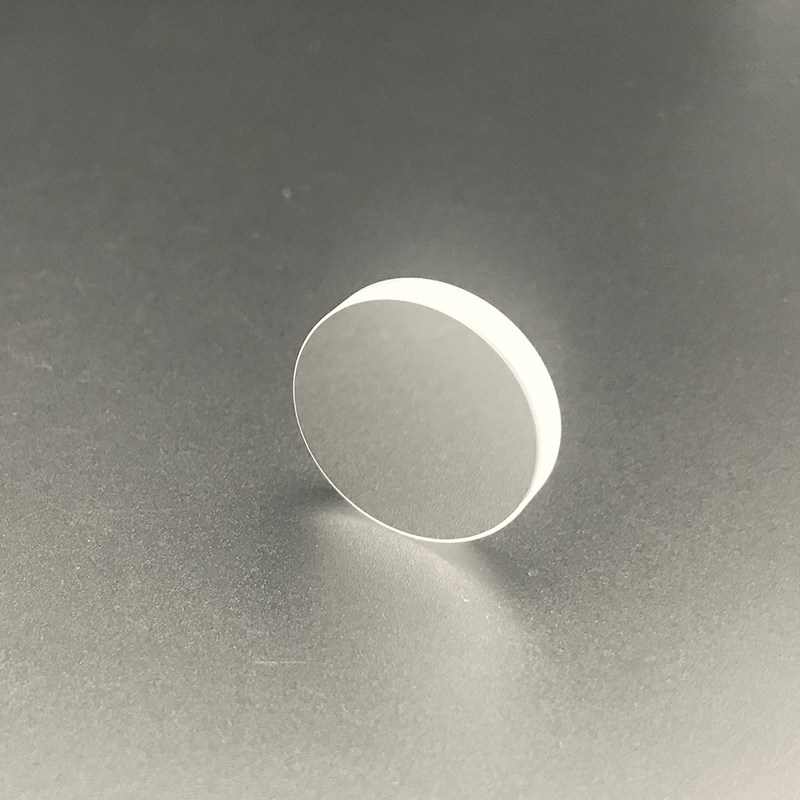

High Reflective Aluminum Coating Custom Optical Mirror 2-300mm Size Range

Basic Information
Place of Origin: Wuhan,China
Brand Name: Wuhan Precision Optical Components Inc
Model Number: Concave Aluminum Coating Mirror
Minimum Order Quantity: 5 pieces
Price: 2-200USD/piece
Packaging Details: 1.Tissue paper. 2.Plastic foam packaging film. 3.Hard carton box with quakeproof filler
Delivery Time: 1-3 weeks
Payment Terms: T/T, Western Union
Supply Ability: 2000 pieces/month
Detail Information
Material: Fused Silica Or Other Optical Glass Size Tolerance: +/-0.1mm
Thickness Tolerance: +/-0.1mm Surface Quality: 40/20
Surface Accuracy: Lambda/4 In 25.4mm Centration: 2 Arc Min
Size Range: 2-300mm
High Light:

beam splitter mirror

,

metallic coated mirror


Product Description

Optical Coating Mirrors

Optical Mirrors are designed to reflect light for a variety of applications, including beam steering, interferometry, imaging, or illumination. Optical Mirrors are used in a wide range of industries, such as life sciences, astronomy, metrology, semiconductor, or solar.

We can produce a range of laser, flat, metal substrate, focusing, or specialty Optical Mirrors in a multitude of reflective coating options, including Protected Aluminum, Enhanced Aluminum, Protected Silver, Protected Gold, or Dielectric. Choosing the proper reflective coating option ensures high reflectivity of the needed wavelength or wavelength range. Optical Mirrors designed for laser applications are optimized for the given laser wavelength. Additionally, Optical Mirrors designed for lasers feature damage thresholds that are suitable for the designated laser. Metal substrate Optical Mirrors are ideal for applications requiring a constant coefficient of thermal expansion between the Optical Mirror and the mount. Optical Mirrors with a concave surface are ideal for light focusing applications.





Metallic Coated Mirror N-BK7 ; UV Fused Silica ,B270 ,borosilicate glass
Material:
Size: upon your request
Tolerance: +/-0.05mm to +/-0.1mm
Surface quality: 60/40
Clear Aperture: >85%
Flatness: lambda/4 per 25mm@633nm
Parallelism: <3'
Bevel: <0.25mm X 45°
Coating: One surface(S1) :Polished and Metallic coating (Al, Ag, Au)
The other surface :Fine ground
Protected Aluminum :Ravg> 85%@400nm-800nm
VIS Enhanced Aluminum :Ravg> 90% @450nm-750nm
UV Enhanced Aluminum :Ravg > 80%@250nm-400nm
Protected Silver :Ravg > 90% @400nm-20μm
Protected Gold :Ravg > 94% @650nm-16μm










Production process

High Reflective Aluminum Coating Custom Optical Mirror 2-300mm Size Range 0



What's the way of shipping?
We accept DHL, Fedex, TNT, UPS, SF, EMS etc. If you have your own express account, it's great.



How to pay?

(1) T/T, PayPal, West Union,etc

(2) Bank Fee: West Union-USD30.00(≤USD3000.00),

T/T-USD20.00+, PayPal-5%. Please consult the local bank.


What's the deliver time?
For inventory: the delivery time is around 5 workdays.

Customized products: the delivery time is 10 to 30 workdays. According to the quantity and precision.

Can I customize the products based on my need?
Yes, we can customize the material, specifications and optical coating for your optical components based on your needs. OEM is available.
