Deflection Optical Glass Prism Custom Size Angle Material Shape And Coatings

Basic Information
Place of Origin: Wuhan,China
Brand Name: Wuhan Siwer Optics
Minimum Order Quantity: 4 pieces
Price: 8-50 USD/piece
Packaging Details: 1.Tissue paper. 2.Plastic foam packaging film. 3.Hard carton box with quakeproof filler
Delivery Time: 4-6weeks
Payment Terms: T/T, Western Union
Supply Ability: 300 pieces/month
Detail Information
Material: Optical Glass,BK7,SF,etc. Size Tolerance: +/-0.1mm
Chamfer: 0.2-0.5mm Surface Quality: 60/40
Surface Flatness: Lambda/2 In 25.4mm Angle Tolerance: 3 Arc Min
Standard Coating: Customized Size Range: 5-150mm
High Light:

optical glass triangular prism

,

optical wedge prism


Product Description



Deflection Optical Prism

Optical Prisms are used to redirect light at a designated angle. Optical Prisms are ideal for ray deviation, or for adjusting the orientation of an image. An Optical Prism’s design determines how light interacts with it. When light enters an Optical Prism, it either reflects off an individual surface or several surfaces before exiting, or is refracted as it travels through the substrate.



Our professional testing and inspection methods have guaranteed the high quality of every product we offer.

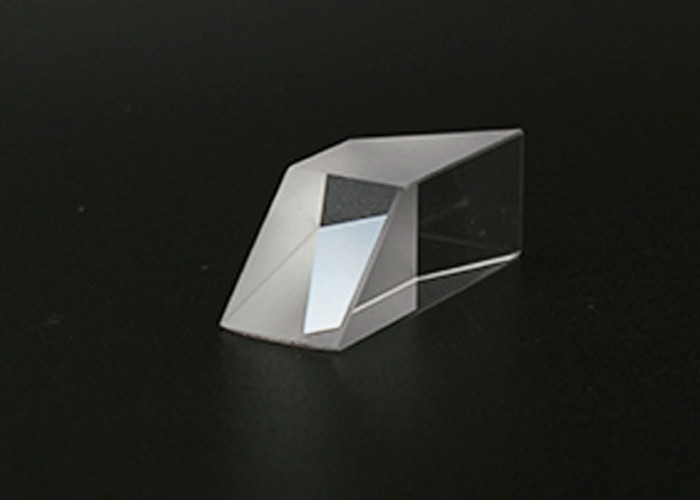

Deflection Optical Glass Prism Custom Size Angle Material Shape And Coatings 0

Optical Properties of Optical Prism

Material Optical glass(N-BK7,Fused Silica etc.)
Diameter Tolerance +0.0/-0.1 mm
Roof angle Tolerance ±5 arc sed
Standard Angle Tolerance 3 arc min
Surface Quality 40/20 Scratch-Dig
Surface Flatness
(Plano Side)
λ/2 at 633nm
Surface Irregularity
(Peak to Valley)
λ/8 at 633nm
Optical Coating AR,HR,Metallic Reflective coatings



Related Prisms

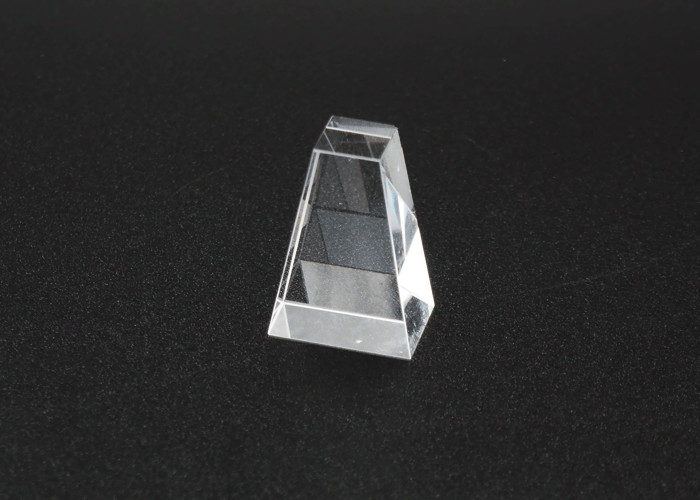

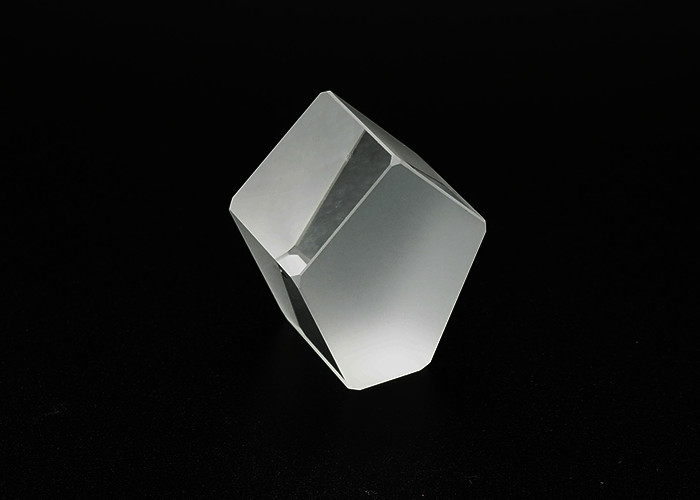

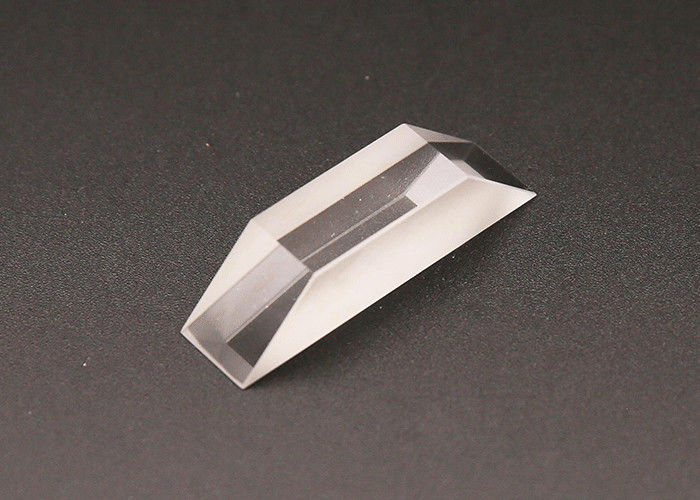

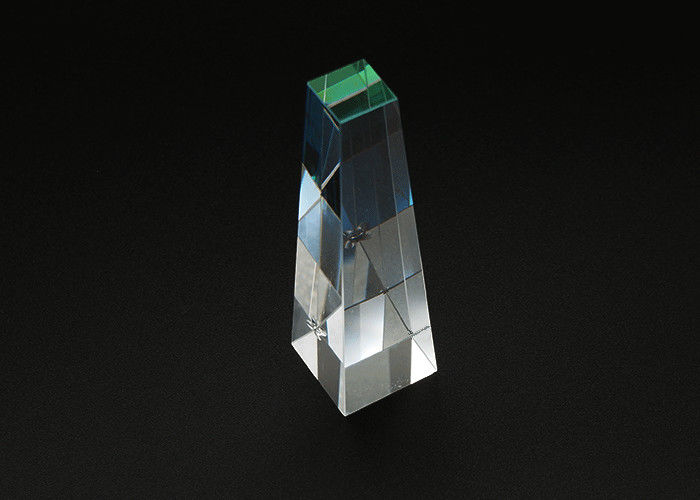

Deflection Optical Glass Prism Custom Size Angle Material Shape And Coatings 1

Production Line

Deflection Optical Glass Prism Custom Size Angle Material Shape And Coatings 2
