| Place of Origin: | Wuhan,China |
|---|---|
| Brand Name: | Wuhan Siwer Optics |
| Model Number: | Customized |
| Minimum Order Quantity: | 4 pieces |
| Price: | 8-50 USD/piece |
| Packaging Details: | 1.Tissue paper. 2.Plastic foam packaging film. 3.Hard carton box with quakeproof filler |
| Delivery Time: | 4-6weeks |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 300 pieces/month |
| Material: | Optical Glass | Size Tolerance: | +/-0.1mm |
|---|---|---|---|
| Chamfer: | No Chamfer | Surface Quality: | 60/40,40/20 |
| Surface Flatness: | Lambda/2 In 25.4mm | Angle Tolerance: | 3 Arc Min |
| Standard Coating: | Customized | Size Range: | 5-150mm |
| High Light: | optical glass triangular prism,optical wedge prism |
||

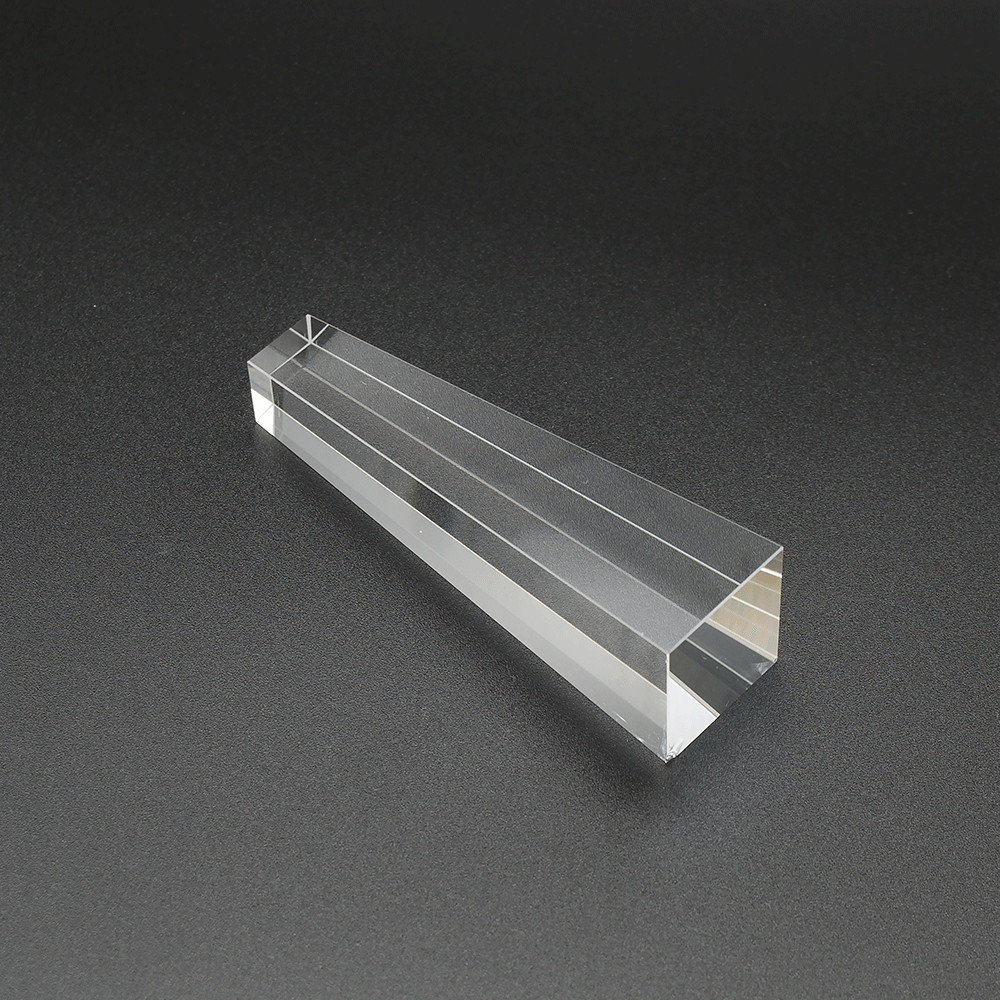

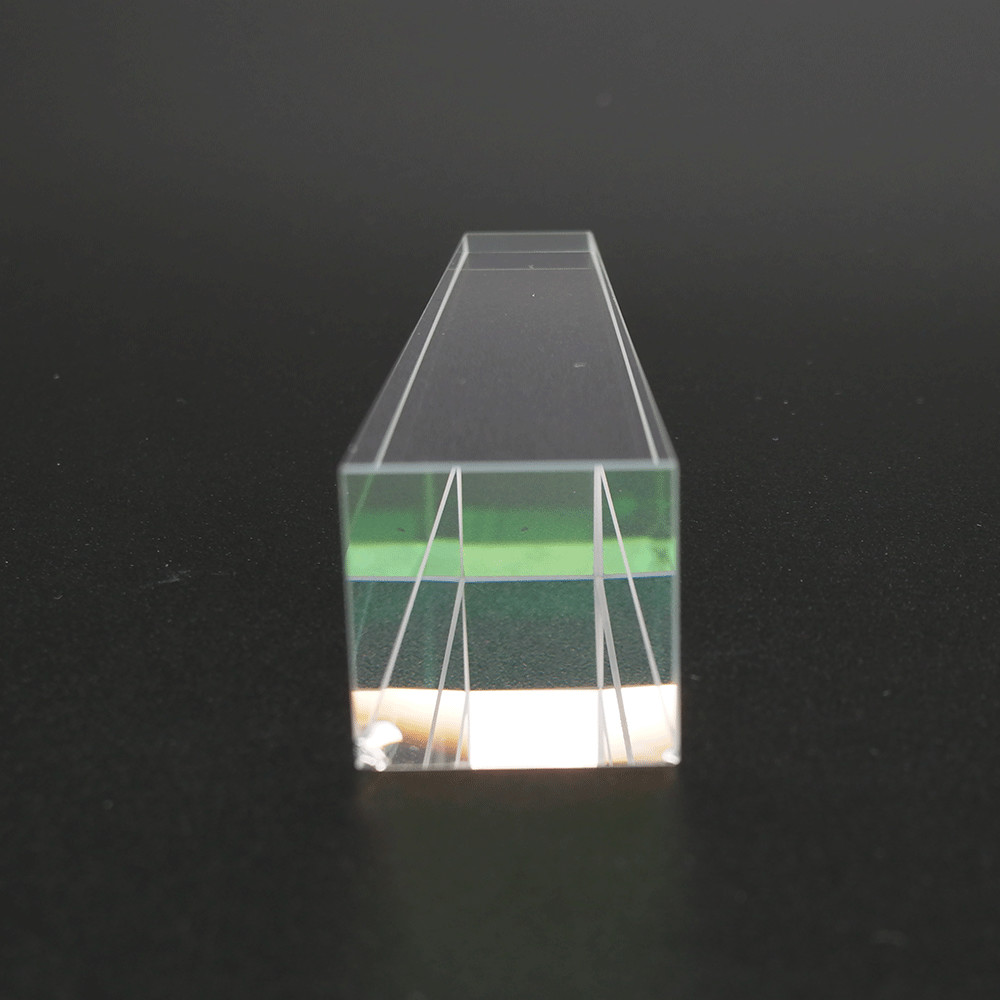

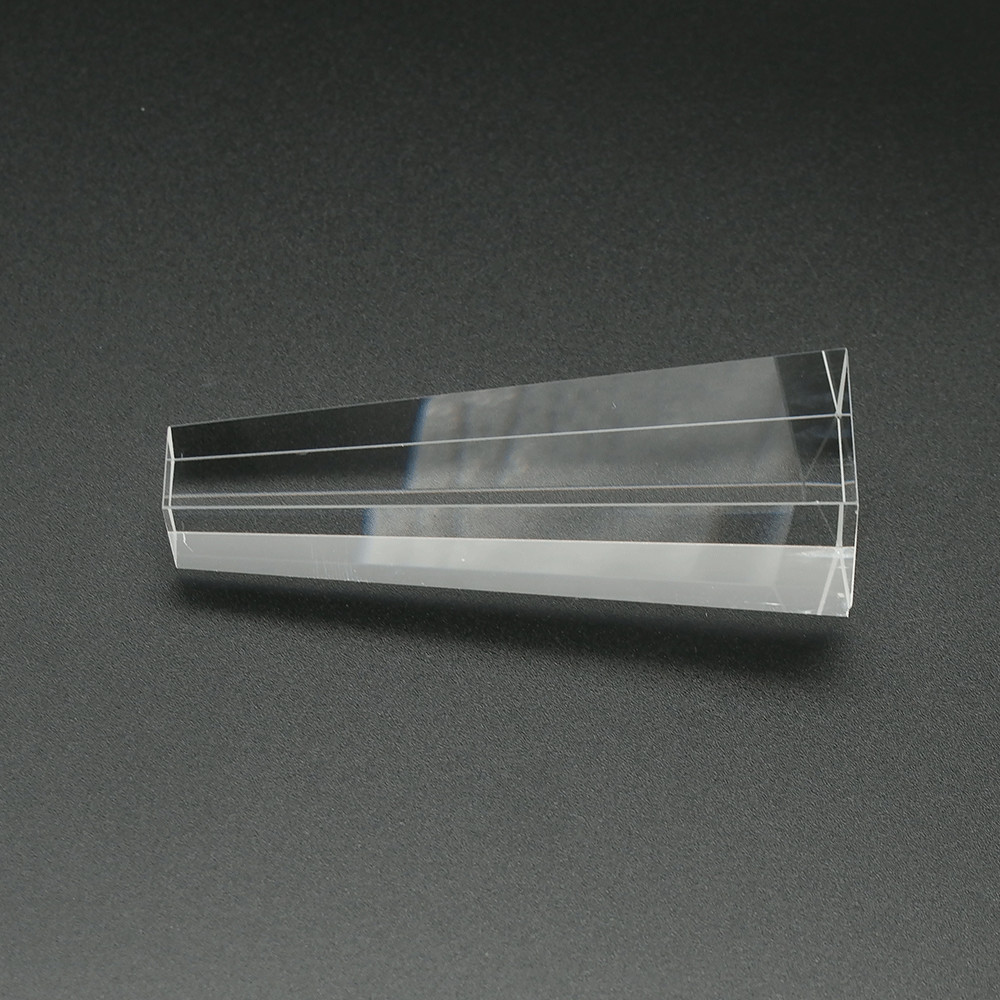

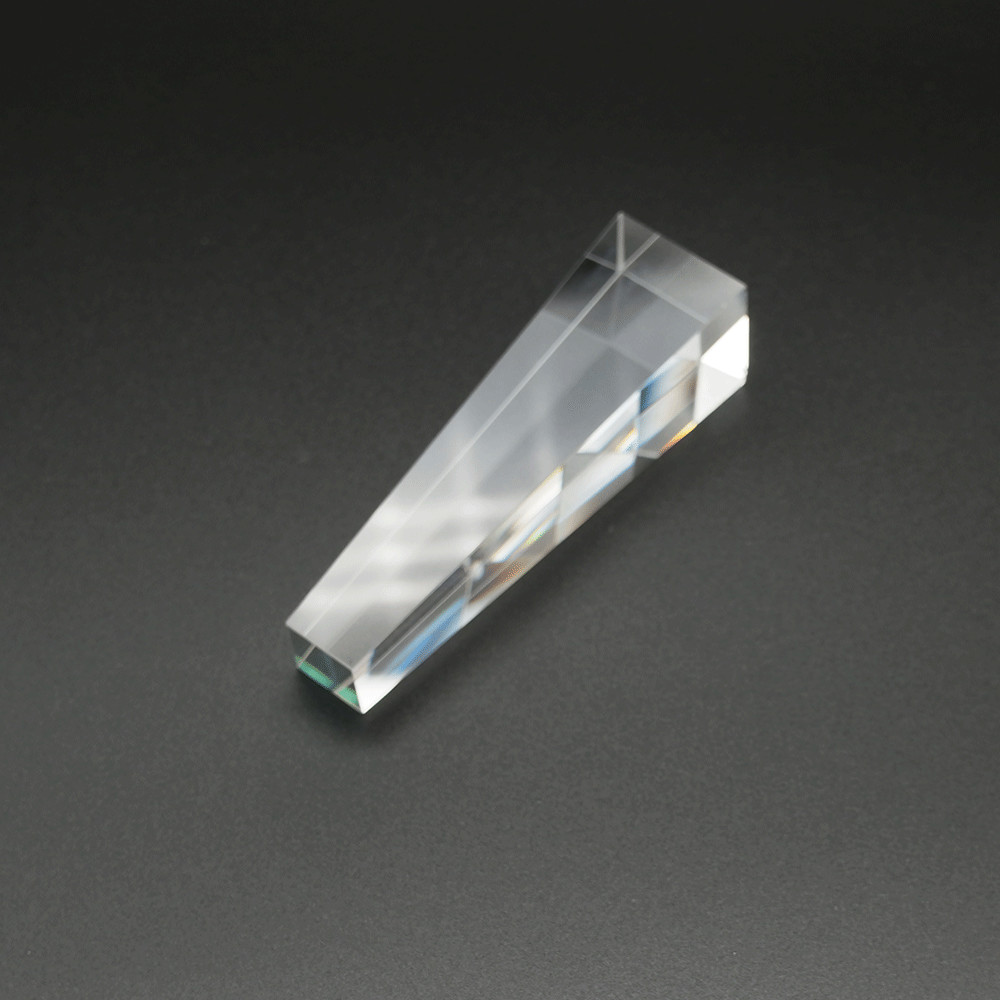

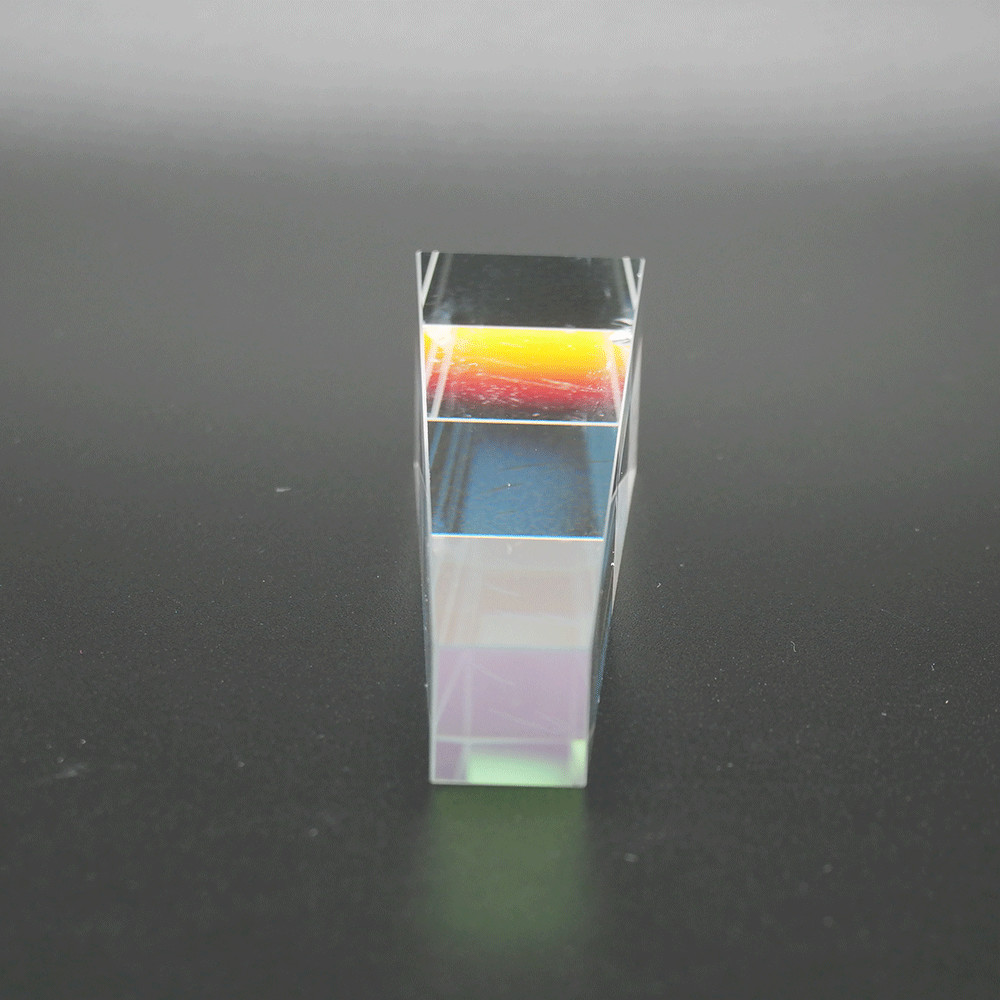

Light Guide Prism
Light Guide Prism uses the principle of total reflection of light inside the prism to efficiently guide the light into the place pointed by the prism.
In order to prevent light escaping from the prism,the edges should not have a chamfer.
Siwer Optics has experience to produce this light guide prism for years.
Our unique production technology solves the problem of prism edge breaking,It improves the yield of prism.
Optical Properties of Optical Prism
| Material | Optical glass(N-BK7,Fused Silica etc.) |
| Diameter Tolerance | +0.0/-0.1 mm |
| Roof angle Tolerance | ±5 arc sed |
| Standard Angle Tolerance | 3 arc min |
| Surface Quality | 40/20 Scratch-Dig |
| Surface Flatness (Plano Side) |
λ/2 at 633nm |
| Surface Irregularity (Peak to Valley) |
λ/8 at 633nm |
| Optical Coating | AR,HR,Metallic Reflective coatings |
