Home > Products> Optical Glass Prism> High Performance Optical Glass Prism BK7 Unmounted Penta Prisms

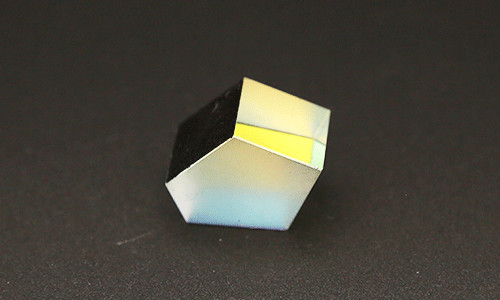

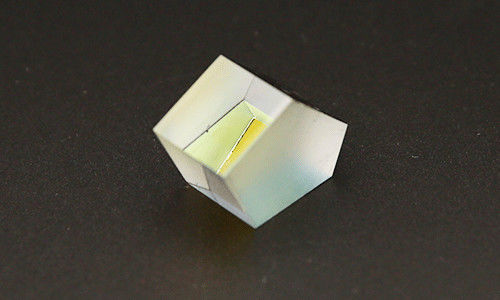

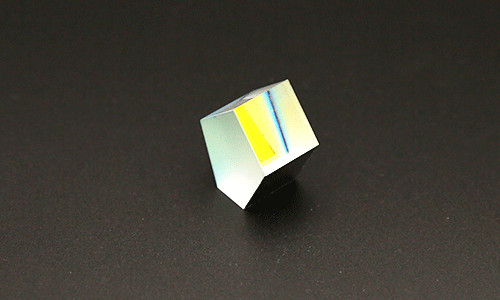

High Performance Optical Glass Prism BK7 Unmounted Penta Prisms

High Performance Optical Glass Prism BK7 Unmounted Penta Prisms
High Performance Optical Glass Prism BK7 Unmounted Penta Prisms High Performance Optical Glass Prism BK7 Unmounted Penta Prisms High Performance Optical Glass Prism BK7 Unmounted Penta Prisms High Performance Optical Glass Prism BK7 Unmounted Penta Prisms
Basic Information
Place of Origin: Wuhan,China
Brand Name: Wuhan Siwer Optics
Model Number: Penta prism
Minimum Order Quantity: 20 pieces
Price: 20-80 USD/piece
Packaging Details: 1.Tissue paper. 2.Plastic foam packaging film. 3.Hard carton box with quakeproof filler
Delivery Time: 4-6weeks
Payment Terms: T/T, Western Union
Supply Ability: 500 pieces/month
Get Best Price Contact Now
Detail Information
Material: N-BK7 Or Other Optical Glass Size Tolerance: +/-0.1mm
Chamfer: 0.2-0.5mm Surface Quality: 60/40
Surface Flatness: Lambda/2 In 25.4mm Deflection Angle: 90deg +/-30 Arc Seconds
Coating: AR And Aluminized Coating Size Range: 5-80mm
High Light:

optical glass triangular prism

,

optical wedge prism

Product Description

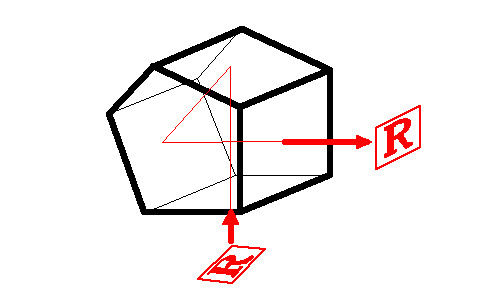

Penta Prism

  • Material: N-BK7, Grade A Fine Anneal
  • Surface Flatness: λ/10 (Over the Clear Aperture)
  • Surface Quality: 40-20 Scratch-Dig
  • Clear Aperture: 70% of Entrance Face Dimensions
  • Reflective Coating: Aluminized with Inconel and Black Paint Overcoat
  • Dimensional Tolerance: ±0.1 mm
  • Beam Deviation: 90° ± 30 arc sed
High Performance Optical Glass Prism BK7 Unmounted Penta Prisms 0



Production Line

High Performance Optical Glass Prism BK7 Unmounted Penta Prisms 1



Related Prisms

High Performance Optical Glass Prism BK7 Unmounted Penta Prisms 2




Tag:

optical glass triangular prism,

optical wedge prism,

optical cube prism
