High Precision Dichroic Optical Glass Prism Cube Beam Splitter

Basic Information
Place of Origin: Wuhan,China
Brand Name: Wuhan Siwer Optics
Model Number: PBS
Minimum Order Quantity: 20 pieces
Price: 20-80 USD/piece
Packaging Details: 1.Tissue paper. 2.Plastic foam packaging film. 3.Hard carton box with quakeproof filler
Delivery Time: 4-6weeks
Payment Terms: T/T, Western Union
Supply Ability: 500 pieces/month
Detail Information
Material: N-BK7 Or H-K9L Size Tolerance: +/-0.1mm
Chamfer: 0.2-0.5mm Surface Quality: 60/40
Surface Flatness: Lambda/2 In 25.4mm Angle Tolerance: 3 Arc Min
Standard Coating: Customized Size Range: 5-150mm
High Light:

optical glass triangular prism

,

optical wedge prism


Product Description

Dichroic Optical prism

A dichroic prism is a prism that splits light into two beams of differing wavelength (colour). A trichroic prism assembly combines two dichroic prisms to split an image into 3 colours, typically as red, green and blue of the RGB colour model. They are usually constructed of one or more glass prisms with dichroic optical coatings that selectively reflect or transmit light depending on the light's wavelength. That is, certain surfaces within the prism act as dichroic filters. These are used as beam splitters in many optical instruments.

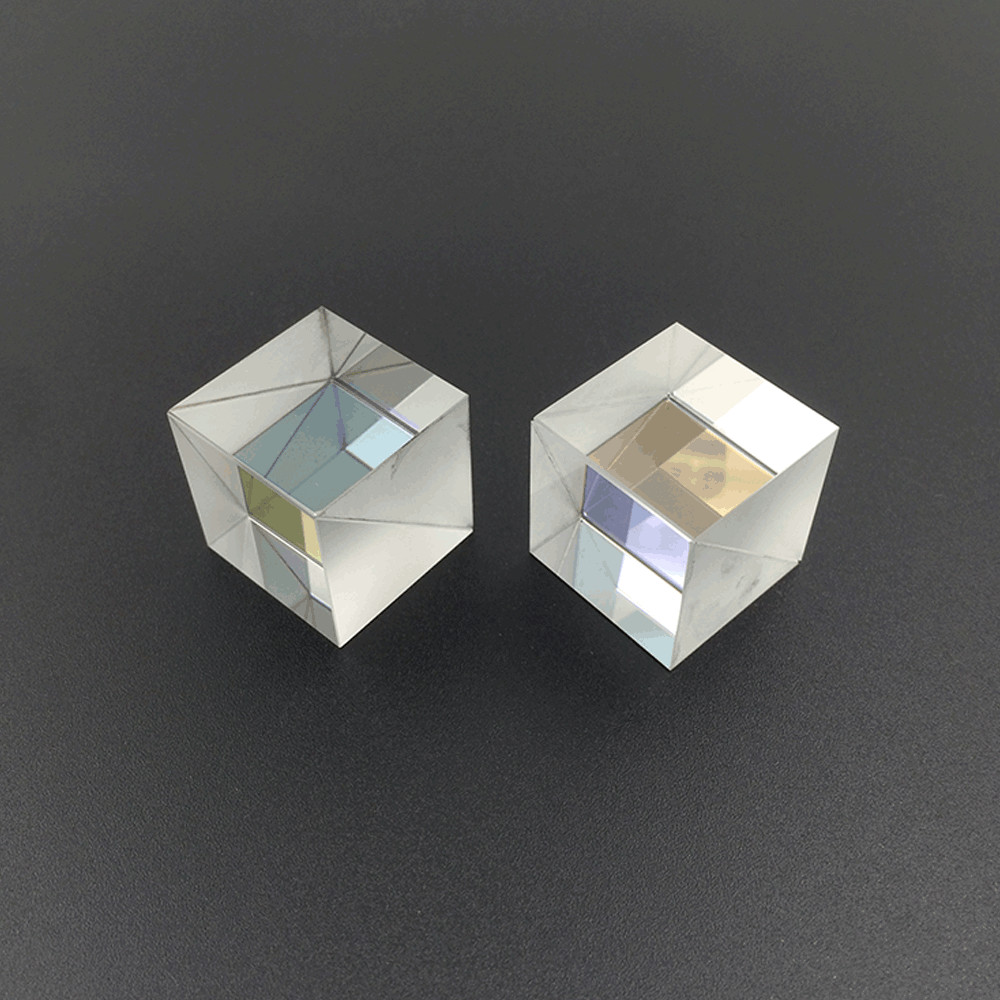

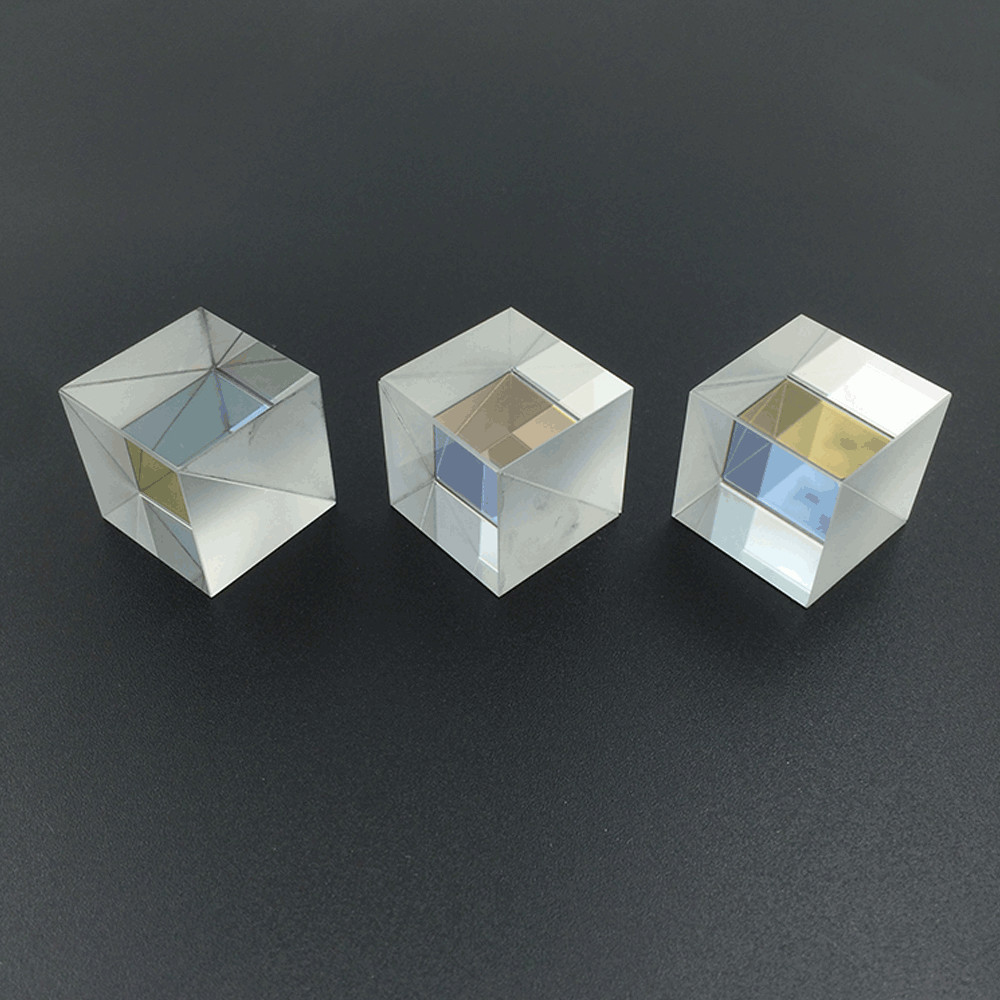

High Precision Dichroic Optical Glass Prism Cube Beam Splitter 0 High Precision Dichroic Optical Glass Prism Cube Beam Splitter 1








Production Line

High Precision Dichroic Optical Glass Prism Cube Beam Splitter 2


Related Prisms

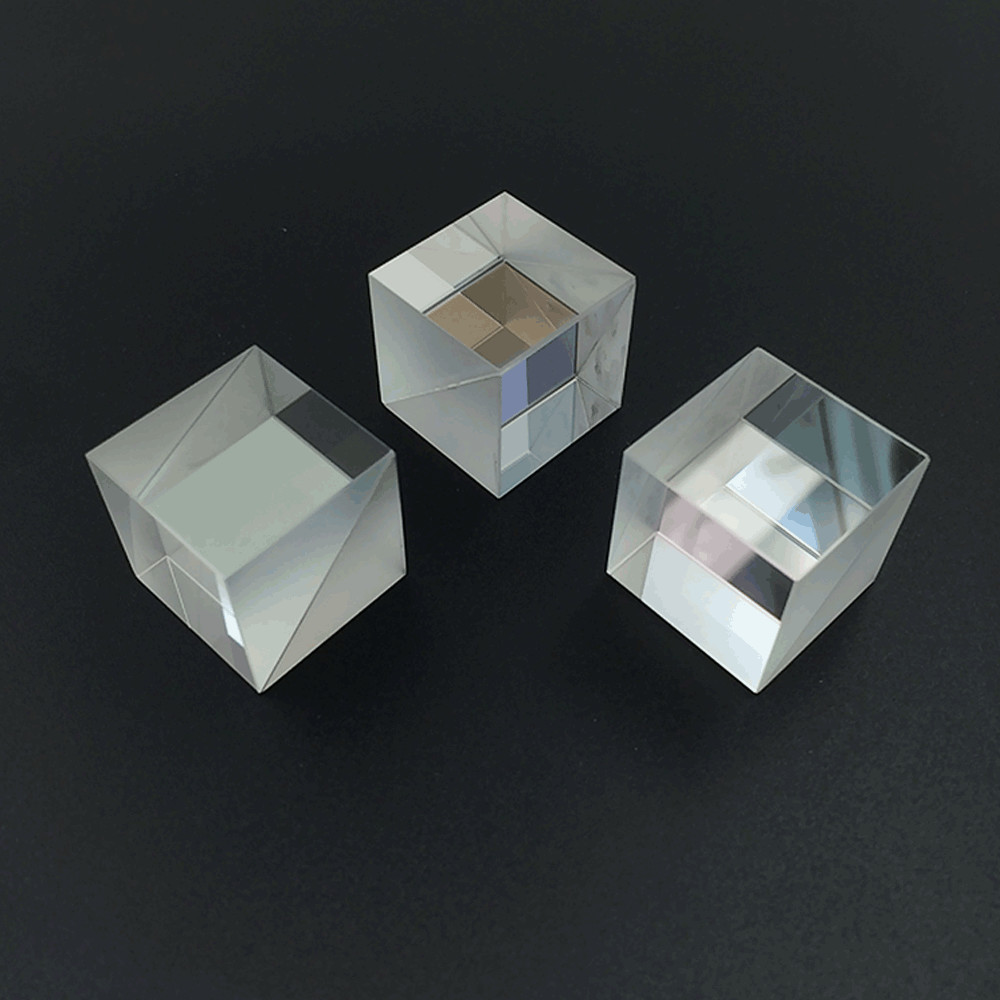

High Precision Dichroic Optical Glass Prism Cube Beam Splitter 3



What's the way of shipping?
We accept DHL, Fedex, TNT, UPS, SF, EMS etc. If you have your own express account, it's great.



How to pay?

(1) T/T, PayPal, West Union,etc

(2) Bank Fee: West Union-USD30.00(≤USD3000.00),

T/T-USD20.00+, PayPal-5%. Please consult the local bank.


What's the deliver time?
For inventory: the delivery time is around 5 workdays.

Customized products: the delivery time is 10 to 30 workdays. According to the quantity and precision.

Can I customize the products based on my need?
Yes, we can customize the material, specifications and optical coating for your optical components based on your needs. OEM is available.
