N-BK7 Polarizing Beamsplitter Cube(PBS) Prism

Basic Information
Place of Origin: Wuhan,China
Brand Name: Wuhan Siwer Optics
Model Number: PBS
Minimum Order Quantity: 20 pieces
Price: 20-80 USD/piece
Packaging Details: 1.Tissue paper. 2.Plastic foam packaging film. 3.Hard carton box with quakeproof filler
Delivery Time: 4-6weeks
Payment Terms: T/T, Western Union
Supply Ability: 500 pieces/month
Detail Information
Material: N-BK7 Or H-K9L Size Tolerance: +/-0.1mm
Chamfer: 0.2-0.5mm Surface Quality: 60/40
Surface Flatness: Lambda/2 In 25.4mm Angle Tolerance: 3 Arc Min
Standard Coating: Customized Size Range: 5-150mm
High Light:

optical cube prism


optical wedge prism

Product Description

N-BK7 Polarizing Beamsplitter Cube(PBS)

Polarizing Cube Beamsplitters split randomly polarized beams into two orthogonal,linearly,polarized components. S-polarized light is reflected at a 90deg.Angle while P-polarized light is transmitted. Each beamsplitter consists of a pair of precision high tolerance right angle prisms cemented together with a dielectric coating on the hypotenuse of one of prisms.

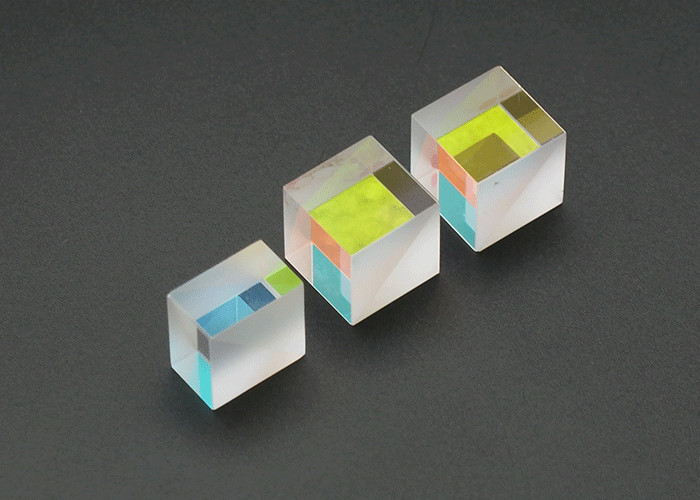

N-BK7 Polarizing Beamsplitter Cube(PBS) Prism 0 N-BK7 Polarizing Beamsplitter Cube(PBS) Prism 1 N-BK7 Polarizing Beamsplitter Cube(PBS) Prism 2


Material BK7, SF glass
Dimension Tolerance ±0.2mm
Extinction Ratio >100:1 for broadband, >500:1 for narrow band
Surface Quality 60/40 scratch and dig
Clear Aperture >90%
Beam Deviation <3 arc minutes
Flatness λ/4@632.8nm per 25mm
Principal Transmittance Narrow: Tp>95% and Ts<1%
Broad: Tp>90% and Ts<1%
Principal Reflectance Narrow: Rs>99% and Rp<5%
Broad: Rs>99% and Rp<10%
Coating Polarization beamsplitter coating on hypotenuse face
AR coating on all input and output faces
Damage Threshold >500mJ/cm2, 20ns, 20Hz, @1064nm


Standard Sizes: 10*10*10mm
Standard Wavelength: 450-650nm
