| Place of Origin: | Wuhan,China |
|---|---|
| Brand Name: | Wuhan Siwer Optics |
| Model Number: | Customized |
| Minimum Order Quantity: | 4 pieces |
| Price: | 8-50 USD/piece |
| Packaging Details: | 1.Tissue paper. 2.Plastic foam packaging film. 3.Hard carton box with quakeproof filler |
| Delivery Time: | 4-6weeks |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 2000 pieces/month |
| Material: | Optical Glass(BK7 ,k9,Ge,Si,Caf2 Etc.) | Size: | 5+/-0.1mm |
|---|---|---|---|
| Chamfer: | 0.2-0.3mm | Surface Quality: | 60/40,40/20 |
| Surface Flatness: | Lambda/2 In 25.4mm | Angle Tolerance: | 3 Arc Min |
| Standard Coating: | AR And HR | Size Range: | 5-150mm |
| High Light: | optical glass triangular prism,optical wedge prism |
||

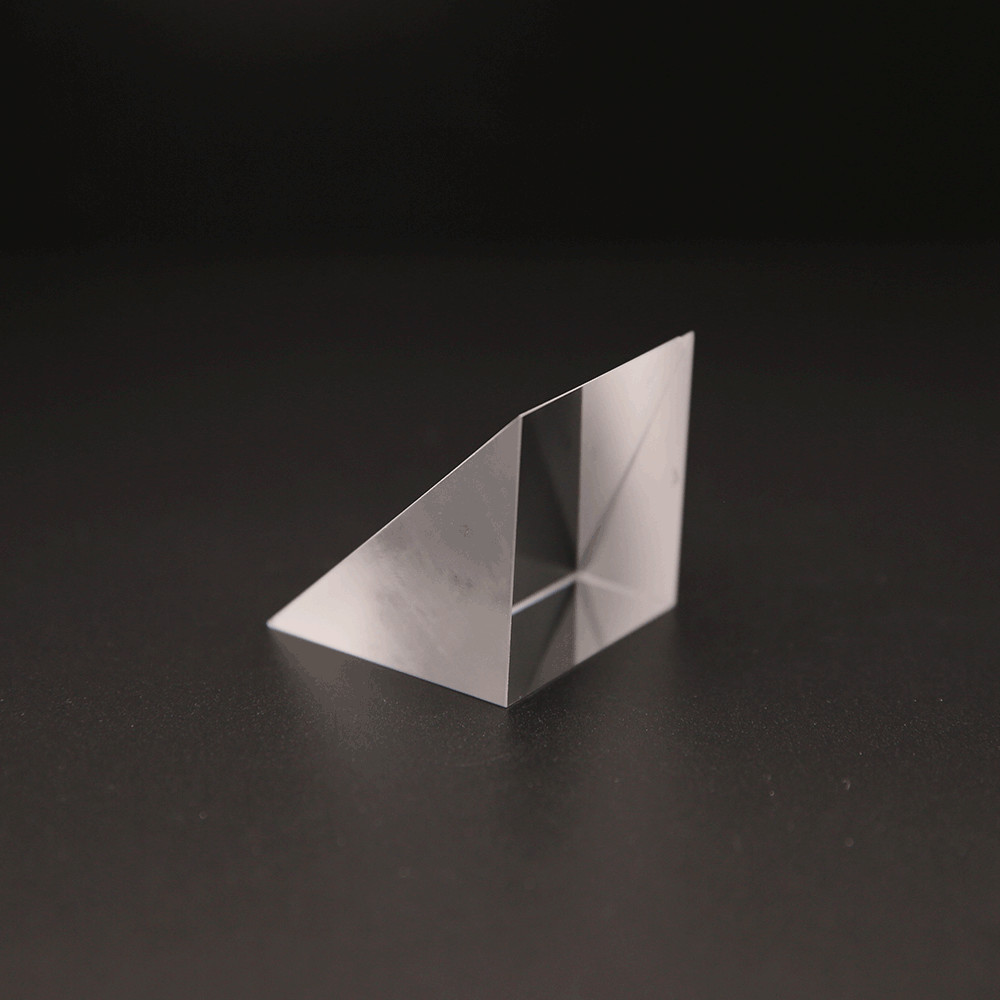

Right-angle prisms are often used to turn the light path or deflect the image created by the optical system by 90°. Depending on the orientation of the prism, the image can be left and right consistent, upside down and up and down.
The right-angle prism itself has a large contact area and a typical angle of 45° and 90°. Therefore, the right-angle prism is easier to install than a normal mirror, and has better stability and strength to mechanical stress. They are the best choice for optics for all types of devices and instruments.
Optical Properties of Optical Prism
| Material | Optical glass(N-BK7,Fused Silica etc.) |
| Diameter Tolerance | +0.0/-0.1 mm |
| Roof angle Tolerance | ±5 arc sed |
| Standard Angle Tolerance | 3 arc min |
| Surface Quality | 40/20 Scratch-Dig |
| Surface Flatness (Plano Side) |
λ/2 at 633nm |
| Surface Irregularity (Peak to Valley) |
λ/8 at 633nm |
| Optical Coating | AR,HR,Metallic Reflective coatings |
Related Prisms
Production Line
|
Q: What's the way of shipping and cost? (1) We accept DHL, Fedex, TNT, UPS, EMS, SF and etc. (2) If you have your own express number, it's great. (3) Freight=USD35.0(the first weight) + USD12.0/kg
Q: How to pay? (1) T/T, PayPal, West Union, etc.. (2) Bank Fee: West Union-USD30.00(≤USD3000.00), T/T-USD20.00+, PayPal-5%. Please consult the local bank.
Q: What's the deliver time? (1) For inventory: the delivery time is 5 workdays.
Q: Can I customize the products based on my need? Yes, we can customize the material, specifications and optical coating for your optical components based on your needs. |
