| Place of Origin: | Wuhan,China |
|---|---|
| Brand Name: | Wuhan Siwer Optics |
| Minimum Order Quantity: | 5 pieces |
| Price: | 1-99USD/piece |
| Packaging Details: | 1.Tissue paper. 2.Plastic foam packaging film. 3.Hard carton box with quakeproof filler |
| Delivery Time: | 1-3 weeks |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 2000 pieces/month |
| Material: | Fused Silica Or Other Optical Glass | Size Tolerance: | +/-0.1mm |
|---|---|---|---|
| Thickness Tolerance: | +/-0.05mm | Surface Quality: | 40/20 |
| Transmitted Wavefront,: | Lambda/4 In 25.4mm | Parallelism: | 1 Arc Min |
| Size Range: | 2-70mm | Usage: | Biomedical Cosmetology,fingerprint Identification And Digital Image |
| High Light: | long pass optical filter,long wave pass filter |
||

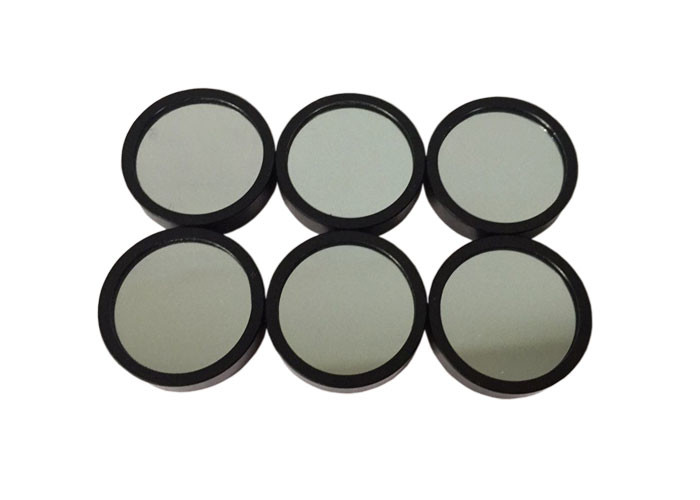

As an important optical element, long-pass filter has been widely used in digital image, biomedical cosmetology, fingerprint recognition and other fields. Its characteristic is to let the light in one band pass through while the light in another band cut off. The long-pass and short-pass filters have the characteristics of high throughput, wide cut-off band and good film firmness. The filter products are manufactured according to the customer's requirements.
Longpass filters feature high transmission in the pass band combined with superior blocking in the rejection band. With a rejection band optical density of 4.0 combined with >91% in the pass band these filters are ideal for a wide variety of applications.
Center wavelength: 750 + / - 5nm
Transmission band: 760nm-1100nm
Cut off band: 200nm-740nm
Peak transmittance: > 90% (according to customer demand)
Product size: (according to customer requirements)
Cut off depth:OD3-OD6 uv-nir
Product material: optical grade glass (K9, BK7, B270,Fused Silica, color glass, float glass, etc.)
Surface quality: 60/40
| Item | Size(mm) | Unit price(USD) |
| 850nm Narrow band pass filter | Φ4.2*1.1 | 10 |
| Φ4.5*0.55 | 10 | |
| Φ6*2 | 10 | |
| Φ8*0.55 | 4 | |
| Φ8*1.1 | 4 | |
| Φ10.4*1 | 5 | |
| Φ14*1 | 10 | |
| Φ15*1.1 | 10 | |
| Φ17*0.7 | 14 | |
| Φ20*0.55 | 14 | |
| Φ23*1.1 | 21 | |
| Φ25*0.55 | 14 | |
| Φ27*1.2 | 26 | |
| Φ29*1.7 | 26 | |
| Φ34*1 | 51 | |
| Φ37.5*1.2 | 26 | |
| 4.5*4.5*0.55 | 3 | |
| 6.2*6.2*0.5 | 3 | |
| 7*2*1 | 10 | |
| 8.2*8.2*0.55 | 4 | |
| 8.5*2*1 | 10 | |
| 10*10*0.55 | 5 | |
| 10*7.5*0.55 | 8 | |
| 14*14*1.1 | 8 | |
| 14*7*1.1 | 8 | |
| 16.9*16.9*1 | 21 | |
| 17*17*0.55 | 21 | |
| 17.8*17.8*0.55 | 21 | |
| 15.5*8*1.1 | 21 | |
| 23.5*15.6*1.1 | 21 | |
| 27*20*0.6 | 26 | |
| 30.5*23*0.6 | 26 | |
| 35*2*1 | 21 | |
| 37*8.2*0.55 | 14 | |
| 57*9*1.8 | 21 | |
| 80*14*1 | 51 | |
| 86*86*0.55 | 103 | |
| 8.2*8.2*1 | 7 | |
| 14*14*1 | 14 | |
| Item | Size(mm) | Unit price(USD) |
| 450nm narrow band pass filter | Φ3.5*1 | 14 |
| Φ5*1.5 | 10 | |
| Φ6.5*1.7 | 14 | |
| Φ8*1.1 | 17 | |
| Φ11.5*1.5 | 21 | |
| Φ15*1.5 | 21 | |
| Φ25*1.5 | 21 | |
| Φ30*1.5 | 21 | |
| Φ35*1.4 | 48 | |
| Φ36*1.5 | 48 | |
| Φ39*1.6 | 69 | |
| Φ45*1 | 86 | |
| Φ50*1.8 | 103 | |
| Φ51*1.5 | 103 | |
| 10*5*1.65 | 17 | |
| 14*14*1.1 | 21 | |
| 14*7.5*1.1 | 21 | |
| 14*8.1*1.1 | 21 | |
| 16.5*16.5*1.1 | 21 | |
| 18*18*1.7 | 21 | |
| 19.5*16.8*1.5 | 21 | |
| 30*5*1.1 | 21 | |
| 38*20*1.1 | 34 | |
| 39*23*2.2 | 48 | |
| Item | Size(mm) | Unit price(USD) |
| 625-665nm band pass filter | 4.8*2.6*1 | 10 |
| 6*4.6*1 | 3 | |
| 5*5*1.2 | 10 | |
| 6.5*6.5*1 | 3 | |
| 9*9*1 | 3 | |
| 10*10*1 | 10 | |
| 6*6*1 | 3 | |
| 9*9*1 | 3 | |
| 16*16*1.7 | 14 | |
| 16.5*16.5*1.1 | 21 | |
| 25*14*1.1 | 21 | |
| 30*30*1.7 | 21 | |
| Φ6*1 | 3 | |
| Φ8*1 | 3 | |
| Φ12*1.1 | 12 | |
| Φ16*1.1 | 12 | |
| Φ20*1.1 | 12 | |
| Φ24*1 | 14 | |
| Φ25*1.1 | 14 | |
| Φ26*1.1 | 14 | |
| Φ29*1.2 | 14 | |
| Φ30*1.1 | 14 | |
| Φ39*1.1 | 34 | |
| 600-750nm band pass filter | Φ21.5*2.3mm | 21 |
| Φ27.5*2.3mm | 21 | |
| 600-480nm band pass filter | 7.65*7.65*0.7mm | 14 |
| 420nm-620nm&850nm band pass filter | Φ8*0.55mm | 3 |
| 10*10*0.55mm | 4 | |
| 30*30*1.1mm | 7 | |
| 697nm narrow band pass filter | Φ20*1.75mm | 26 |
| 400-950nm band pass filter | 40*10*1.1mm | 21 |
| 820-1100nm band pass filter | 40*10*1.6mm | 21 |
| 970nm narrow bandpass filter | Φ19*0.7mm | 21 |
| Item | Size(mm) | Unit price(USD) |
| 520nm narrow bandpass filter | Φ14*1.1mm | 21 |
| Φ16.5*1.6mm | 21 | |
| Φ24*1.1mm | 21 | |
| Φ25*1.7mm | 21 | |
| Φ30*1.1mm | 26 | |
| Φ39*1.1mm | 71 | |
| 8*8*1.1mm | 18 | |
| 20*20*1.2mm | 21 | |
| Item | Size(mm) | Unit price(USD) |
| 689-725nm bandpass filter | Φ39*1.8mm | 49 |
| 563nm narrow bandpass filter | 80*20*1mm | 49 |
| 680-760 bandpass filter | Φ29.5*2.2mm | 21 |
| Φ12*1.8mm | 18 | |
| Φ7*2.3mm | 14 | |
| 80*8.5*1.7mm | 26 | |
| Item | Size(mm) | Unit price(USD) |
| 760-850nm bandpass filter | Φ8*1.2mm | 14 |
| 14*14*1.1 | 21 | |
| Item | Size(mm) | Unit price(USD) |
| 940nm narrow bandpass filter | Φ8*0.7mm | 7 |
| Φ10*0.55mm | 14 | |
| Φ12*1.1mm | 14 | |
| Φ15*1mm | 21 | |
| Φ22*1.1mm | 21 | |
| Φ25*1.1mm | 26 | |
| Φ28*1.1mm | 26 | |
| Φ36*1.3mm | 71 | |
| Φ39*1.5mm | 71 | |
| 10*10*0.7mm | 7 | |
| 14*6*0.6mm | 18 | |
| 14*14*0.6mm | 21 | |
| 500-550nm bandpass filter | 4.8*2.6*0.7mm | 7 |
| 6*6*1.1mm | 14 | |
| 8*8*1.65mm | 14 | |
| 11.3*1.6*1.55mm | 14 | |
| 70*20*2.5mm | 35 | |
| Φ20*2mm | 21 | |
| Φ27*1.45mm | 21 | |
| Φ36*2.45mm | 26 | |
| 450-1100nm longpass filter | Φ25*1.1mm | 21 |
| Φ35*1.3mm | 49 | |
| 420-480nm bandpass filter | 6*6*1.7mm | 14 |
| 18*18*1.6mm | 18 | |
| Φ30*1.46mm | 21 | |
| 80*39*2.3mm | 71 | |
| 80*10*1.65mm | 18 | |
| Φ8*1.7mm | 14 | |
| 10*10*2mm | 18 | |
| Φ12.5*1.5mm | 18 | |
| Φ35*1.6mm | 35 |
