Antireflective Infrared Window , 3-5um Coated Infrared Flame Detector Silicon Windows

Basic Information
Place of Origin: Wuhan,China
Brand Name: Wuhan Siwer Optics
Minimum Order Quantity: 100 pieces
Price: 6-15USD/piece
Packaging Details: 1.Tissue paper. 2.Plastic foam packaging film. 3.Hard carton box with quakeproof filler
Delivery Time: 3-5 weeks
Payment Terms: T/T, Western Union
Supply Ability: 3000 pieces/month
Detail Information
Material: Single Crystal Silicon Diameter: 19+0/-0.1mm
Thickness: 1.5+/-0.1mm Surface Quality: 60/40
Surface Flatness: Lambda/4 In 25.4mm Parallelism: 0.01mm
Standard Coating: AR/AR@4-4.5um,Tavg>96% Usage: Flame Detector
Chamfer: 0.2mm
High Light:

ir window

,

optical window


Product Description

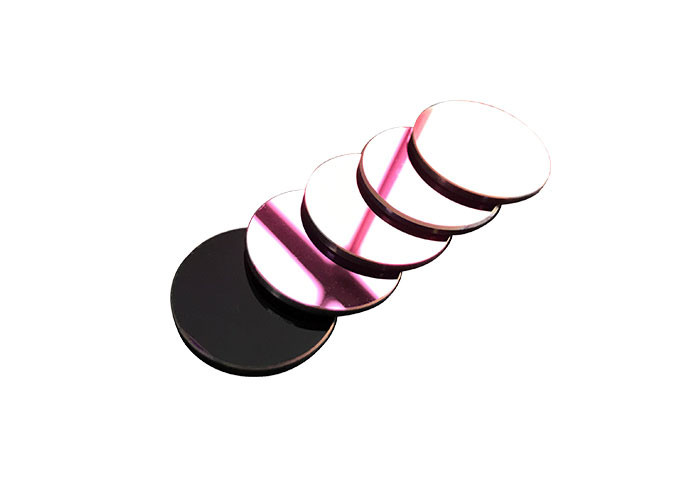

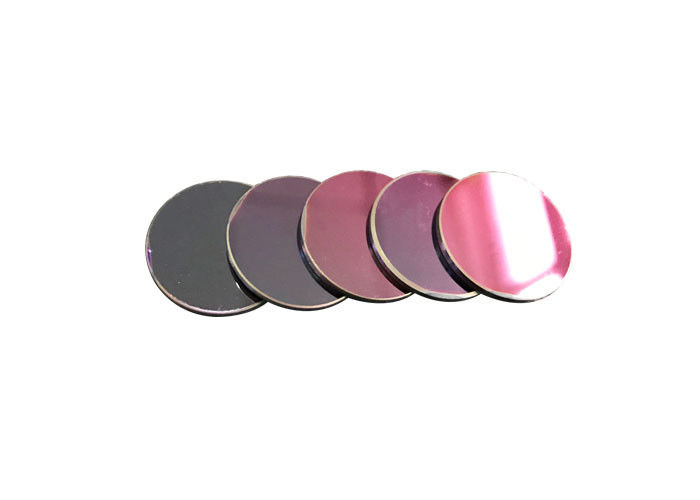

Infrared flame detector Silicon windows

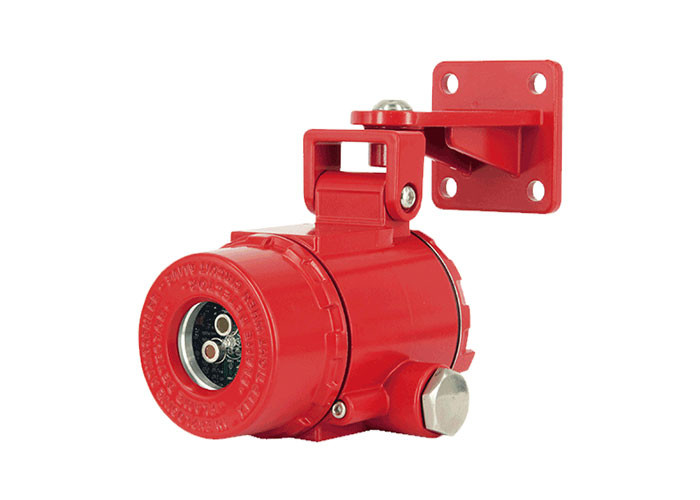

A flame detector usually needs to detect 4.4um infrared light. Our silicon protection window can not only cut off the interference light of visible light and near-infrared light, but also has a very competitive price.

Antireflective Infrared Window , 3-5um Coated Infrared Flame Detector Silicon Windows 0 Antireflective Infrared Window , 3-5um Coated Infrared Flame Detector Silicon Windows 1



Antireflective Infrared Window , 3-5um Coated Infrared Flame Detector Silicon Windows 2


Optical Properties of Silicon Window

Material Single Crystal Germanium
AR Coating Range 3-5um
Reflectance over
AR Coating Range @ 0° AOI

Ravg < 1.5%,3-5um

Transmission over
AR Coating Range @ 0° AOI
Tavg > 97%,3-5um
Diameter Tolerance +0.0/-0.1 mm
Thickness Tolerance ±0.1 mm
Parallelism 3 arc min
Surface Quality 60-40 Scratch-Dig
Surface Flatness
(Plano Side)
λ/2 at 633nm
Surface Irregularity
(Peak to Valley)
λ/2 at 633nm
Clear Aperture >Ø10.16 mm (Ø1/2" Lenses)
>Ø20.32 mm (Ø1" Lenses)
Design Wavelength 10.6 μm





Silicon properties:

Chemical Formula
Si
Molecular Weight
28.09
Crystal Class
Cubic
Lattice Constant, Å
5.43
Density, g/cm3 at 293 K
2.329
Dielectric Constant for 9.37 x 109 Hz
13
Melting Point, K
1690
Thermal Conductivity, W/(m K)
at 125K
at 313K
at 400K


598.6
163
105.1
Thermal Expansion, 1/K
at 75K
at 293K
at 1400K


-0.5 x 10-6
2.6 x 10-6
4.6 x 10-6
Specific Heat, cal/(g K)
at 298K
at 1800K


0.18
0.253
Debye Temperature, K
640
Bandgap, eV
1.1
Solubility in water
None
Knoop Hardness, kg/mm2
1100
Mohs Hardness
7
Young's Modulus, GPa
130.91
Shear Modulus, GPa
79.92
Bulk Modulus, GPa
101.97
Poisson's Ratio
0.28




Infrared Elements Selection Guide

Antireflective Infrared Window , 3-5um Coated Infrared Flame Detector Silicon Windows 3

Procedure

Antireflective Infrared Window , 3-5um Coated Infrared Flame Detector Silicon Windows 4



What's the way of shipping?
We accept DHL, Fedex, TNT, UPS, SF, EMS etc. If you have your own express account, it's great.



How to pay?

(1) T/T, PayPal, West Union,etc

(2) Bank Fee: West Union-USD30.00(≤USD3000.00),

T/T-USD20.00+, PayPal-5%. Please consult the local bank.


What's the deliver time?
For inventory: the delivery time is around 5 workdays.

Customized products: the delivery time is 10 to 30 workdays. According to the quantity and precision.

Can I customize the products based on my need?
Yes, we can customize the material, specifications and optical coating for your optical components based on your needs. OEM is available.
