Infrared Flame Detector Sapphire Optical Windows High hardness

Basic Information
Place of Origin: Wuhan,China
Brand Name: Wuhan Siwer Optics
Minimum Order Quantity: 5 pieces
Price: 20-98USD/piece
Packaging Details: 1.Tissue paper. 2.Plastic foam packaging film. 3.Hard carton box with quakeproof filler
Delivery Time: 3-5 weeks
Payment Terms: T/T, Western Union
Supply Ability: 1000 pieces/month
Detail Information
Material: Sapphire(Al2O3) Size Tolerance: +/-0.1mm
Chamfer: 0.2-0.5mm Surface Quality: 60/40
Surface Flatness: Lambda/4 In 25.4mm Parallelism: 0.01mm
Standard Coating: Uncoated Or Customized Size Range: 3-200mm
Usage: Infrared Flame Detector
High Light:

optical window


infrared system protectd window

Product Description

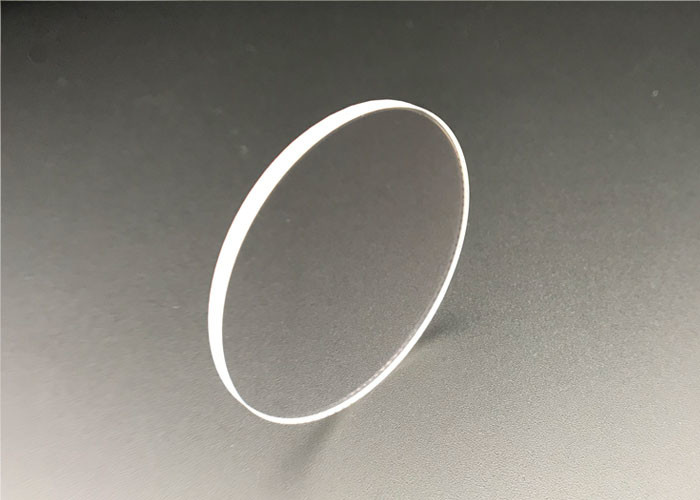

Infrared imaging system Sapphire protected windows

Features Extreme Surface Hardness Chemical Resistance
Transmits Wavelengths Ranging From UV to Mid-Infrared
Thinner and Stronger than Standard Glass Windows

Sapphire Windows are manufactured from single crystal sapphire, making them ideal for demanding applications (such as laser systems) because of their extreme surface hardness, high thermal conductivity, high dielectric constant and resistance to common chemical acids and alkalis. Sapphire is the second hardest crystal next to diamonds and, because of their structural strength, sapphire windows can be made much thinner than other common dielectric windows with improved transmittance. Chemically, sapphire is single crystal aluminum oxide (Al2O3) and is useful in a transmission range from 0.2 - 5.5μm.

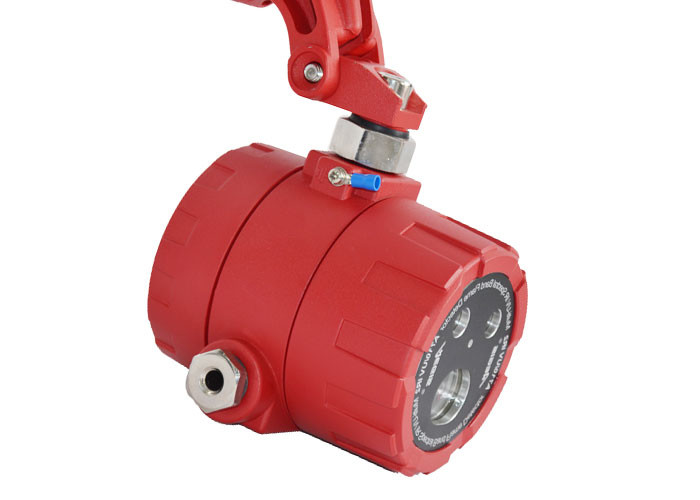

Combining the advantages of sapphire materials, sapphire window is very suitable for the protection window of flame detector.

Our sapphire window is made by high-speed polishing, double-sided polishing and low-speed polishing. It has excellent optical properties. We can accept sample customization or mass production. If you have any questions, please contact our sales department.


Infrared Flame Detector Sapphire Optical Windows High hardness 0Infrared Flame Detector Sapphire Optical Windows High hardness 1

Optical Properties of Sapphire Window

Material Sapphire
Diameter Tolerance +0.0/-0.1 mm
Thickness Tolerance ±0.1 mm
Parallelism 1 arc min
Surface Quality 60-40 Scratch-Dig
Surface Flatness
(Plano Side)
λ/2 at 633nm
Surface Irregularity
(Peak to Valley)
λ/2 at 633nm
Clear Aperture 90%



 Infrared Flame Detector Sapphire Optical Windows High hardness 2

Sapphire properties

Transmission Range 0.17 to 5.5 μm
Refractive Index No 1.75449; Ne 1.74663 at 1.06 μm (1)
Reflection Loss 14% at 1.06 μm
Absorption Coefficient 0.3 x 10-3 cm-1 at 2.4 μm (2)
Reststrahlen Peak 13.5 μm
dn/dT 13.1 x 10-6 at 0.546 μm (3)
dn/dμ = 0 1.5 μm
Density 3.97 g/cc
Melting Point 2040°C
Thermal Conductivity 27.21 W m-1 K-1 at 300K
Thermal Expansion 5.6 (para) & 5.0 (perp) x 10-6/K *
Hardness Knoop 2000 with 2000g indenter
Specific Heat Capacity 763 J Kg-1 K-1 at 293K (4)
Dielectric Constant 11.5 (para) 9.4 (perp) at 1MHz
Youngs Modulus (E) 335 GPa
Shear Modulus (G) 148.1 GPa
Bulk Modulus (K) 240 GPa
Elastic Coefficients C11=496 C12=164 C13=115 C33=498 C44=148
Apparent Elastic Limit 300 MPa (45,000 psi)
Poisson Ratio 0.25
Solubility 98 x 10-6 g/100g water
Molecular Weight 101.96
Class/Structure Trigonal (hex), R3c


Sapphire (Al2O3) is one of the hardest minerals and optical materials available for use in the range from UV up to about 5µm. Sapphire is birefringent and if its use is for critical optical application, for example, windows, then the crystal might have to be cut along the zero degree plane, or c-cut. Random cut is usually cut along a plane that is 60° off-axis as the growth in this direction is the easiest to grow. Random cut is anyone that is not the C-Cut angle. Sapphire can fluoresce and that depends upon the concentration of other minerals within the lattice, for example Iron (Fe) or Chromium (Cr). Clear Sapphire might fluoresce orange when illuminated by UV light if impurities are in the crystal. Fluorescent free Sapphire has to be grown from 'pure' feedstock and seed and in an environment that cannot place impurities into the lattice.

Sapphire is grown by various methods from seed samples. Sapphire can be polished to a high standard, but as it is the second hardest mineral on Earth it must be subject to high forces to get the polish. Therefore, windows made from Sapphire must have a thickness to diameter ratio of at least 10:1, that is, greater than 10mm thick for a 100mm diameter disk. Sapphire is inert and resistant to attack from most processing environments, such as hydrofluoric acid. Sapphire has a melting point over 2000°C with a high thermal conductivity makes it suitable for use in harsh environments.

Sapphire is ideal for use as a window where high radiation resistance is required from the UV to about 5µm. It can be used to form doublet lenses with Silicon and Zinc Selenide for the MWIR (3 to 5µm). These optics can be used to, for example, detect missile plumes that emit the 3-5 µm range and shorter, wavelengths. The detection of muzzle flash from a sniper can be 'seen' by use of optics in this MWIR waveband. The detection of snipers is of great importance in, for example, Afghanistan, as many military lives are being lost to snipers. The gun flash from a rifle has a distinct spectral distribution from the hot gases that are emitted. These gasses are, for example, CO and H2 together with CO2, N2 and H2 O that produce distinct emissions in the 3 to 5µm band.

Sapphire is used as a host for various elements, for example titanium (Ti), to produce laser rods for efficient laser systems for R&D laboratories and military uses. This use could be for defensive systems to, for example, dazzle enemy pilots or incoming optically guided weapons.

Knight Optical supply a large range of stock Sapphire Window in both Random and C-Cut options to meet most applications. We offer stock Sapphire Windows in both large and small aperture sizes. Please click the links below. Stock windows can be edged to small diameters or machined to square and rectangular shapes at short notice. Please enquire.
